850XPKG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 850XPKG

850XPKG: Descriptionphone connectors micro plug, rohs; CategoryThe connector; File Size225KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

850XPKG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	850XPKG	-	-	View	Buy Now

850XPKG Overview

phone connectors micro plug, rohs

850XPKG Parametric

Parameter Name	Attribute value
Manufacture	Switchcraf
Product Category	Phone Connectors
Factory Pack Quantity	100

Preview

Download Datasheet

View All

NOTES:

MATERIALS:

TIP AND BODY: BRASS, NICKEL PLATED

CLAMP: BRASS, TIN PLATED

INSULATION: MOLDED THERMOPLASTIC

HANDLE: ANODIZED ALUMINUM

2. ALL DIMENSIONS ARE FOR REFERENCE.

UNLESS OTHERWISE SPECIFIED.

3. THIS PRODUCT IS RoHS COMPLIANT.

PART NUMBER

850X

855X

880X

HANDLE COLOR

BLACK

RED

NATURAL (SILVER)

1.02

0.450

REF

0.097

REF

0.25

REF

0.031

REF

0.13

REF

0.262

REF

0.093

REF

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

0.02

0.005

SIZE

FINISH

WIDTH

SPEC No.

FIRST USED ON

DATE DRAWN

MULT

LBS/M

MATERIAL

SPEC No.

TEMPER

SCALE

6:1

REV

26062

ECO NUMBER

06-28-06

DATE

TJK

APVD

01-23-08

CHKD

TJK

01-23-08

PART No.

APVD

SHEET

REV

REVISIONS

DO NOT SCALE DRAWING

NAME

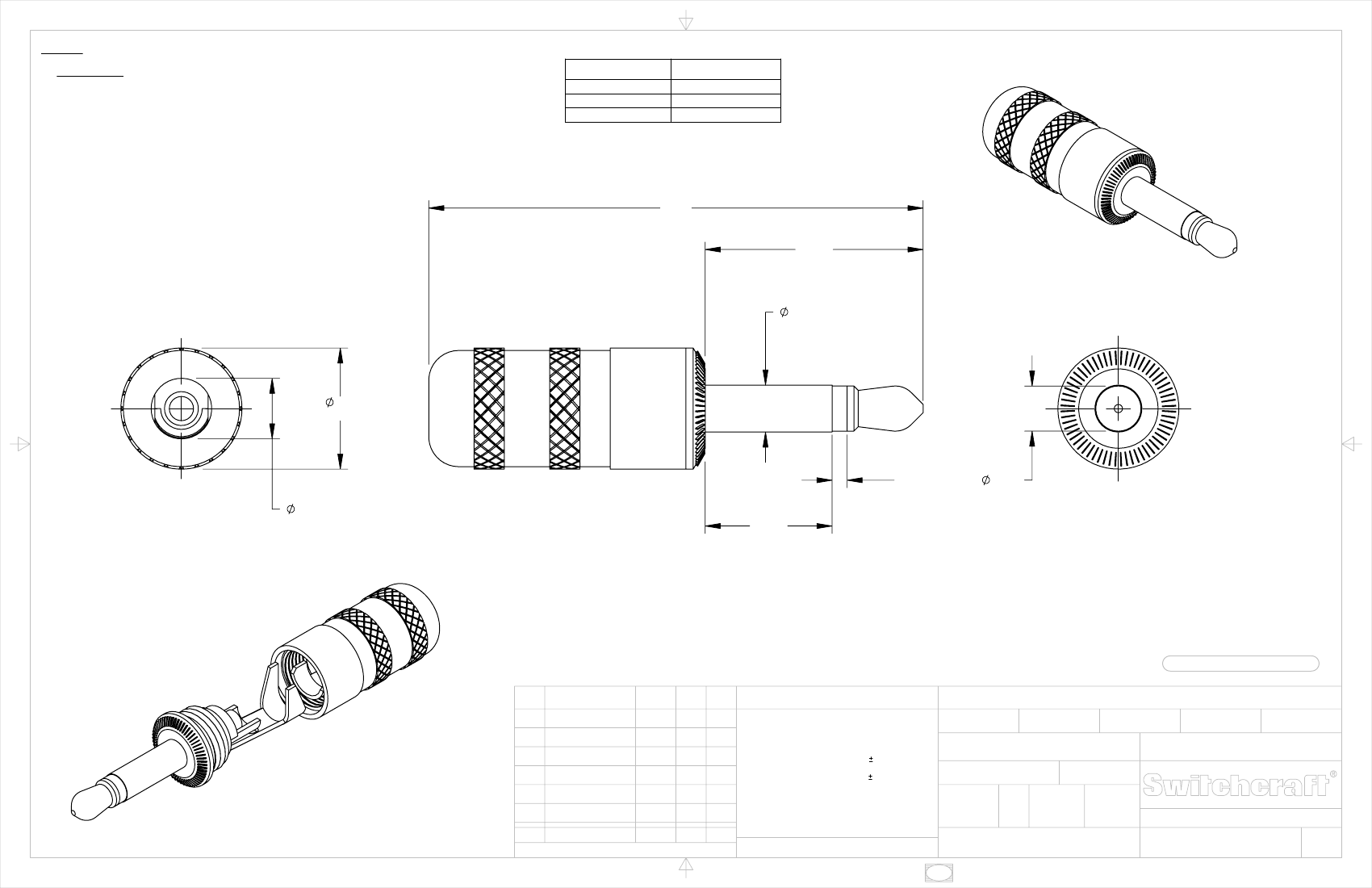

2 CONDUCTOR

MICRO PLUG ASSEMBLY, RoHS

850X, 855X, 880X

SolidWorks CAD File
