4803.132 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 4803.132

4803.132: Descriptionphone connectors plug 6.35mm 3P right angled; CategoryThe connector; File Size223KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

4803.132 Overview

phone connectors plug 6.35mm 3P right angled

4803.132 Parametric

Parameter Name	Attribute value
Manufacture	Schurte
Product Category	Phone Connectors
Factory Pack Quantity	100

Preview

Download Datasheet

View All

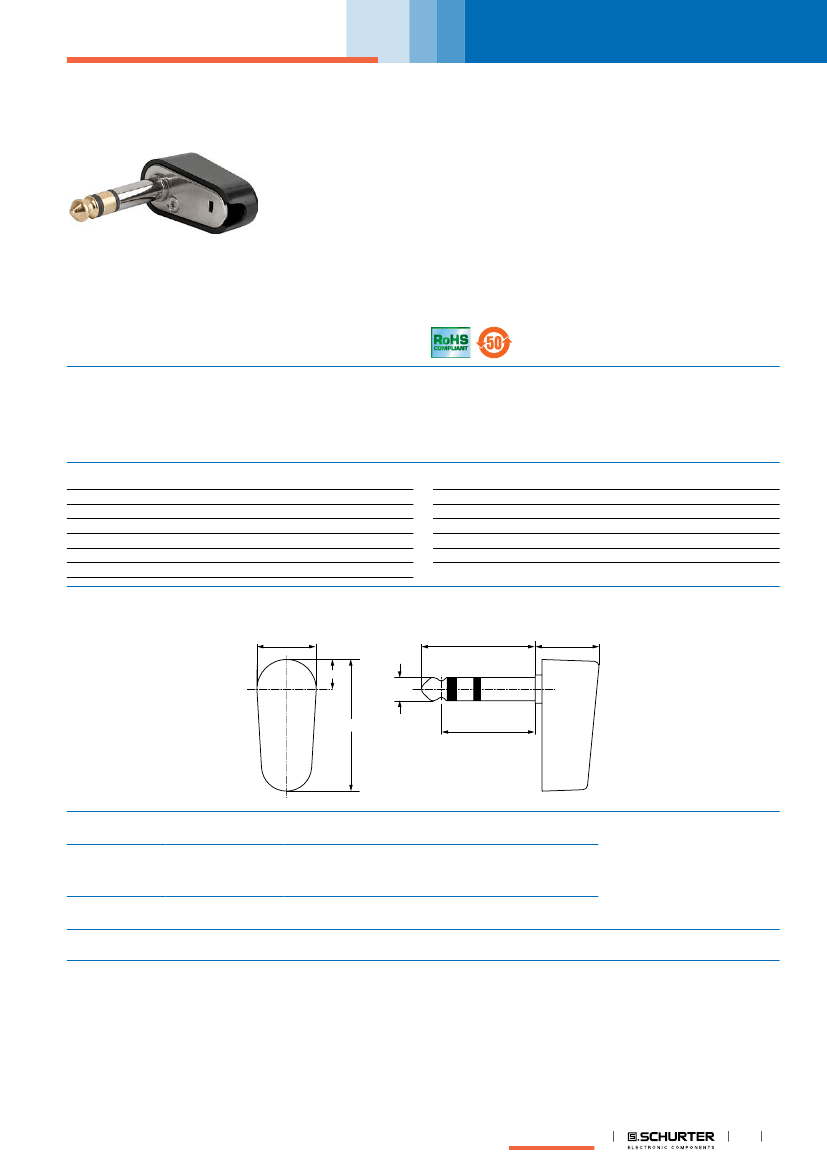

Data and Signal Plug/Socket

www.schurter.com/PG12

Data & Signal, Plug, 6.3 mm, 3-pole, solder terminal, insulated, angled

4803.1320

Description

- Solder terminal:

for cable mounting

- Data and Signal transfer

- Data and Signal Connectors 3-pole, insulated, angled

- Reinforced gold plating for increased insertions

References

Weblinks

Alternative: Housing shielded

4803.1300

pdf-datasheet, html-datasheet, General Product Information, RoHS,

CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-

Stock-Check, Distributor-Stock-Check

Technical Data

Diameter

Number of Poles

Ratings DC

Ratings AC

Dielectric Strength

Insulation Resistance

6.3 mm

3-pole

2 A / 12 VDC

2 A / 12 VAC

1000 VDC

> 10000 MΩ␣ @ 500 VDC

Allowable Operation Temp.

Terminal

Housing

Style

Lifetime

-20 °C to 70 °C

solder terminal

insulated

angled

10000 Insertions

Dimensions

15.7

30.7

16.6

8.0

Ø 6.3

35.3

25.3

All Variants

Product group

Data and Signal Plug/

Sockets

Diameter [mm]

6.3

Number of Poles

3-pole

Terminal

solder terminal

Order Number

4803.1320

Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

Packaging unit

100 Pcs

Appliance inlet
