4803.232

Description
phone connectors socket 6.35mm 3P screened pcb
CategoryThe connector
File Size286KB,2 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Download Datasheet Parametric View All

4803.232 Overview

phone connectors socket 6.35mm 3P screened pcb

4803.232 Parametric

Parameter NameAttribute value
ManufactureSchurte
Product CategoryPhone Connectors
Factory Pack Quantity100
Data and Signal Plug/Socket
www.schurter.com/PG12

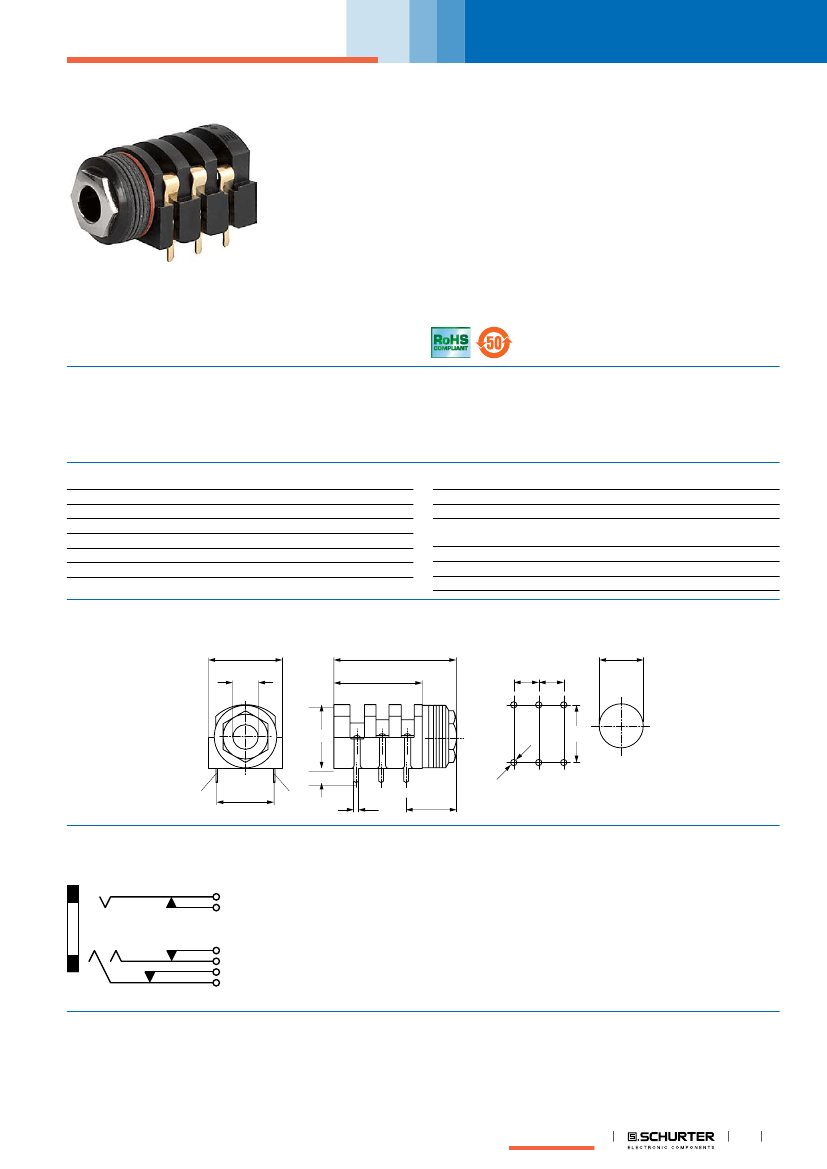

Daten & Signal, Socket, 6.3 mm, 3-pole, solder terminals for PCB, shielded
4803.2320
Description
- PCB Mounting:
Screw-on mounting, from rear-side
- Data and Signal transfer
- Data and Signal Connectors 3-pole, shielded, straight
- Reinforced gold plating for increased insertions
References
Weblinks
Alternative: Housing insulated
4803.2330
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-
Stock-Check, Distributor-Stock-Check
Technical Data
Diameter
Number of Poles
Ratings DC
Ratings AC
Dielectric Strength
Insulation Resistance
6.3 mm
3-pole
2 A / 12 VDC
2 A / 12 VAC
1000 VDC
> 10000 MΩ␣ @ 500 VDC
Allowable Operation Temp.
Terminal
Mounting
Housing
Style
Lifetime
-20 °C to 70 °C
PCB terminals
Screw-on mounting
wall thickness max. 5.0 mm
screened
straight
10000 Insertions
Dimensions
18.8
Ø
6.5
31.2
22.5
6.4
6.4
Ø
11.2
16.3
14.7
3.6
F
14.7
S
3
1.2
2
1
12.8
Ø
1.6
Diagrams
S2
F2
F3
S3
F1
S1
Appliance inlet
1
