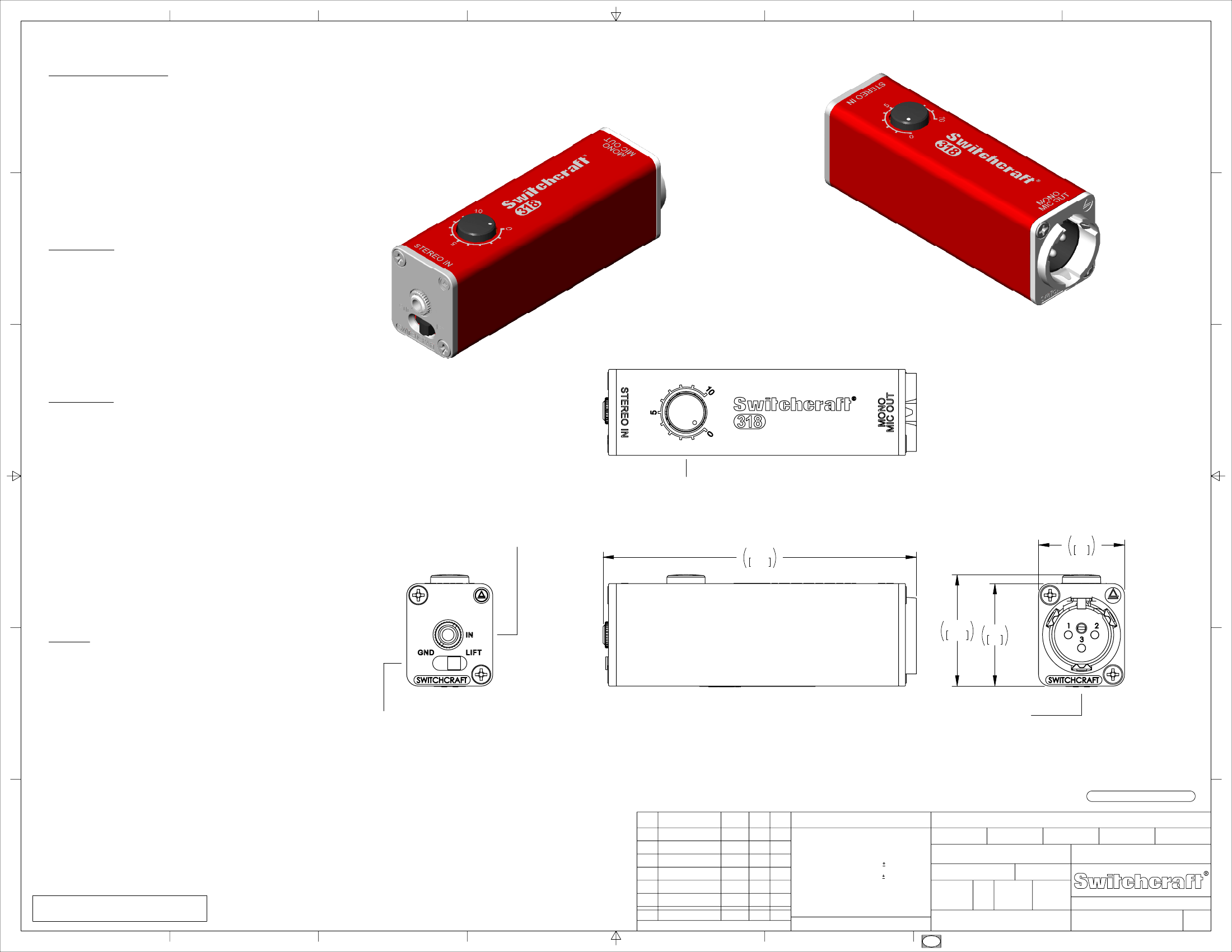

#318 MINI AUDIOSTIX:
F
The Switchcraft
®
#318
Mini AudioStix
is used to connect
devices such as laptops and MP3 players to house
sound systems in conference rooms and auditoriums.
The 3.5mm (1/8”
Mini
) stereo input is converted to a
single mono XLR output. Transformer isolation provides
immunity from hum & buzz caused by ground loops and
RF interference.
Additional features include a volume control for quick
level changes and a ground lift switch for eliminating
noise issues common with consumer audio devices.
F
E
FEATURES:
•
•
•
•
•
•
•
•
•
•
3.5mm (1/8”
Mini
) Stereo Input
Balanced, Mono, Mic-Level XLR Output
Volume Control
Ground Lift Switch
All Metal Housing
Transformer Isolation
Passive, No Power Required
Output Level: -23dB (Mic Level)
Frequency Response: 20Hz - 20kHz (+/-3dB)
Made in Chicago, USA
E
D
CONTROLS:
INPUT - 3.5mm (1/8"):
Accepts unbalanced stereo signals from headphone
outputs and line sources such as laptops and
MP3/CD players.
OUTPUT - Male XLR:
Combines the left and right stereo input into a
mono, transformer isolated, balanced mic level
output.
VOLUME CONTROL (Knob):
Use to reduce output signal to desired level.
3.5mm (1/8")
STEREO INPUT
3.73
94.7
VOLUME
CONTROL
KNOB
D
C
LIFT/GND (Slide Switch):
Ground lift switch. Disconnects ground (pin-1)
connection between input and isolated output XLR.
Use to break ground loops to further reduce hum &
buzz.
NOTES:
1.
2.
3.
XLR output is wired pin-1 ground,
pin-2 hot, and pin-3 cold.
Housing is red anodized aluminum.
This product is RoHS compliant.
GROUND LIFT
SLIDE SWITCH
1.02
26
C
1.33
33.7
1.22
31
B
MALE XLR
MONO OUTPUT
B
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
SIZE
FINISH
*
WIDTH
A
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
*
*
*
*
MULT
*
LBS/M
MATERIAL
SPEC No.
*
TEMPER
SPEC No.
FIRST USED ON
DATE DRAWN
BY
SCALE
*
*
*
A
CHKD
1:1
PRELIMINARY
8
7
6
5
*
REV
*
ECO NUMBER
*
DATE
*
BY
*
APVD
11-17-11 BHM
REVISIONS
DO NOT SCALE DRAWING
NAME
MINI AUDIOSTIX
3.5MM TO XLR INTERFACE
*
*
APVD
*
*
SHEET
PART No.
1
OF
1
318
4
0A
REV
SolidWorks CAD File
C
