M366TCN20.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 20MHz Nom, LEADLESS PACKAGE-4; CategoryPassive components oscillator; File Size301KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M366TCN20.0000MHZ Overview

HCMOS Output Clock Oscillator, 20MHz Nom, LEADLESS PACKAGE-4

M366TCN20.0000MHZ Parametric

Parameter Name	Attribute value
Objectid	145207513028
package instruction	DILCC4,.2,200
Reach Compliance Code	unknown
YTEOL	3
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.9mm
longest rise time	6 ns
Maximum slew rate	25 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

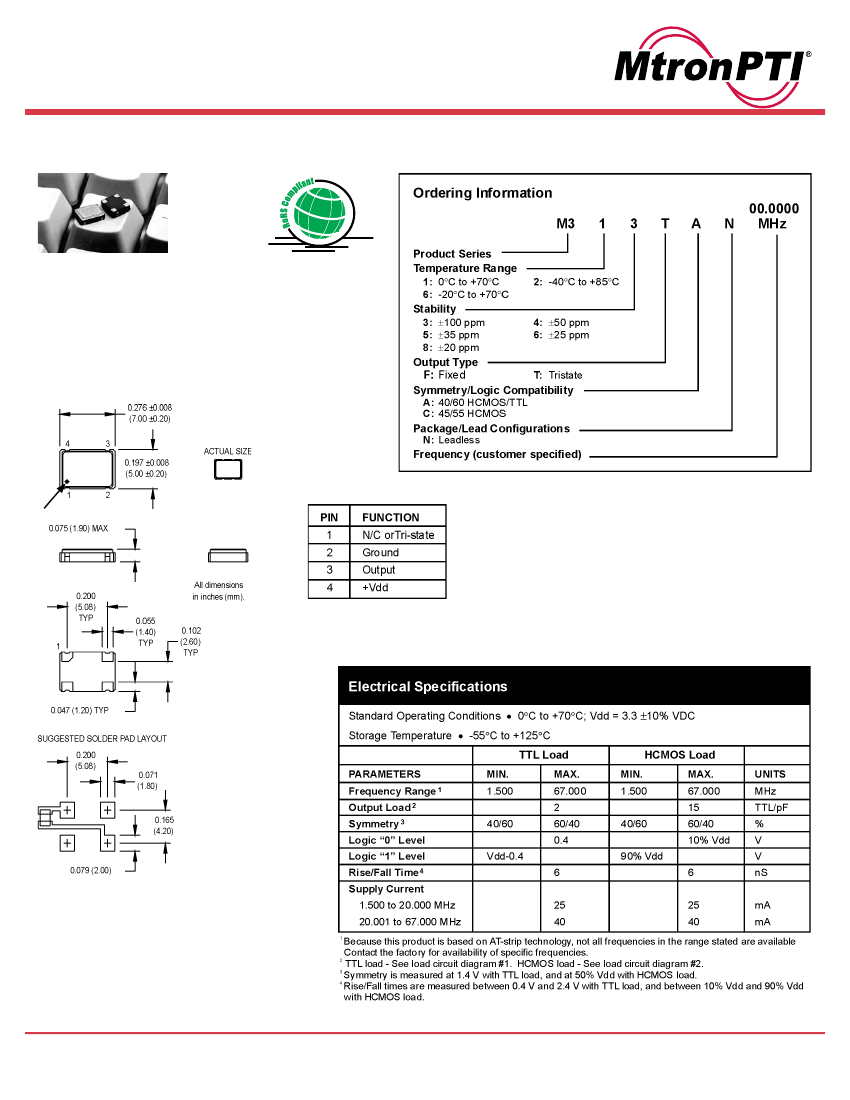

M3 Series

5x7 mm, 3.3 Volt, HCMOS/TTL, Surface Mount Oscillator

THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.

PLEASE REFER TO THE M2 PRODUCT SERIES.

•

AT-strip crystal in a miniature ceramic

surface mount package

TTL and HCMOS compatible

Tri-state output is optional

DENOTES PIN 1

Tri-state Control Logic

Pin 1 high or floating: clock signal output.

Pin 1 low: output disabled to high impedance.

NOTE:

A capacitor of value 0.01

µF or greater between Vdd and

Ground is recommended.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 03-02-07
