CL21C820JCCANNB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> CL21C820JCCANNB

Preview

CL21C820JCCANNB: DescriptionCeramic Capacitor, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000082uF, 0805,; CategoryPassive components capacitor; File Size195KB，11 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL21C820JCCANNB Overview

Ceramic Capacitor, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000082uF, 0805,

CL21C820JCCANNB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	820300295
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.9
capacitance	0.000082 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.85 mm
JESD-609 code	e3
length	2 mm
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
series	CL(MED HIGH VOLTAGE)
size code	0805
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm

CL21C820JCCANNB Preview

Medium-High Voltage

Capacitors

Feature

•Highly

reliable performance

•Operating

at high voltage level

•Wide

voltage level: from 100V to 3000V

•High

withstanding voltage

•Tape

& reel surface mount assembly

Part Numbering

System

Application

•Switching

Power Circuit(SMPS)

•Lighting

Ballast, LCD back lighting inverter

•DC-DC

converter input filter, snubber circuit

•Phone,

Fax, Modem

•Network(IEEE802.3)

For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification.

General

Capacitors

High Capacitance

Capacitors

Super Small Size

Capacitors

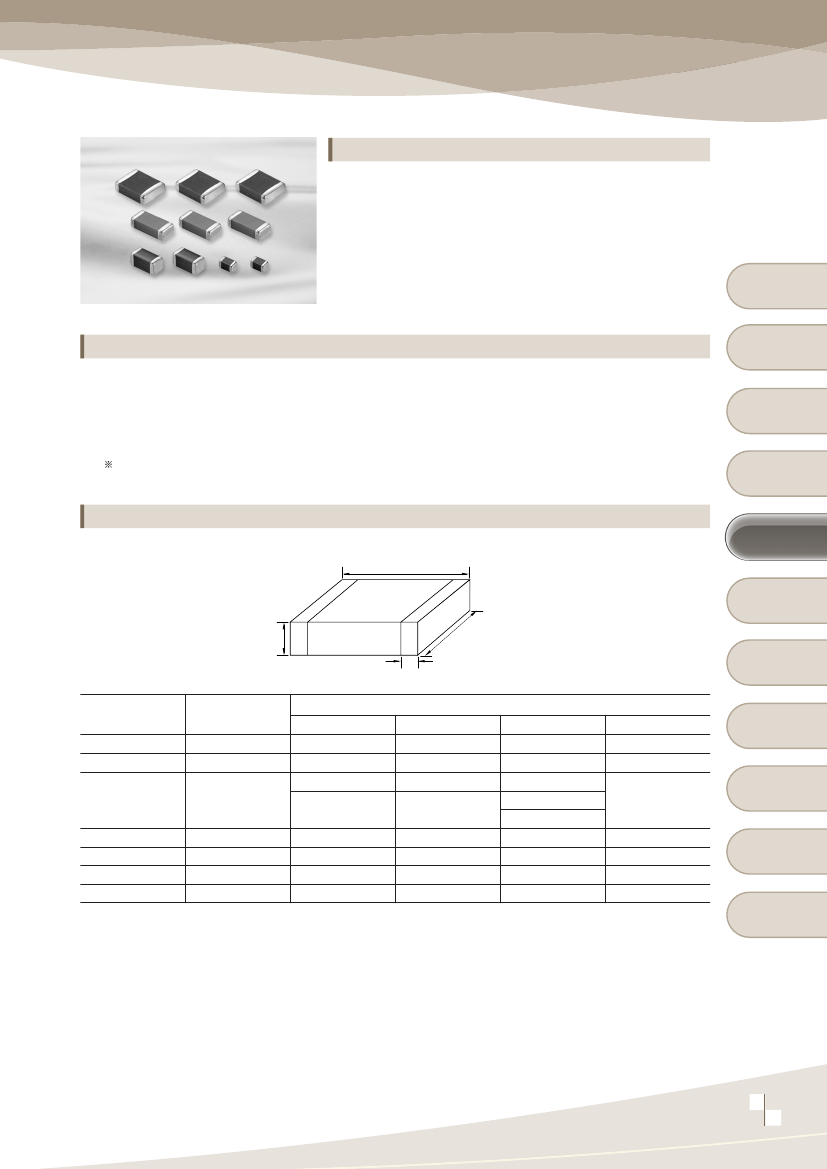

Structure and Dimensions

L

Medium-High

Voltage Capacitors

Array Type

Capacitors

T

BW

W

Low ESL

Capacitors

Dimension(mm)

Code

10

21

31

32

42

43

55

EIA

Code

0603

0805

1206

1210

1808

1812

2220

L

1.6±0.1

2.0±0.1

3.2±0.2

3.2±0.15

3.2±0.3

4.5±0.4

5.7±0.4

W

0.8±0.1

1.25±0.1

1.6±0.2

1.6±0.15

2.5±0.2

2.0±0.2

3.2±0.3

5.0±0.4

T

0.8±0.1

1.25±0.1

1.6±0.2

1.25±0.15

0.85±0.15

2.5±0.2

2.0±0.2

2.5±0.2

BW

0.3±0.2

0.5+0.2/-0.3

0.5±0.3

0.6±0.3

0.8±0.3

1.0±0.3

Reliability Test

Condition

Premium Capacitors

for Automotive

Applications

Packaging

Specification

Application Manual

for Surface Mounting

40

41

Medium-High Voltage Capacitors Table (C0G)

Feature

Capacitance

Vr

Size(mm)

(㎊)

(㎋)

330 390 470 560 680 820 1 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 18 22 27 33 47 56 68

0603(1608)

0805(2012)

1206(3216)

100V

1210(3225)

1812(4532)

2220(5750)

0603(1608)

0805(2012)

1206(3216)

200V

1210(3225)

1812(4532)

2220(5750)

0603(1608)

0805(2012)

1206(3216)

250V

1210(3225)

1812(4532)

2220(5750)

1206(3216)

1210(3225)

500V

1812(4532)

2220(5750)

1206(3216)

1210(3225)

630V

1812(4532)

2220(5750)

Medium-High Voltage Capacitors Table (C0G)

Capacitance

Vr

Size(mm)

(㎊)

(㎋)

47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6

1206(3216)

1210(3225)

1KV

1812(4532)

2220(5750)

1206(3216)

1210(3225)

2KV

1808(4520)

1812(4532)

2220(5750)

1808(4520)

3KV

1812(4532)

2220(5750)

Array Type

Capacitors

Medium-High

Voltage Capacitors

Super Small Size

Capacitors

High Capacitance

Capacitors

3.6㎋

General

Capacitors

Part Numbering

System

Low ESL

Capacitors

Reliability Test

Condition

Premium Capacitors

for Automotive

Applications

Packaging

Specification

Application Manual

for Surface Mounting

42

43

Medium-High Voltage Capacitors Table (X7R)

Capacitance (㎋)

Vr(V)

Size(mm)

0603(1608)

0805(2012)

1206(3216)

100V

1210(3225)

1812(4532)

2220(5750)

0805(2012)

1206(3216)

200V

1210(3225)

1812(4532)

2220(5750)

0805(2012)

1206(3216)

250V

1210(3225)

1812(4532)

2220(5750)

350V

1206(3216)

500V

1210(3225)

1812(4532)

2220(5750)

1206(3216)

1210(3225)

630V

1812(4532)

2220(5750)

(Tmax=1.0)

(Tmax (Tmax

=1.25) =1.8)

4.7

10

15

22

33

47

68

100

150

220

330

470

680 1000 1500 2200 4700

Medium-High Voltage Capacitors Table (X7R)

Capacitance (㎋)

Vr(V)

Size(mm)

1206(3216)

1210(3225)

1K

1812(4532)

2220(5750)

1206(3216)

1210(3225)

2KV

1808(4520)

1812(4532)

2220(5750)

3KV

1808(4520)

Super Small Size

Capacitors

High Capacitance

Capacitors

General

Capacitors

Part Numbering

System

1

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

Medium-High

Voltage Capacitors

Array Type

Capacitors

Low ESL

Capacitors

Reliability Test

Condition

Premium Capacitors

for Automotive

Applications

Packaging

Specification

Application Manual

for Surface Mounting

44

45
