Anti-Sulfur Flat Type Array Resistors (RFS, RMS)
Anti-Sulfur Flat Array Resistors (RFS, RMS series)

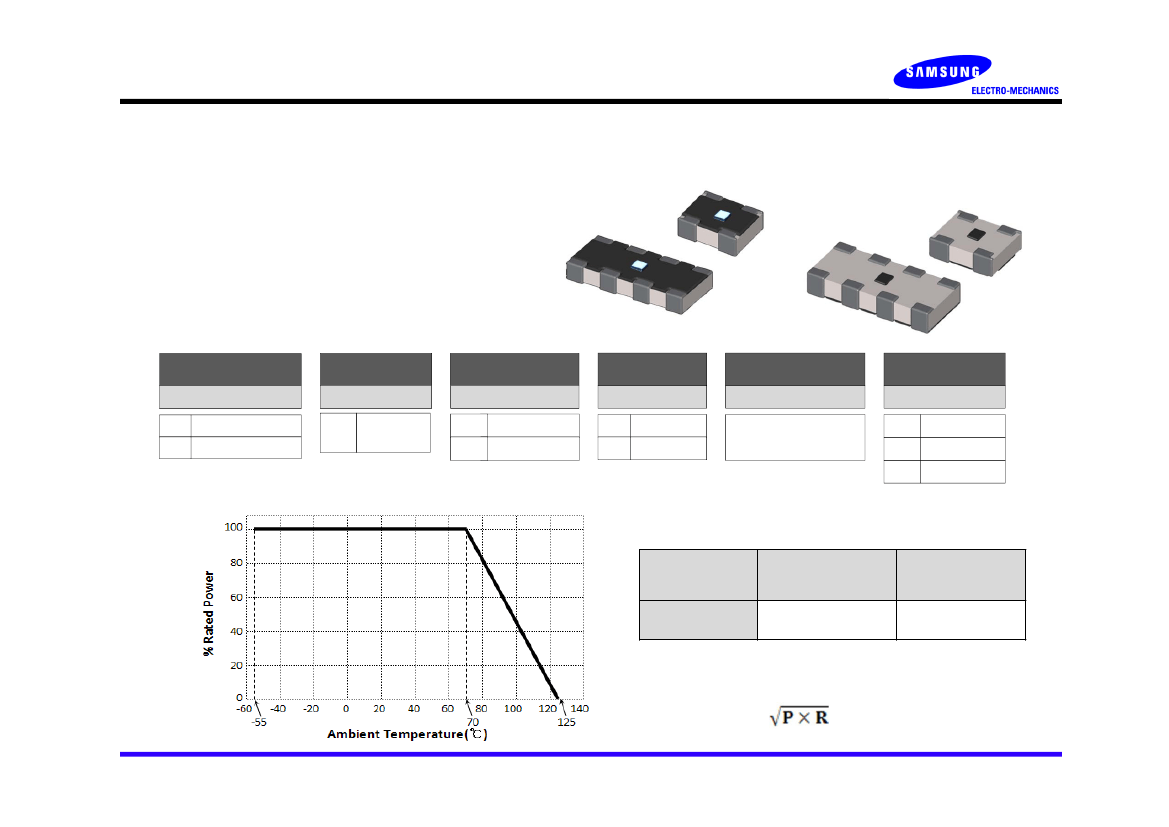

■ Features
●
●
●
●
Reducing SMD surface area (40% reduced)
Reducing SMD cost (75% reduced)
Stable resistance in the H
2
S gas Atmosphere.
RoHS Compliant.
■ Part Number System
RM
Type
RFS
Flat Array
RMS Inverted Array
06
06
Size
0603
(0201)
4P
# of Resistors
2P
4P
2 pieces
4 pieces
F
J
J
Tolerance
±1%
±5%
150
Resistance Value
3-digit coding
(E-24 series)
* Jumper :
‘000’
CS
Packing Type
CS
ES
AS
7” reel
10” reel
13” reel
■
Power Derating Curve
* Jumper :
‘J’
■
Jumper Ratings
TYPE
062P, 064P
Rated
Current (A)
0.5
Max Overload
Current (A)
1
■
Rated Voltage
V=
V : Rated Voltage (V)
P : Rated Power (W)
R : Resistance Value (Ω)
Anti-Sulfur Flat Type Array Resistors (RFS, RMS)
■
Structure and Dimensions
[ Top View ]
[ Side View ]
A
B
[ Bottom View ]
RFS064P
L
W
T
C
1
D
C
2
P
P
A
B
RFS062P
L
W
T
C
1
D
[ Unit : mm ]
Size(mil)
L
W
T
A
B
C
1
C
2
-
D
min 0.1
min 0.1
P
0.50±0.05
0.40±0.05
Unit
Weight
0.3mg
0.5mg
RFS062P(0302)
0.80±0.05 0.60±0.05 0.23±0.10 0.15±0.10 0.20±0.10 0.25±0.10
RFS064P(0502)
1.40±0.05 0.60±0.05 0.23±0.10 0.15±0.10 0.20±0.10 0.25±0.10 0.25±0.10
Anti-Sulfur Flat Type Array Resistors (RFS, RMS)
■
Structure and Dimensions
[ Top View ]
[ Side View ]
A
B
[ Bottom View ]
RMS064P
L
W
T
C
1
D
C
2
P
P
A
B
RMS062P
L
W
T
C
1
D
[ Unit : mm ]
TYPE
L
W
T
A
B
C
1
C
2
-
D
min 0.1
min 0.1
P
0.50±0.05
0.40±0.05
Unit
Weight
0.3mg
0.5mg
RMS062P(0302)
0.80±0.05 0.60±0.05 0.23±0.10 0.15±0.10 0.20±0.10 0.20±0.10
RMS64P(0502)
1.40±0.05 0.60±0.05 0.23±0.10 0.15±0.10 0.20±0.10 0.20±0.10 0.20±0.10
Anti-Sulfur Flat Type Array Resistors (RFS, RMS)
■
Application Characteristics
Type
062P
064P
Size
(inch)
0302
0502
Rated Power
[W]
1/32
1/32
1/10(Package)
Rated Voltage
[V]
Max Working
Tolerance
Voltage
[%]
[V]
12.5
12.5
±1(F)
±2(G)
±5(J)
Resistance
Range
[Ω]
T.C.R
[ppm/℃]
Working
Temp.
[℃]
Moisture
Level
P
R
P : Rated Power(W)
R : Resistance(Ω)
10 ~ 1M
±200
-55 ~ 125
Level 1
•
Please contact our sales representatives or engineers for other specifications
■
Standard Soldering Pad Dimensions
A
A
B
B
: Land Pattern
: Chip Resistor
[ Unit : mm ]
A
A
C
Size(mil)
Dimension
062P
064P
D
C
C
D
C
Reflow Soldering
A
0.3
0.3
B
0.3
0.3
2A + B
0.9
0.9
C
0.2
0.2
D
0.3
0.2
Anti-Sulfur Flat Type Array Resistors (RFS, RMS)
■
Performance Characteristics
Requirements Specification
ITEM
Resistors
Within the specified tolerance
Within the specified T.C.R
ΔR < ±1%+0.1Ω
Immersed over 95%
ΔR < ±1%+0.1Ω
ΔR < ±1%+0.1Ω
ΔR < ±3%+0.1Ω
ΔR < ±3%+0.1Ω
ΔR < ±3%+0.1Ω
ΔR < ±1%+0.1Ω
Max 50mΩ
Max 50mΩ
Max 50mΩ
Max 50mΩ
Max 50mΩ
Max 50mΩ
Jumpers
Max 50mΩ
Max 50mΩ
Max 50mΩ
Test Conditions
(JIS C 5201-1)
JIS C 5201-1 4.5
JIS C 5201-1 4.8
+20℃ → -55℃ / +20℃ → +125℃
JIS C 5201-1 4.13
Rated Voltage×2.5, 5sec
JIS C 5201-1 4.17
Rosin Ethanol (25%WT)
245+5/-0℃, 2±0.5 sec
JIS C 5201-1 4.18
260±5℃, 10±1 sec
JIS C 5201-1 4.19
-55℃ ↔ +125℃, 100 cycle
JIS C 5201-1 4.24
40±2℃, 90~95%RH, 1000
+48
hours
JIS C 5201-1 4.25
Rated Voltage, 70±2℃, 1000
+48
hours
90mins ON, 30mins OFF
JIS C 5201-1 4.25.3
125±2℃, 1000
+48
hours
105±2℃, Dry sulfur , 720
+2
hours
Resistance
Temperature Characteristic
Short time Overload
Solderability
Resistance to Solder Heat
Temperature Cycle
Moisture Resistance
Load Life
High Temp. Exposure
Flower of Sulfur (FOS)
※ The reliability test condition can be replaced by the corresponding accelerated test condition.
