REVISION W
DO NOT
SCALE FROM
THIS PRINT
Pb THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]

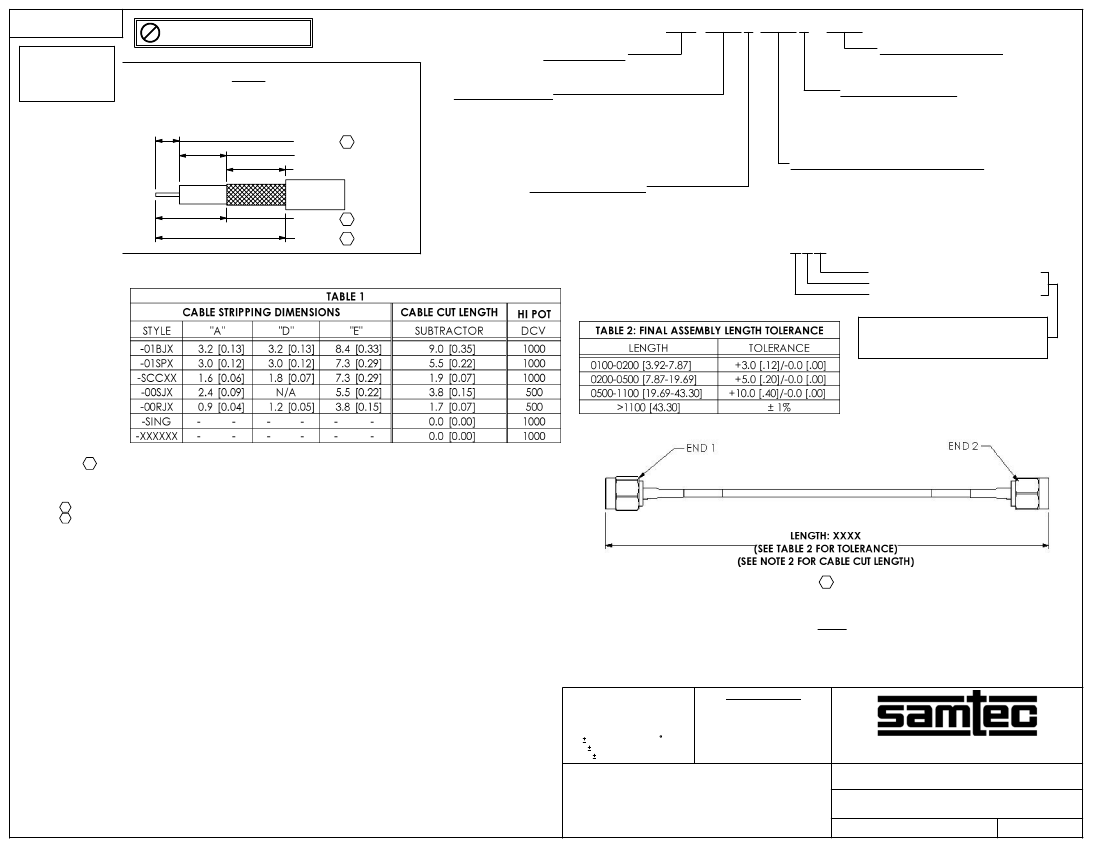

RF25M-XXXXX-XXXXXX-XXXX
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
END 2 CONNECTOR OR PREPARATION
(SEE NOTE 19)
-01BJ: SMA-J-C-X-ST-BH5 (SEE SHEET 2)
-01SP: SMA-P-C-X-ST-CA5 (SEE SHEET 2)
-SCC1: PRB1-P-C-X-ST-CA5 (STD. FERRULE) (SEE SHEET 2)
-SCC2: PRB2-P-C-X-ST-CA5 (KNURLED FERRULE) (SEE SHEET 2)
-00SJ: SMP-J-C-XX-ST-CA5 (SEE SHEET 2)
-00RJ: SMP-J-C-XX-RA-CA5 (SEE SHEET 2)
-SING: SINGLE ENDED (ONE END ONLY,SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-15, 17 & SHEET 2, FIG. 3)
(SEE FIG. 2) "C" FORMAT: X.Xmm
(SEE FIG. 2) "B" FORMAT: X.Xmm
(SEE FIG. 2) "A" FORMAT: X.Xmm
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 12,13,14,15)
"A" mm C
"B" mm
"C" mm
FIG. 2
CABLE CALLOUT
25M: CCA-25M (TEMP-FLEX CABLE)
END 1 CONNECTOR
-01BJ: SMA-J-C-X-ST-BH5 (SEE SHEET 2)
-01SP: SMA-P-C-X-ST-CA5 (SEE SHEET 2)
-SCC1: PRB1-P-C-X-ST-CA5 (STD. FERRULE)(SEE SHEET 2)
-SCC2: PRB2-P-C-X-ST-CA5 (KNURLED FERRULE)(SEE SHEET 2)
-00SJ: SMP-J-C-XX-ST-CA5 (SEE SHEET 2)
-00RJ: SMP-J-C-XX-RA-CA5 (SEE SHEET 2)
END 1 PLATING OPTION
1: GOLD ALL COMPONENTS
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
(SEE SHEET 2 FOR PLATING SPECIFICS)
"D" mm C
"E" mm C
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2)
(SEE TABLE 1 FOR SUBTRACTORS)
C
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
C
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1, THE TEST VOLTAGE FOR THE ASSEMBLY
SHOULD BE SET TO THE END OPTION WITH THE LOWEST TEST VOLTAGE RATING.
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. CABLE LENGTHS LONGER THAN 500 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA
10. MINIMUM BEND RADIUS FOR RG25 = 9.0 [.35]
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
16. NOTE DELETED.
17. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
18. CONNECTORS TO BE ORIENTED ACCORDING TO CO-HD-WI-3048-M.
19. FERRULE AND SPRING ARE FREE FLOATING AND ARE NOT STATIONARY.
C
RF25M-01SPX-01SPX-XXXX SHOWN
FIG 1
c:\enterprisevault\DWG\MISC\MKTG\RF25M-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
5
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
RF25M CABLE ASSEMBLY
RF25M-XXXXX-XXXXXX-XXXX
B. RAY
1/30/2007
SHEET
1
OF
2
BY:
REVISION W

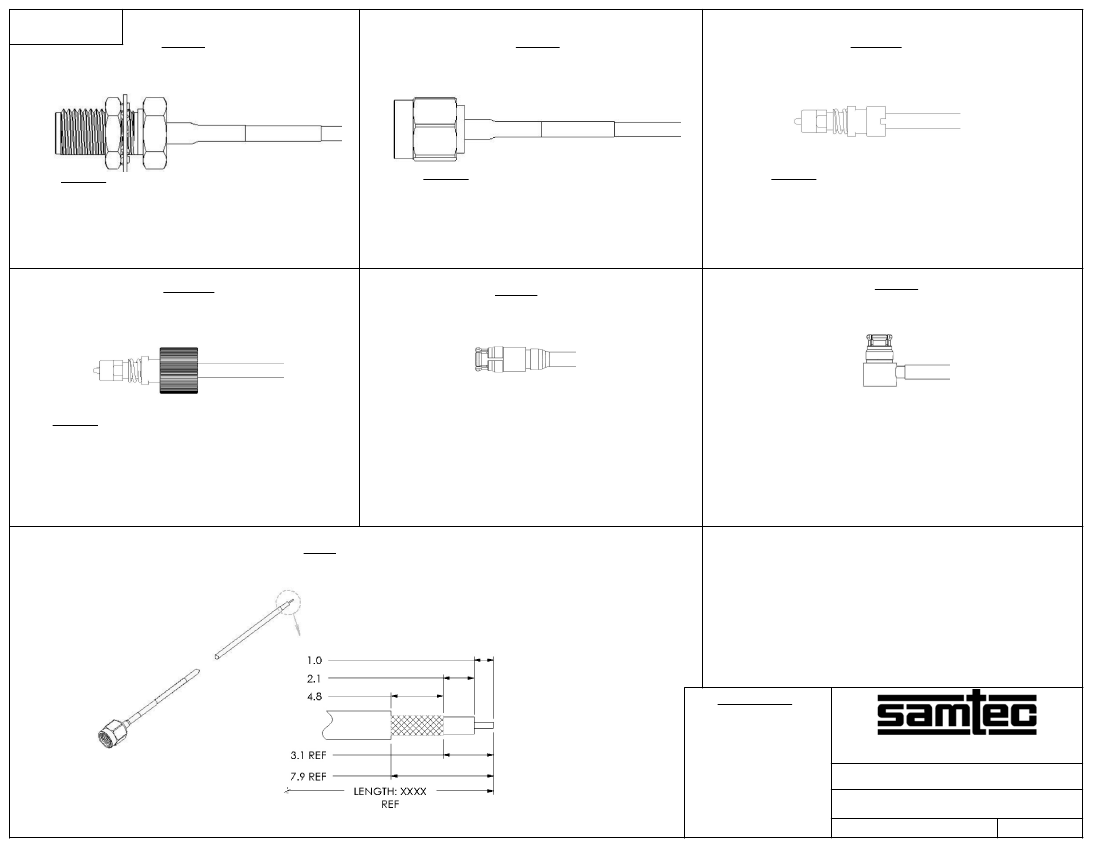

(STRAIGHT BULKHEAD JACK)
(USE DRAWING No.
SMA-J-C-X-ST-BH5
FOR ASSEMBLY INSTRUCTIONS)
-01BJ
(STRAIGHT PLUG)
(USE DRAWING No.
SMA-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-01SP
(ROUND TIP/STD. FERRULE)
(USE DRAWING No.
PRB1-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-SCC1
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-J-C-H-ST-BH5)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-X-ST-BH5
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-P-C-H-ST-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-X-ST-CA5
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
PRB1-P-C-H-ST-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON PRB1-P-C-X-ST-CA5
THAT APPLY MUST BE VERIFIED.
(KNURLED FERRULE)
(USE DRAWING No.
PRB2-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-SCC2
(STRAIGHT JACK)
(USE DRAWING No. SMP-J-C-XX-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-00SJ
(RIGHT ANGLE JACK)
(USE DRAWING No. SMP-J-C-XX-RA-CA5
FOR ASSEMBLY INSTRUCTIONS)
-00RJ
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
PRB2-P-C-H-ST-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON PRB2-P-C-X-ST-CA5
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-GF-ST-CA5)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-HG-ST-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON SMP-J-C-XX-ST-CA5
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-GF-RA-CA5)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-HG-RA-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON SMP-J-C-XX-RA-CA5
THAT APPLY MUST BE VERIFIED.
FIG 3
RF25M-01SPX-102148-XXXX SHOWN
c:\enterprisevault\DWG\MISC\MKTG\RF25M-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF25M CABLE ASSEMBLY
RF25M-XXXXX-XXXXXX-XXXX
1/30/2007
SHEET
2
OF
2
BY:
B. RAY
