50420-8000 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 50420-8000 (Cut Strip)

50420-8000 (Cut Strip): Descriptionheaders & wire housings obd-II term 20-22g F cut strip of 100; CategoryThe connector; File Size34KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50420-8000 (Cut Strip) Overview

headers & wire housings obd-II term 20-22g F cut strip of 100

50420-8000 (Cut Strip) Parametric

Parameter Name	Attribute value
Manufacture	Molex
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	-
Number of Positions	-
Number of Rows	-
Contact Gende	Socket (Female)
Contact Plating	Ti
Housing Material	-
Termination Style	Crim
Mounting Style	-
Mounting Angle	-
Contact Material	Phosphor Bronze
Current Rating	4 A
Latching Type	-
Mating Post Length	-
Row Spacing	-
Factory Pack Quantity	100
Termination Post Length	-
Voltage Rating	30 V

Preview

Download Datasheet

View All

This document was generated on 10/21/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

50420-8000

Active

OBD-II Crimp Terminal, Female, 50420, 4.00mm Pitch

Documents:

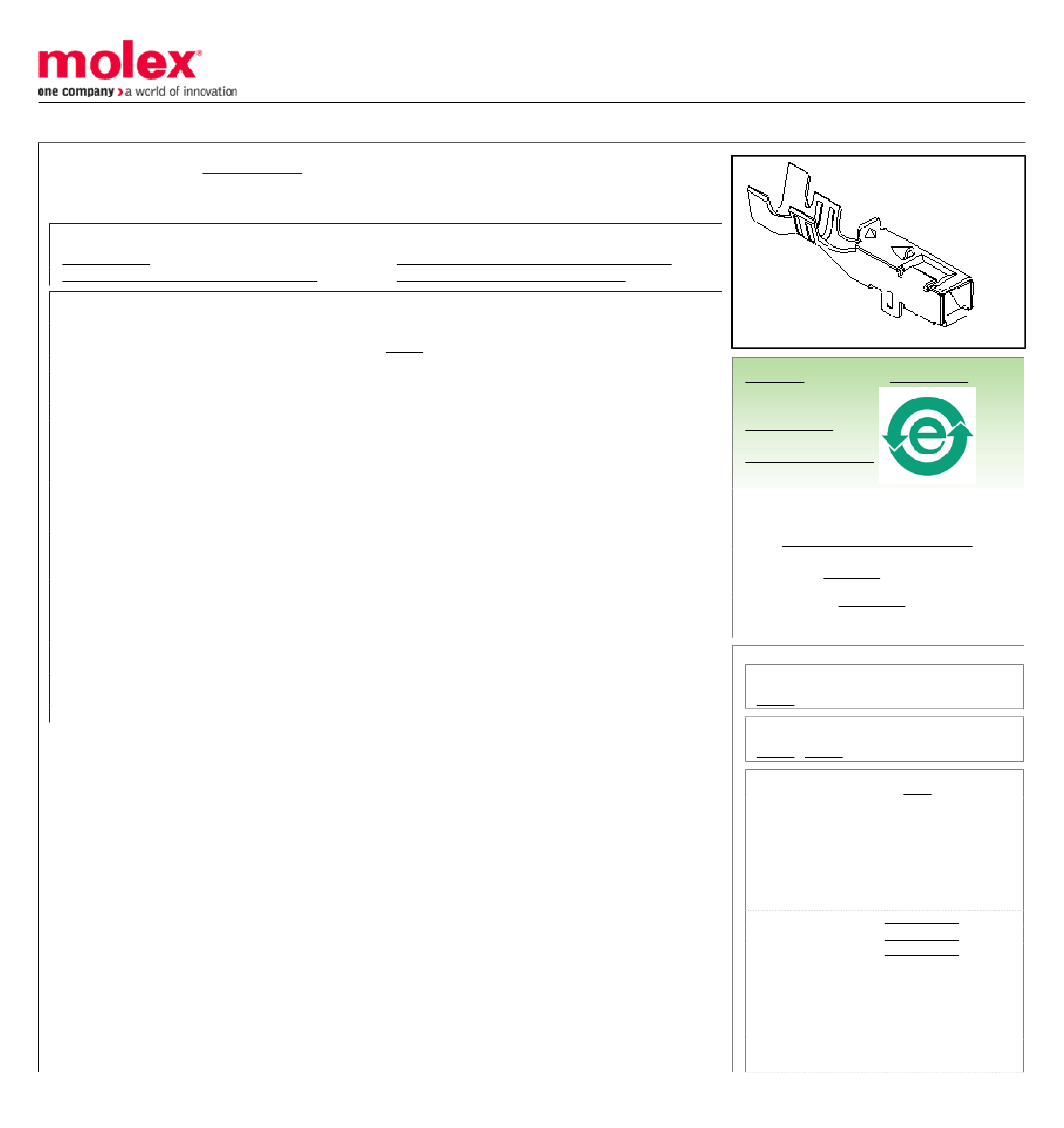

Drawing (PDF)

Product Specification PS-51115-001 (PDF)

Application Specification AS-51115-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Crimp Quality Equipment

Product Name

UPC

Crimp Terminals

50420

Power

Yes

OBD-II

800754370233

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Tin

173.000/mg

Reel

Crimp or Compression

1.60-1.40mm

20, 22

0.50-0.30

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-51115-001

PS-51115-001

SD-50420-8*00

Search Parts in this Series

50420Series

Use With

51115 , 51116

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extraction Tool

0011030043

Hand Crimp Tool

0638119500

FineAdjust™

0639009700

Applicator for OBD

II 4.00mm Wire-to-

Wire Crimp Terminal,

0.30-0.85mm² and

18-22 AWG

Japan

Description

Product #

50420-8000 (Cut Strip) Related Products

	50420-8000 (Cut Strip)	50420-8000 (Mouser Reel)
Description	headers & wire housings obd-II term 20-22g F cut strip of 100	headers & wire housings obd-II term 20-22g F reel of 1000
Manufacture	Molex	Molex
Product Category	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes
Contact Gende	Socket (Female)	Socket (Female)
Contact Plating	Ti	Ti
Termination Style	Crim	Crim
Contact Material	Phosphor Bronze	Phosphor Bronze
Current Rating	4 A	4 A
Factory Pack Quantity	100	1000
Voltage Rating	30 V	30 V
