1744423-1

Description
headers & wire housings EP 2.5 rcpt contact 24-20 awg
CategoryThe connector
File Size185KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

1744423-1 Online Shopping

Suppliers Part Number Price MOQ In stock
1744423-1 - - View Buy Now

1744423-1 Overview

headers & wire housings EP 2.5 rcpt contact 24-20 awg

1744423-1 Parametric

Parameter NameAttribute value
ManufactureTE Connectivity
Product CategoryHeaders & Wire Housings
RoHSYes
Contact GendeSocket (Female)
Contact PlatingTi
Contact MaterialPhosphor Bronze
Current Rating3 A
Operating Temperature Range- 55 C to + 105 C
Voltage Rating250 V
Wire Gauge24-20
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
2011
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
2011
B
REVISED PER ECR-14-000588
29JAN2014
NK
TM
7.50
D
1
2
3.
4.
5.
MATERIAL: PHOSPHOR BRONZE
FINISH: PRE-TIN
DESIGNED FOR USE IN HOUSINGS 1969442-( ) OR 2110992-( ).
CONTACTS COATED WITH ANTI-FRETTING LUBRICANT.
CONTACT IS RoHS COMPLIANT.
WIRE RANGE: 0.20-0.56mm2 [24-20 AWG] STRANDED.
INSULATION RANGE: 1.3-1.9 [.051-.075]
THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING
D
10.6
6.
7.
1.30
C
8.
6.50
C
1.50
1.35
B
2.90
1.97
1.20
+0.20
-0.10
B
2.38
1.87
2.15
1.80
SECTION
A-A
SECTION
B-B
SECTION
C-C
THIS DRAWING IS A CONTROLLED DOCUMENT.
1744423-1
27DEC2011
KIRAN HOLAL
CHK
27DEC2011
SAMUEL MACE
APVD
27DEC2011
SAMUEL MACE
DWN
PRODUCT SPEC
APPLICATION SPEC
PART NUMBER
TE Connectivity
NAME
A
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.3
-
-
108-2418
114-13315
SIZE
CONTACT,ECONOMY POWER 2.5
RECEPTACLE
CAGE CODE
DRAWING NO
RESTRICTED TO
1 $
-
1471-9 (3/13)
1
-
-
WEIGHT
2
-

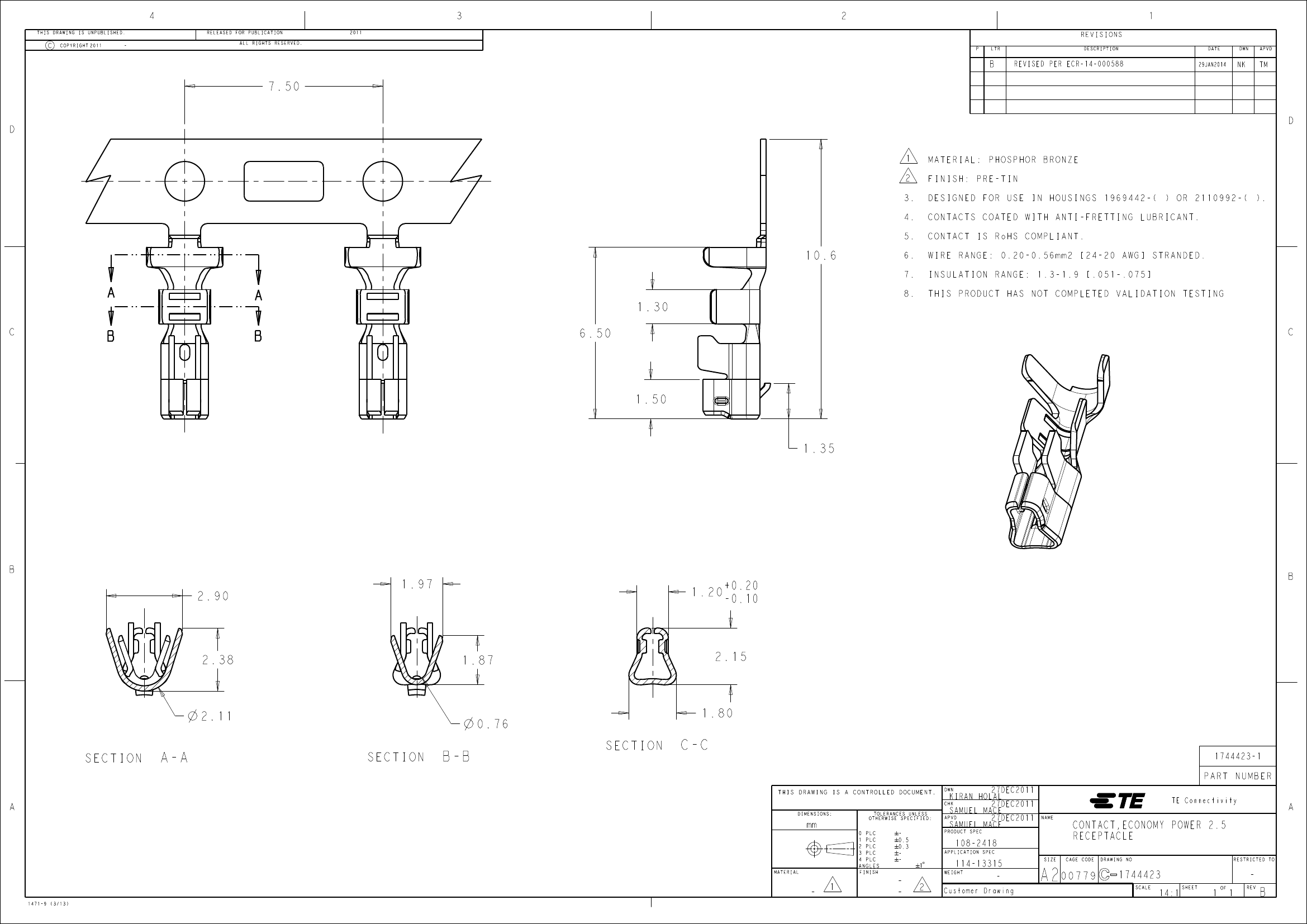

Customer Drawing
A2
00779
1744423
SCALE
14:1
SHEET
1
OF
1
REV
-
B
