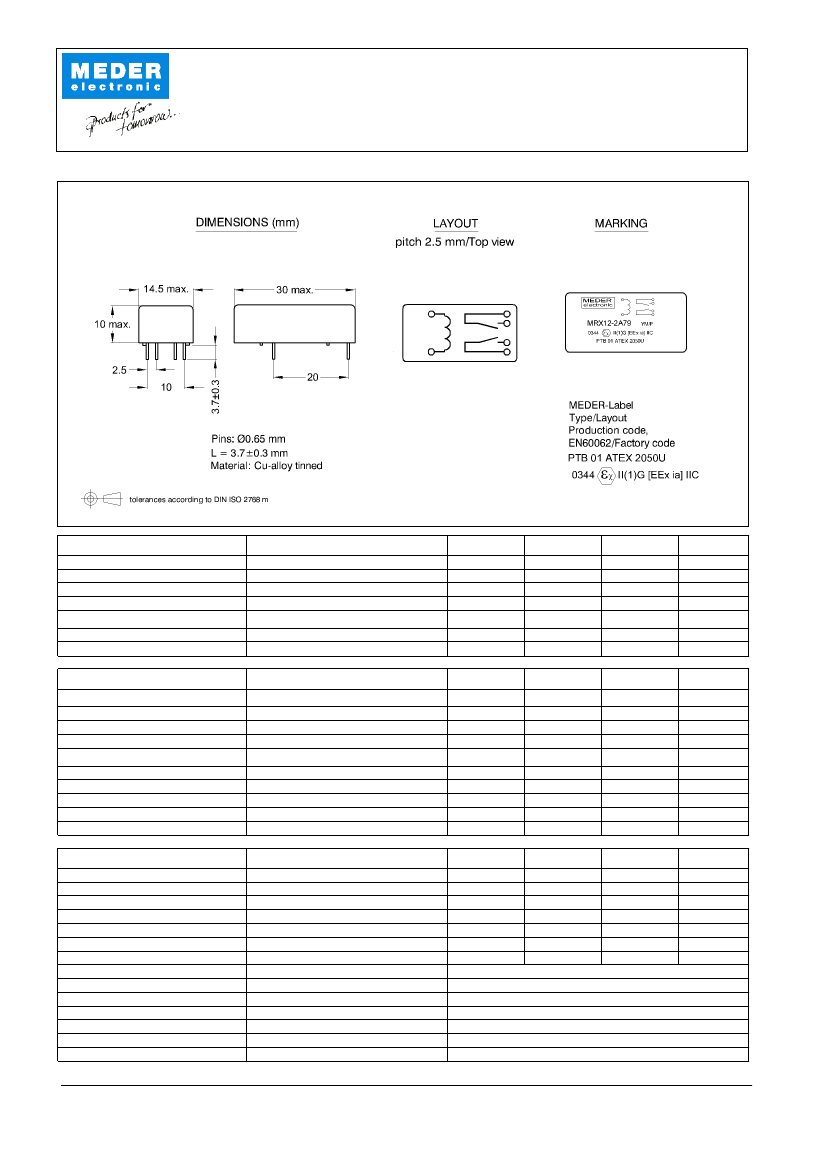

8712279200: DescriptionDry Reed Relay, DPST, Momentary, 0.013A (Coil), 12VDC (Coil), 160mW (Coil), 0.5A (Contact), 250VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size85KB，1 Pages; ManufacturerStandex

Download Datasheet Parametric View All

8712279200 Overview

Dry Reed Relay, DPST, Momentary, 0.013A (Coil), 12VDC (Coil), 160mW (Coil), 0.5A (Contact), 250VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

8712279200 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknow
ECCN code	EAR99
body width	14.5 mm
body height	10 mm
Body length or diameter	30 mm
Maximum coil current (DC)	0.013 A
Coil operating voltage (DC)	9 V
Coil power	160 mW
Coil release voltage (DC)	2 V
Coil resistance	890 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@250VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	8712279200
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
physical size	30mm x 14.5mm x 10mm
Relay action	MOMENTARY
Relay function	DPST
Relay type	DRY REED RELAY
release time	0.2 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1
