2410160002: DescriptionElectric Fuse, Medium Time Lag Blow, 0.16A, 250VAC, 80A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size100KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

2410160002 Overview

Electric Fuse, Medium Time Lag Blow, 0.16A, 250VAC, 80A (IR), Inline/holder,

2410160002 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	MEDIUM TIME LAG
body height	25 mm
Body length or diameter	5.2 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	5.2mm x 25mm
Pre-discharge time - minutes	5 ms
Rated breaking capacity	80 A
Rated current	0.16 A
Rated voltage	250 V
Rated voltage (AC)	250 V
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

INIATURE

M

INIATURE

F

USES

5x25mm/

5x25mm No. 241

Indicator,

Indicator, 250V

T ime-Current

Standard

None

Medium Time Lag (M)

Specifications

Packaging

002: Pack (100 pcs.)

Tube:

End Caps:

Ceramic

Nickel-plated brass

Characteristic

Materials

Approvals

Temperature

Operating Temperature

Climatic Category

Stock Conditions

-25ºC to +70ºC (consider de-rating)

-25ºC/+70ºC/21 days (EN 60068-1..3)

+10ºC to +60ºC

relative humidity

≤

75% yearly average,

without dew

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60Hz at 0.75mm amplitude

60 - 2000Hz at 10g acceleration

, M, Current Rating, 250V

Dimensions (mm)

Ausf. / type: 80mA ... 1,25A

Ø5,2

+0,1

- 0,2

Vibration Resistance

25

±0,5

Kappe mit Kennmelder

cap with indicator

Ausf. / type: 1,6A ... 6,3A

Marking

Ø5,2

+0,1

- 0,2

25

±0,5

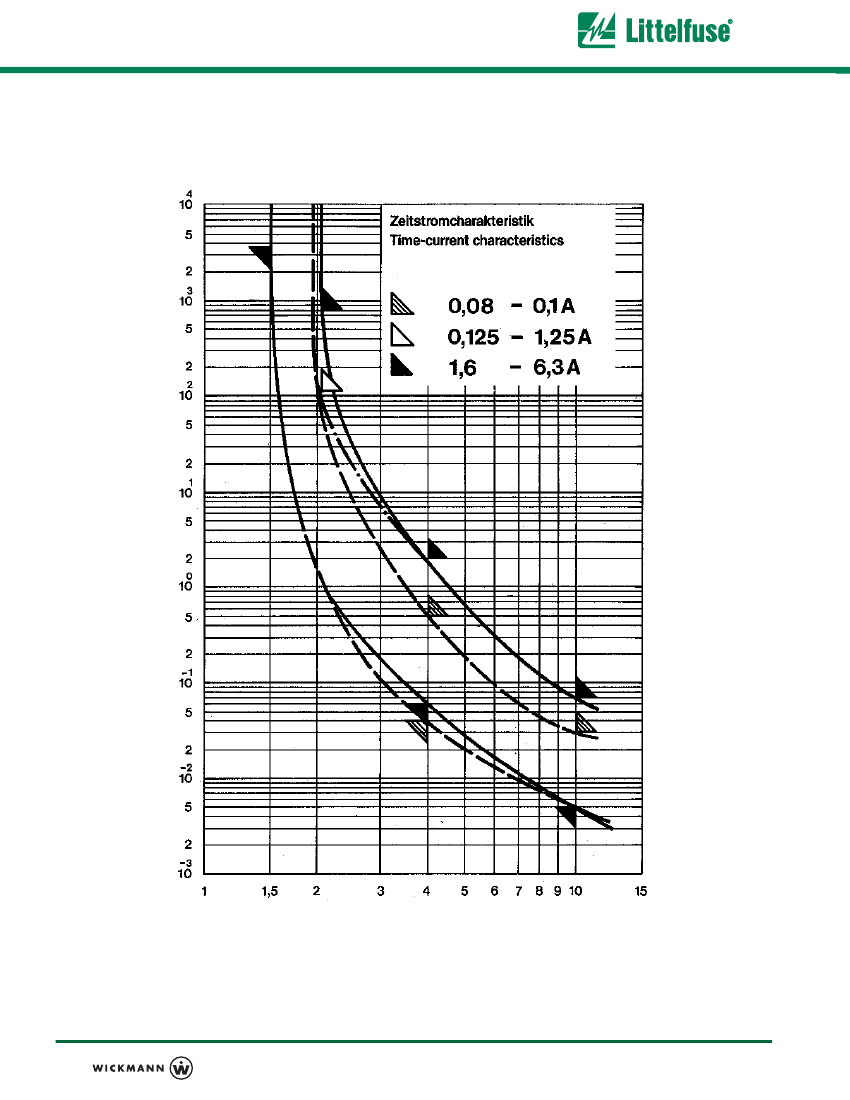

Limits for Pre-arcing Time

Rated Current

80mA ... 100mA

125mA ... 1.25A

1.6A ... 10A

1.5 x I

Rated

>1h

2.1 x I

Rated

2.75 x I

Rated

<2min

<30min

-

4 x I

Rated

10 x I

Rated

5ms ... 30ms

5ms ... 70ms

40ms ... 500ms

60ms ... 2s

80%

Permissible continuous operating current is

≤

80% at ambient temperature of 23ºC (73.4ºF).

Rated

Amp

Voltage

Breaking Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x I

Rated

1.5 x I

Rated

10 x I

Rated

2

max. (mV)

max. (W)

min. (A

2

s)

80mA

100mA

125mA

160mA

200mA

250mA

315mA

400mA

500mA

630mA

800mA

4

1A

4

1.25A

4

1.6A

1

2A

1

2.5A

1

3.15A

1

4A

1

6.3A

1

8A

1 2

10A

1 2

1

color of indicator

0080

0100

0125

0160

0200

0250

0315

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1630

1800

2100

2

250V

80A @ 250 V AC

50Hz

cos

ϕ

= 1.0

1500A @ 250 V AC

50Hz

cos

ϕ

= 0.7

520

500

400

375

410

280

250

220

400

350

315

480

360

300

250

180

160

150

on request

0.015

0.030

0.053

0.11

0.23

0.38

0.60

0.75

1.5

2.3

3.0

4.5

6.8

2.3

4.5

7.5

30

34

140

170

260

grey

red

velvet

orange

blue

yellow

black

brown

white

green

grey

red

velvet

orange

blue

yellow

black

brown

green

grey

red

1.6 ... 10A looks like No. 240

not mentioned in the norms operating temperature

≥

10V

3

4

according to DIN 41576, T.2

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

012006

Qty.

Order-

Number

Series

241

Amp Code

Packaging

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

www.littelfuse.com
