XO57CRECNA30M

Description
HCMOS Output Clock Oscillator,
CategoryPassive components    oscillator
File Size81KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

XO57CRECNA30M Overview

HCMOS Output Clock Oscillator,

XO57CRECNA30M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8357798274
Reach Compliance Codeunknown
Factory Lead Time45 weeks
YTEOL6.51
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time10 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Nominal operating frequency30 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load10 TTL, 50 pF
physical size7.0mm x 5.0mm x 1.9mm
longest rise time10 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry40/60 %
Terminal surfaceGold (Au) - with Nickel (Ni) barrier

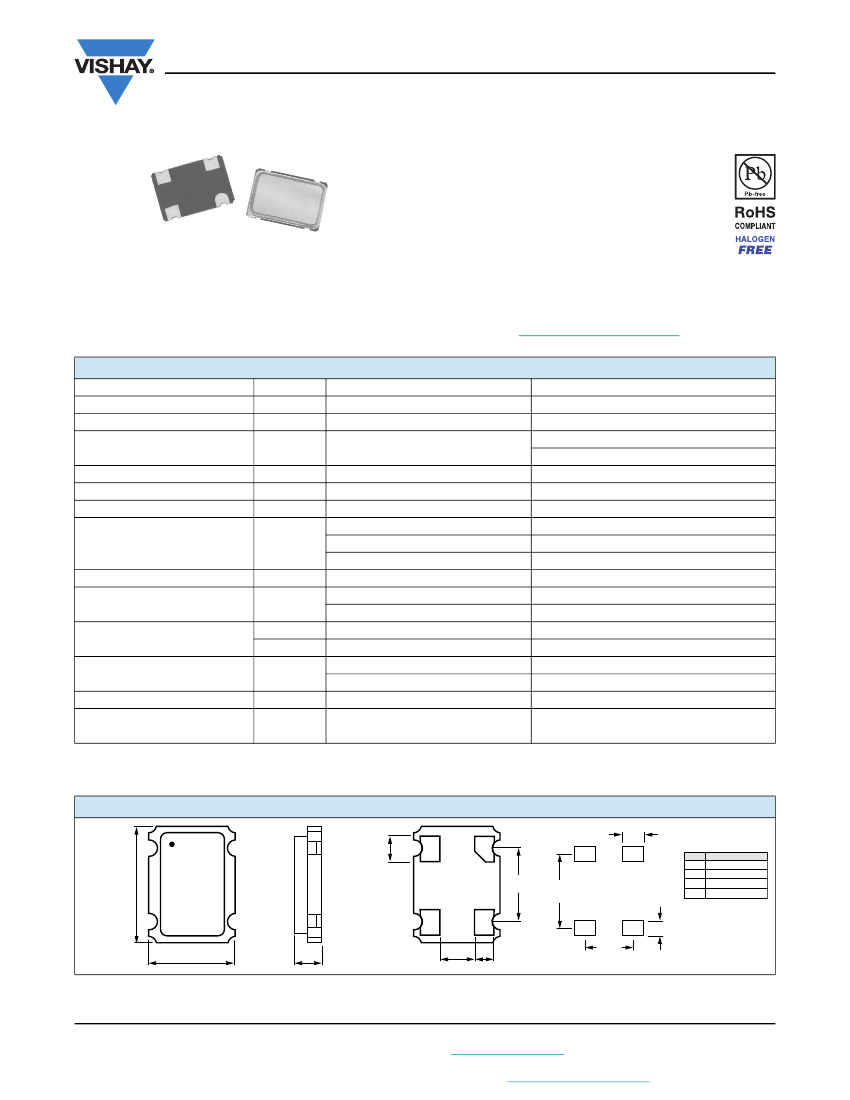

XOSM-57
www.vishay.com
Vishay Dale
Surface Mount Oscillator
FEATURES
• Size: 7.0 x 5.0 x 1.9 (mm)
• Miniature package
• Tri-state enable/disable
• TTL/HCMOS compatible
The XOSM-57 series is an ultra miniature package clock
oscillator with dimensions 7.0 mm x 5.0 mm x 1.9 mm. It is
mainly used in portable PC and telecommunication devices
and equipment.
• Tape and reel
• I
R
re-flow
• 5 V input voltage
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency stability
(1)
SYMBOL
F
O
CONDITION
-
all conditions
VALUE
1.500 MHz to 100.000 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
0 ºC to 70 ºC
- 40 ºC to + 85 ºC (option)
- 55 ºC to + 125 ºC
5.0 V ± 10 %
± 5 ppm
20 mA max.
35 mA max.
45 mA max.
40 %/60 % (45 %/55 % option)
10 ns
3 ns
90 % V
DD
min.
10 % V
DD
max.
10 TTL or 50 pF max.
15 pF max.
10 ms max.
pin 1 = H or open (output active at pin 3)
pin 1 = L (high impedance at pin 3)
Operating temperature range
Storage temperature range
Power supply voltage
Aging (first year)
Supply current
Output symmetry
Rise/fall time
Output voltage
Output load
Start-up time
Pin 1, tri-state function
T
OPR
T
STG
V
DD
-
-
-
25 ºC ± 3 ºC
1.500 MHz to 20.000 MHz
I
DD
Sym
t
r
/t
f
V
OH
V
OL
20.001 MHz to 50.000 MHz
30.001 MHz to 100.000 MHz
at
1
/
2
V
DD
1.500 MHz to 67.000 MHz
67.001 MHz to 100.000 MHz
-
-
1.500 MHz to 67.000 MHz
67.001 MHz to 100.000 MHz
t
s
-
-
Note
(1)
Include: 25 °C tolerance, operating temperature range, input voltage change, aging, load change, shock vibration
DIMENSIONS
in inches [millimeters]
0.055 [1.40]
typ.
0.276 ± 0.008
[7.0 ± 0.2]
0.079
[2.0]
#4
#1
PIN
#1
#2
#3
#4
CONNECTION
TRI-STATE/NC
GND
OUTPUT
V
DD
0.2 [5.08]
typ.
0.200
[5.08]
0.071
[1.8]
#3
0.197 ± 0.008
[5.0 ± 0.2]
#2
0.165
[4.20]
0.075 [1.90]
max.
0.102 [2.60]
typ.
0.047 [1.20]
typ.
Note
• A 0.01 μF bypass capacitor should be placed between V
DD
(pin 4) and GND (pin 2) to minimize power supply line noise
Revision: 26-Apr-13
Document Number: 35028
1
For technical questions, contact:
frequency@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
