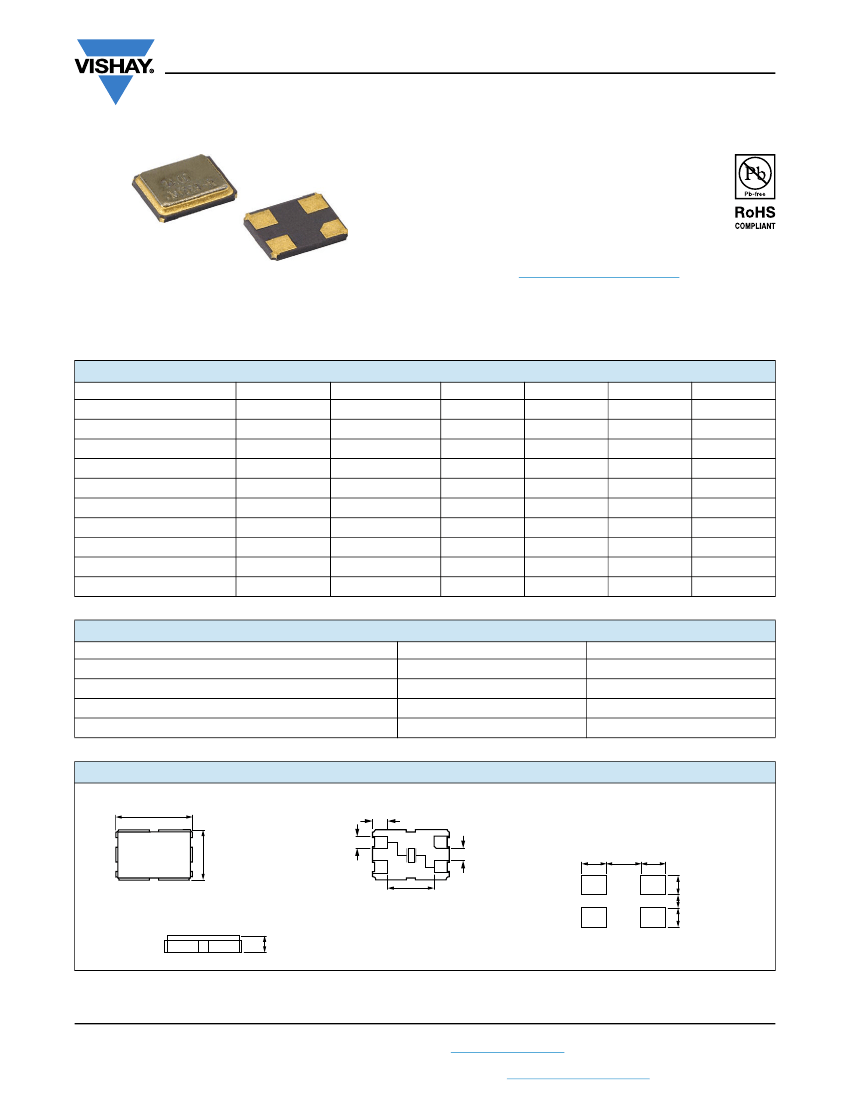

XT23
www.vishay.com
Vishay Dale
Quartz Crystals
FEATURES
• Ultra-miniature size: 3.2 x 2.5 x 0.8 (mm)
• Wide frequency range
• Seam sealing
• Emboss taping
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
The XT23 is a miniature SMD crystal with 3.2 x 2.5 (mm)
ceramic package and a height of 0.8 mm. 12 MHz to 54 MHz
frequency makes it widely applied in PDA, GPS, MP3,
PCMCIA, bluetooth, and portable instruments.
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency tolerance
Temperature stability
Operating temperature range
Storage temperature range
Shunt capacitance
Load capacitance
Insulation resistance
Drive level
Aging
SYMBOL
F
O
ΔF/F
O
T
C
T
OPR
T
STG
C
0
C
L
I
R
D
L
Fa
at 25 °C, per year
customer specified
100 V
DC
at 25 °C
ref. to 25 °C
CONDITION
UNIT
MHz
ppm
ppm
°C
°C
pF
pF
MΩ
μW
ppm
MIN.
12 000
-
-
-10
-55
-
10
500
10
-5
TYP.
-
± 30
± 50
-
-
-
-
-
100
-
MAX.
54 000
-
-
+70
+125
3
series
-
300
+5
EQUIVALENT SERIES RESISTANCE (ESR) AND MODE OF VIBRATION (MODE)
FREQUENCY RANGE (MHz)
12.000 to 12.999
13.000 to 19.999
20.000 to 29.999
30.000 to 54.000
MAX. ESR (Ω)
100
80
70
50
MODE
fundamental
fundamental
fundamental
fundamental
DIMENSIONS
in inches [millimeters]
0.126 ± 0.008
[3.20 ± 0.20]
0.035 [0.90] typ.
Recommended
Solder
Pattern
MARKING
AREA
0.098 ± 0.008
[2.50 ± 0.20]
0.031 [0.80]
typ.
1
4
2
3
0.027 [0.70]
typ.
0.051 0.043 0.051
[1.30] [1.09] [1.30]
0.047 [1.20]
0.047 [1.20] typ.
0.024 [0.61]
0.047 [1.20]
0.0315 [0.80 max.]
Note
Pin #2 and pin #4 are connected through cover, in case
connected to
GND.
Frequency might be drifted.
