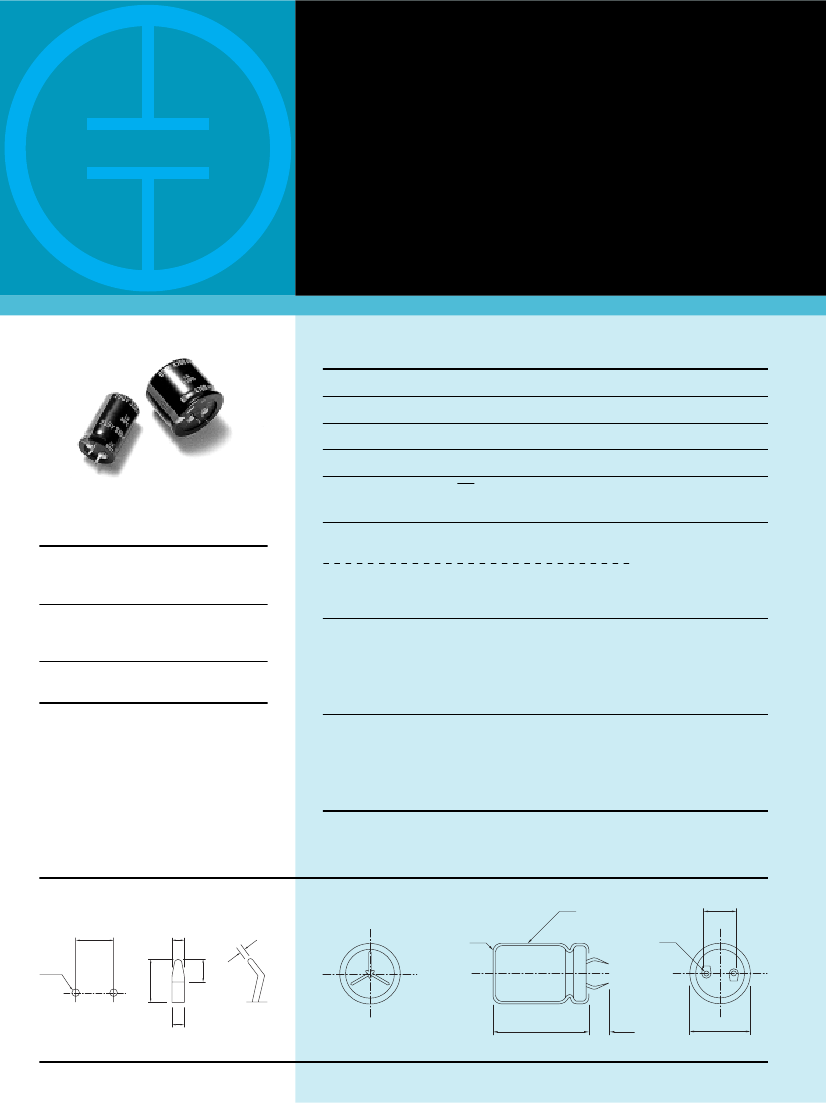

YAGEO CORPORATION
ALUMINUM ELECTROLYTIC CAPACITORS
Miniature Size Aluminum
Electrolytic Capacitors
LXK
[ For 85ºC, 2000 Hours General ]
For Printed Circuit Board High-Performance Aluminum Electrolyic Power
Supply Input and Output Filter Capacitors
ELECTRICAL CHARACTERISTICS
Rated Voltage : 16 ~ 450V
Operating Temperature : -25ºC ~ +85ºC
Nominal Capacitance Range : 470 ~ 22000µF / 100 ~ 1000µF
Capacitance Tolerance : -20 ~ +20%
DC Leakage Current (µA) : 3√CV or 2000 Whichever is smaller.
( After 2 Minutes Application of DC Working Voltage at 25°C )
DESCRIPTION
LXK type capacitors are combined with snap-
lock terminals for easy to mount on P.C.
Board.
They are ideally suitable to be used
inswitching power supplies and other
industrial or commercial applications
For Detail Specifications, Please Refer to
Engineering Bulletin No. 2051
Disspation Factor : at 120Hz, 25ºC
WV (V) : 16 25 ~ 35 50 ~ 80
100 ~ 250
400 ~ 450
D.F (%) : 30
25
20
15
20
For capacitor whose capacitance exceeds 1000µF. The value of D.F (%) is increased by 2% For every
addition of 1000µF.
Load Life :
2000 Hours at Rated Temperature Assured with Rated Maximum Ripple Current Applied
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : Not Exceed 200% of Initial Requirement
(c) Leakage Current : Not Exceed the Initial Requirement
Shelf Life :
500 Hours, No Voltage Applied at Rated Temperature
(a) Capacitance Change : Within 20% of Initial Value
(b) Disspation Factor : Not Exceed 200% of Initial Requirement
(c) Leakage Current : Not Exceed 200% of Initial Requirement
DIAGRAM OF DIMENSIONS
Unit : mm
Location of P.C.B. Holes
Vinyl Sleeve
0.8
10±0.5
10±0.5
0.9
Botton Plate
Negative
3.0
2m/m x 2
5.8±1.0
1.5
Safety Device
L+2 Max.
5.8±1
D±1
