3-1969540-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1969540-4

3-1969540-4: Descriptionheaders & wire housings housing, plug dual row, ep2.5; CategoryThe connector; File Size276KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1969540-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1969540-4	-	-	View	Buy Now

3-1969540-4 Overview

headers & wire housings housing, plug dual row, ep2.5

3-1969540-4 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Plug Housing
Pitch	2.5 mm
Number of Positions	34
Number of Rows	2
Housing Material	Nyl
Mounting Angle	Straigh
Applicati	Wire-to-Wire
Contact Type	Socke
Current Rating	7.5 A
Flammability Rating	UL 94 V-0
Housing Gende	Plug
Operating Temperature Range	- 55 C to + 105 C
Voltage Rating	250 V
Wire Gauge	26-22

Preview

Download Datasheet

View All

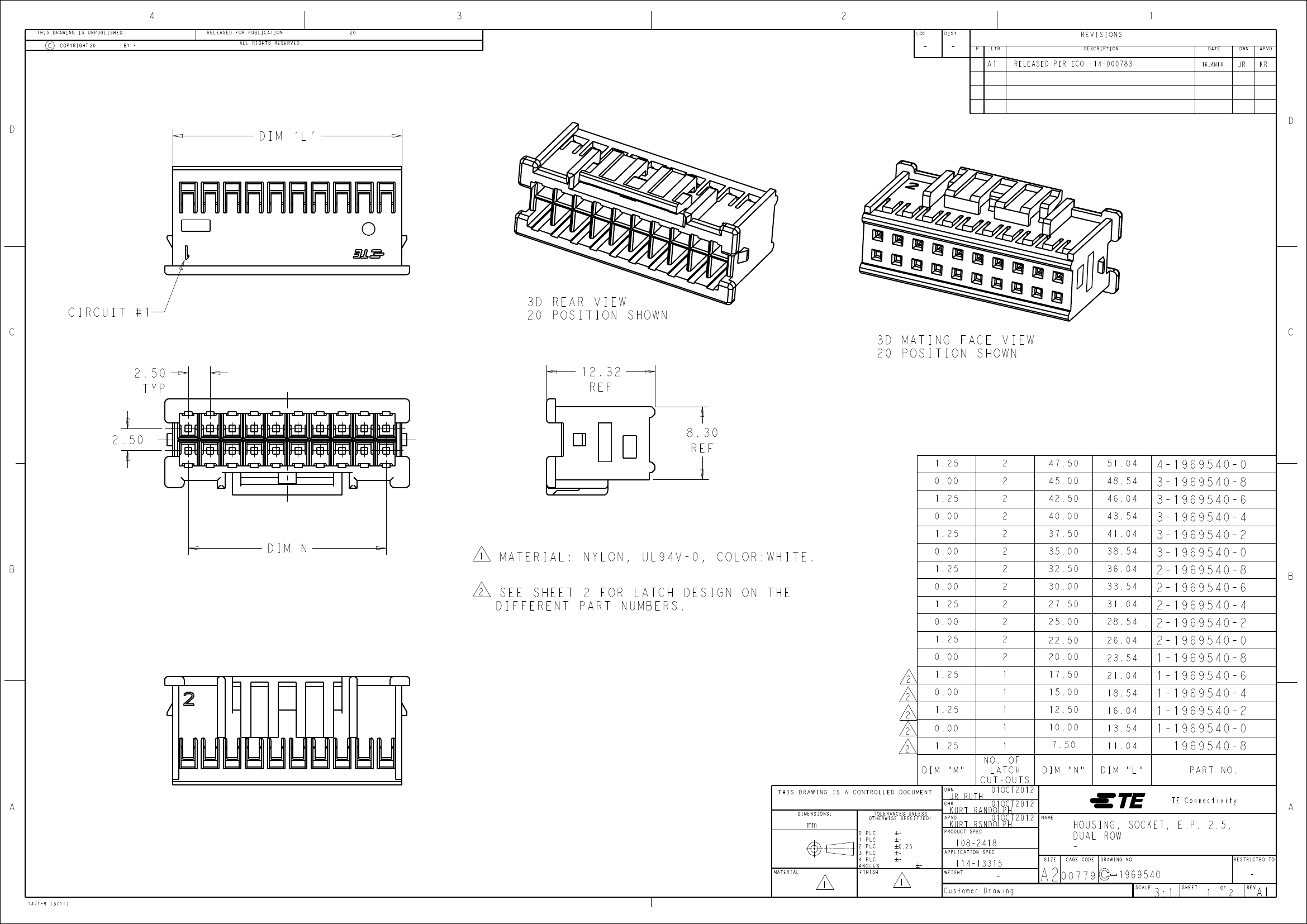

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

RELEASED PER ECO -14-000783

16JAN14

DIM 'L'

CIRCUIT #1

3D REAR VIEW

20 POSITION SHOWN

3D MATING FACE VIEW

20 POSITION SHOWN

2.50

TYP

12.32

REF

8.30

REF

2.50

1.25

0.00

1.25

0.00

1.25

NO. OF

LATCH

CUT-OUTS

47.50

45.00

42.50

40.00

37.50

35.00

32.50

30.00

27.50

25.00

22.50

20.00

17.50

15.00

12.50

10.00

7.50

DIM "N"

51.04

48.54

46.04

43.54

41.04

38.54

36.04

33.54

31.04

28.54

26.04

23.54

21.04

18.54

16.04

13.54

11.04

DIM "L"

4-1969540-0

3-1969540-8

3-1969540-6

3-1969540-4

3-1969540-2

3-1969540-0

2-1969540-8

2-1969540-6

2-1969540-4

2-1969540-2

2-1969540-0

1-1969540-8

1-1969540-6

1-1969540-4

1-1969540-2

1-1969540-0

1969540-8

PART NO.

TE Connectivity

DIM N

MATERIAL: NYLON, UL94V-0, COLOR:WHITE.

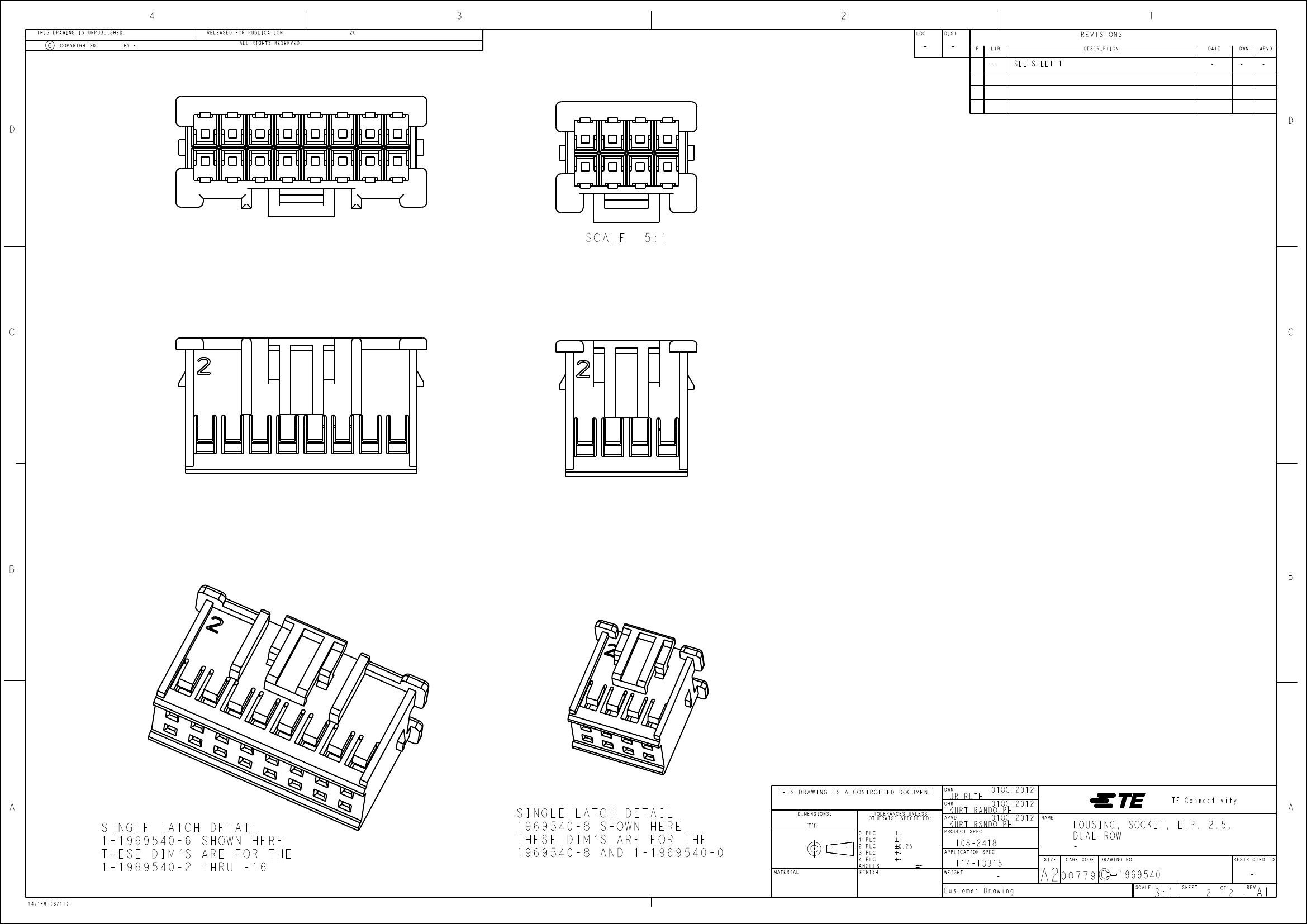

SEE SHEET 2 FOR LATCH DESIGN ON THE

DIFFERENT PART NUMBERS.

0.00

1.25

0.00

1.25

0.00

1.25

0.00

1.25

0.00

1.25

0.00

1.25

DIM "M"

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.25

01OCT2012

KURT RANDOLPH

APVD

01OCT2012

KURT RSNDOLPH

PRODUCT SPEC

APPLICATION SPEC

JR RUTH

01OCT2012

NAME

108-2418

114-13315

SIZE

1471-9 (3/11)

WEIGHT

Customer Drawing

00779

CAGE CODE

HOUSING, SOCKET, E.P. 2.5,

DUAL ROW

DRAWING NO

RESTRICTED TO

1969540

SCALE

3:1

SHEET

REV

3-1969540-4 Related Products

	3-1969540-4	1-1969540-2	2-1969540-2
Description	headers & wire housings housing, plug dual row, ep2.5	headers & wire housings housing, plug dual row, ep2.5	headers & wire housings housing, plug dual row, ep2.5
Manufacture	TE Connectivity	TE Connectivity	TE Connectivity
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes	Yes
Type	Plug Housing	Plug Housing	Plug Housing
Pitch	2.5 mm	2.5 mm	2.5 mm
Number of Positions	34	12	22
Number of Rows	2	2	2
Housing Material	Nyl	Nyl	Nyl
Mounting Angle	Straigh	Straigh	Straigh
Applicati	Wire-to-Wire	Wire-to-Wire	Wire-to-Wire
Contact Type	Socke	Socke	Socke
Current Rating	7.5 A	7.5 A	7.5 A
Flammability Rating	UL 94 V-0	UL 94 V-0	UL 94 V-0
Housing Gende	Plug	Plug	Plug
Operating Temperature Range	- 55 C to + 105 C	- 55 C to + 105 C	- 55 C to + 105 C
Voltage Rating	250 V	250 V	250 V
Wire Gauge	26-22	26-22	26-22
