3-1969541-4: Descriptionheaders & wire housings retainer, tpa, dual row, ep2.5; CategoryThe connector; File Size122KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1969541-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1969541-4	-	-	View	Buy Now

3-1969541-4 Overview

headers & wire housings retainer, tpa, dual row, ep2.5

3-1969541-4 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	2.5 mm
Number of Positions	34
Number of Rows	2
Housing Material	Nyl
Accessory Type	Retaine
Applicati	Wire-to-Wire

Preview

Download Datasheet

View All

4

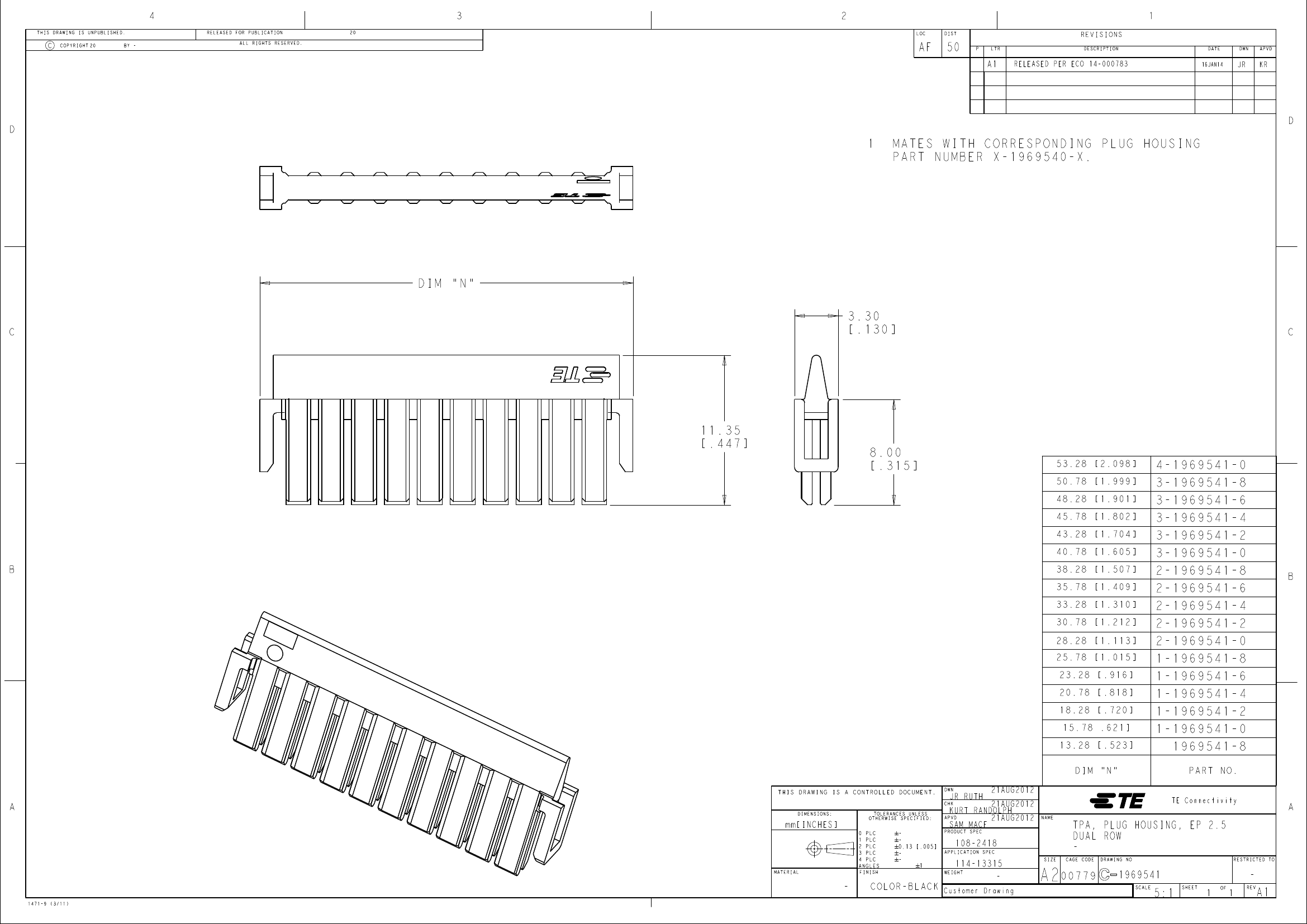

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

AF

50

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A1

RELEASED PER ECO 14-000783

16JAN14

JR

KR

D

1

MATES WITH CORRESPONDING PLUG HOUSING

PART NUMBER X-1969540-X.

DIM "N"

3.30

[ .130 ]

C

11.35

[ .447 ]

8.00

[ .315 ]

53.28 [2.098]

50.78 [1.999]

48.28 [1.901]

45.78 [1.802]

43.28 [1.704]

40.78 [1.605]

4-1969541-0

3-1969541-8

3-1969541-6

3-1969541-4

3-1969541-2

3-1969541-0

2-1969541-8

2-1969541-6

2-1969541-4

2-1969541-2

2-1969541-0

1-1969541-8

1-1969541-6

1-1969541-4

1-1969541-2

1-1969541-0

1969541-8

PART NO.

TE Connectivity

B

38.28 [1.507]

35.78 [1.409]

33.28 [1.310]

30.78 [1.212]

28.28 [1.113]

25.78 [1.015]

23.28 [.916]

20.78 [.818]

18.28 [.720]

15.78 .621]

13.28 [.523]

DIM "N"

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

B

A

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13 [.005]

-

1

21AUG2012

KURT RANDOLPH

APVD

21AUG2012

SAM MACE

PRODUCT SPEC

APPLICATION SPEC

JR RUTH

21AUG2012

NAME

A

108-2418

114-13315

SIZE

WEIGHT

-

1471-9 (3/11)

COLOR-BLACK

-

Customer Drawing

A2

00779

CAGE CODE

TPA, PLUG HOUSING, EP 2.5

DUAL ROW

-

DRAWING NO

RESTRICTED TO

1969541

SCALE

5:1

SHEET

1

OF

1

REV

-

A1

3-1969541-4 Related Products

	3-1969541-4	1-1969541-4	2-1969541-4
Description	headers & wire housings retainer, tpa, dual row, ep2.5	headers & wire housings retainer, tpa dual row, ep2.5	headers & wire housings retainer, tpa dual row, ep2.5
Manufacture	TE Connectivity	TE Connectivity	TE Connectivity
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes	Yes
Pitch	2.5 mm	2.5 mm	2.5 mm
Number of Positions	34	14	24
Number of Rows	2	2	2
Housing Material	Nyl	Nyl	Nyl
Accessory Type	Retaine	Retaine	Retaine
Applicati	Wire-to-Wire	Wire-to-Wire	Wire-to-Wire
