CIRCUIT #2
1. MATERIAL: NYLON UL94V-0, FLAME RETARDANT,
COLOR: NATURAL
2. PARTS TESTED TO IEC 60695-2-11 AND
IS COMPLIANT TO IEC 60335-1.
3. HOUSING, MATERIAL MEETS MINIMUM
GLOW WIRE FLAMMIBILITY INDEX OF 850 $ C
PER IEC 60695-2-12 AND MINIMUM GLOW WIRE
IGNITION TEMP OF 775 $ C PER IEC 60695-2-13.
4. ACCEPTS TE PIN CONTACTS
P/N'S 2238007-( )
& 2238008-( )
5. HOUSING ACCEPTS OPTIONAL TPA
P/N'S 1969541-( )
6. MATES WITH TE PLUG HOUSINGS
P/N'S 1969567-()
C
D
B
1-1969593-8 THROUGH 4-1969593-0
DOUBLE LATCH
C
1969593-8
& 1-1969593-0
SINGLE LATCH W/O CUTOUTS
1-1969593-2, 1-1969593-4
& 1-1969593-6
SINGLE LATCH W/ CUTOUTS
10.32
7.40
0.90
40
38
36
34
32
30
28
26
24
52.89
50.39
47.89
45.39
42.89
40.39
37.89
35.39
32.89
30.39
27.89
25.39
22.89
20.39
17.89
15.39
12.89
DIM.B
50.79
48.29
45.79
43.29
40.79
38.29
35.79
33.29
30.79
28.29
25.79
23.29
20.79
18.29
15.79
10.79
13.29
4-1969593-0
3-1969593-8
3-1969593-6
3-1969593-4
3-1969593-2
3-1969593-0
2-1969593-8
2-1969593-6
2-1969593-4
2-1969593-2
2-1969593-0
1-1969593-8
1-1969593-6
1-1969593-4
1-1969593-2
1-1969593-0
1969593-8
B
B
19.97
11.05
22
20
18
16
14
12
10
8
CIRCUIT #1
POS
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
DIM.A
TE Connectivity
PART NO.
A
A. NOEL
-
03OCT2012
-
-
NAME
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
PRODUCT SPEC
A
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.25
-
-
-
APPLICATION SPEC
108-2418
114-13315
-
-
WEIGHT
SEE NOTES
1471-9 (3/11)
SEE NOTES
Customer Drawing
A2
00779
SIZE

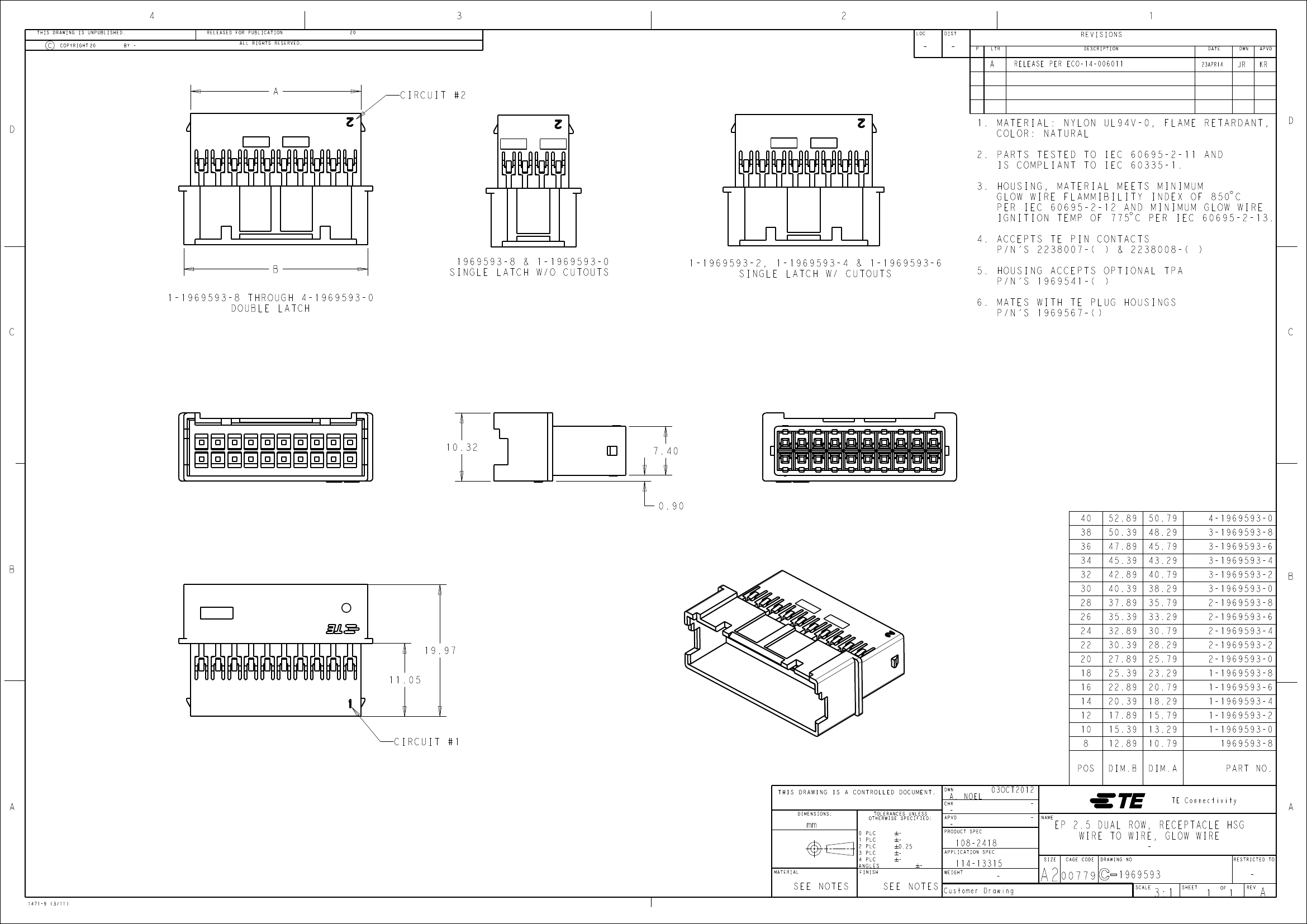

EP 2.5 DUAL ROW, RECEPTACLE HSG
WIRE TO WIRE, GLOW WIRE
-
CAGE CODE
DRAWING NO
RESTRICTED TO
1969593
SCALE
3:1
SHEET
1
OF
1
REV
-
A
