2-1969543-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 2-1969543-8

Preview

2-1969543-8: Descriptionheaders & wire housings assy hdr vert bossed dual row, ep2.5; CategoryThe connector; File Size363KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1969543-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1969543-8	-	-	View	Buy Now

2-1969543-8 Overview

headers & wire housings assy hdr vert bossed dual row, ep2.5

2-1969543-8 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Pin Heade
Pitch	2.5 mm
Number of Positions	28
Number of Rows	2
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Nyl
Termination Style	Through Hole
Mounting Angle	Vertical
Applicati	Wire-to-Board
Contact Material	Brass
Current Rating	7.5 A
Flammability Rating	UL 94 V-0
Housing Gende	Plug
Operating Temperature Range	- 25 C to + 105 C
Voltage Rating	250 V

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

AF

DIM "L"

2.50

[ .098 ]

50

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A

RELEASED PER ECO-14-007569

21MAY14

JR

KR

D

2.50

[ .098 ]

TYP

DIM "M"

10.17

[ .400 ]

HEADER HOUSING

NYLON 66, UL94V-0, WHITE

C

9.80

[ .386 ]

3.40

[ .134 ]

PIN, BRASS WITH

TIN PLATING OVER NICKEL

0.60 0.05

[ .024 .001 ]

TYP

DIM "F"

KINKED PIN, SEE SHEET 2

FOR PIN LOCATIONS

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

2

1

NO. OF

LATCH

CUT-OUTS

1

47.50 [1.870]

45.00 [1.772]

42.50 [1.673]

40.00 [1.575]

37.50 [1.477]

35.00 [1.378]

32.50 [1.280]

30.00 [1.181]

27.50 [1.083]

25.00 [.984]

22.50 [.886]

20.00 [.787]

17.50 [.689]

15.00 [.590]

12.50 [.492]

10.00 [.394]

7.50 [.295]

DIM "F"

DWN

CHK

DIMENSIONS:

52.89 [2.083]

50.39 [1.985]

47.89 [1.886]

45.39 [1.788]

42.89 [1.689]

40.39 [1.591]

37.89 [1.492]

35.39 [1.394]

32.89 [1.295]

30.39 [1.197]

27.89 [1.098]

25.39 [1.000]

22.89 [.901]

20.39 [.803]

17.89 [.704]

15.39 [.606]

12.89 [.507]

DIM "L"

40

38

36

34

32

30

28

26

24

22

20

18

16

14

12

10

8

NO. OF

POSITIONS

4-1969543-0

3-1969543-8

3-1969543-6

3-1969543-4

3-1969543-2

3-1969543-0

2-1969543-8

2-1969543-6

2-1969543-4

2-1969543-2

2-1969543-0

1-1969543-8

1-1969543-6

1-1969543-4

1-1969543-2

1-1969543-0

1969543-8

PART NO.

TE Connectivity

B

POSITION #1

B

0.90

[ .035 ]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

DIM "M"

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.25 [.010]

-

31AUG2012

KURT RANDOLPH

APVD

31AUG2012

SAM MACE

PRODUCT SPEC

APPLICATION SPEC

JR RUTH

31AUG2012

NAME

A

108-2418

114-13315

SIZE

WEIGHT

SEE NOTES

1471-9 (3/11)

SEE NOTES

-

Customer Drawing

A2

00779

CAGE CODE

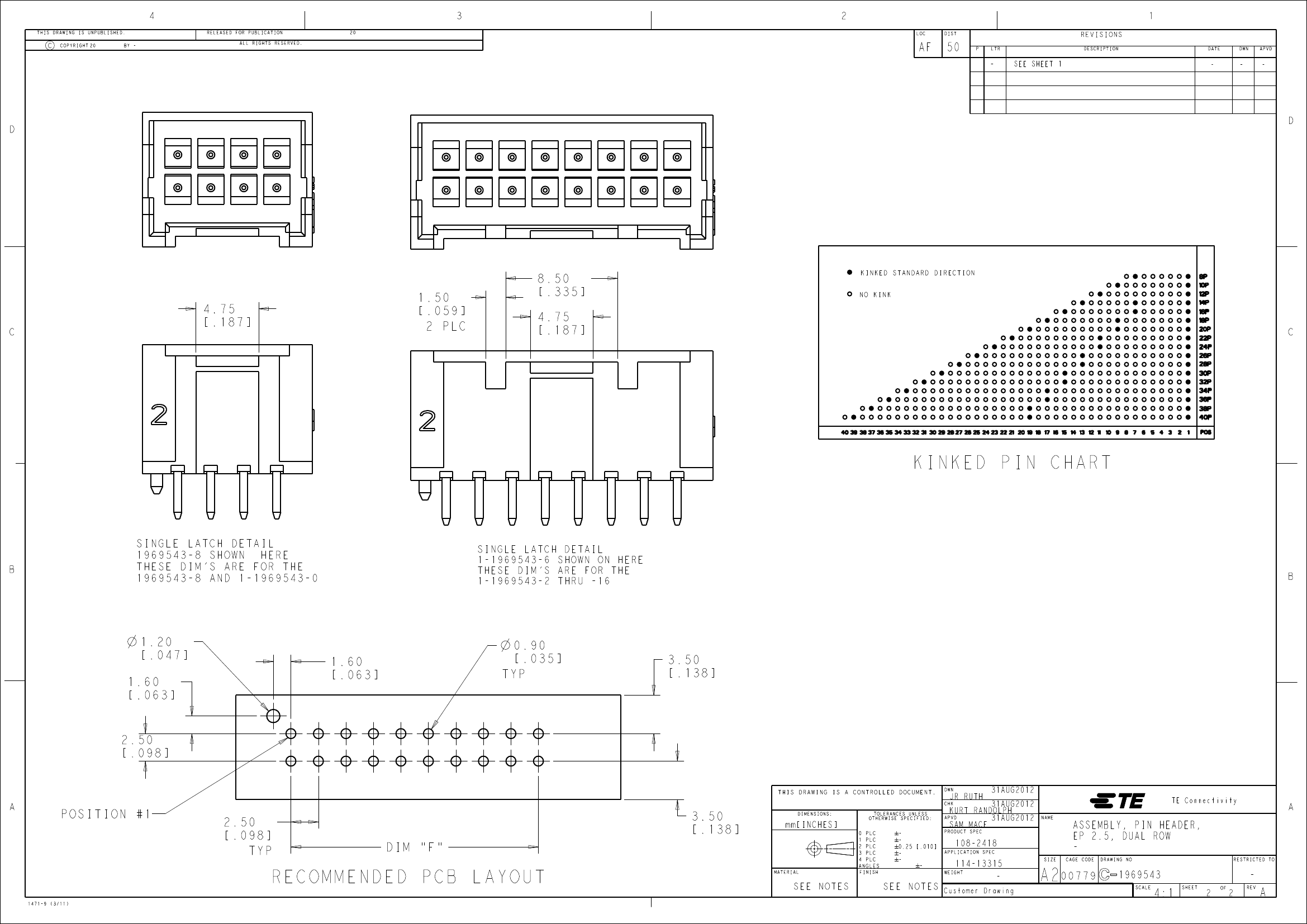

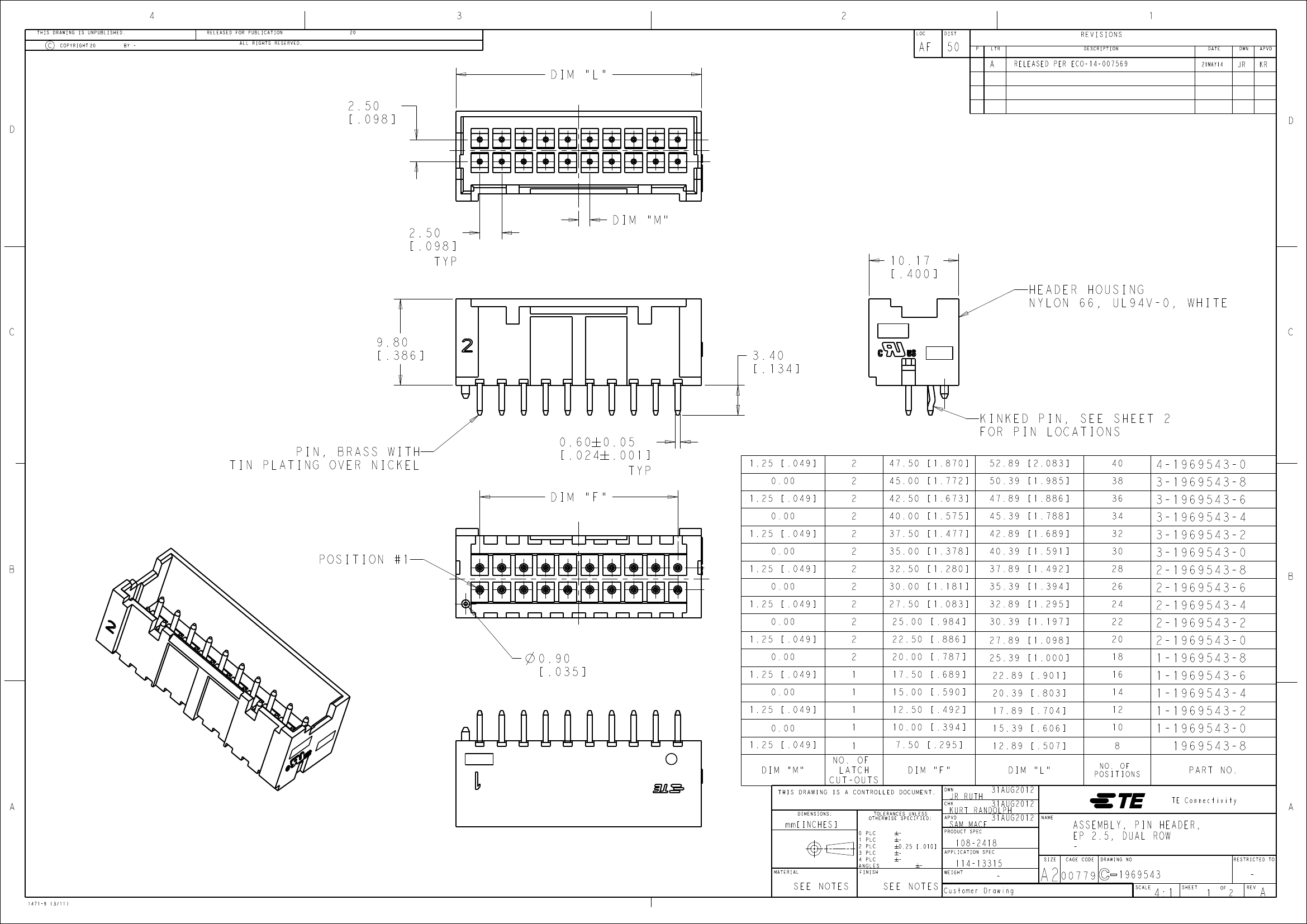

ASSEMBLY, PIN HEADER,

EP 2.5, DUAL ROW

-

DRAWING NO

RESTRICTED TO

1969543

SCALE

4:1

SHEET

1

OF

2

REV

-

A

2-1969543-8 Related Products

	2-1969543-8	1-1969543-8
Description	headers & wire housings assy hdr vert bossed dual row, ep2.5	headers & wire housings assy hdr vert bossed dual row, ep2.5
Manufacture	TE Connectivity	TE Connectivity
Product Category	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes
Type	Pin Heade	Pin Heade
Pitch	2.5 mm	2.5 mm
Number of Positions	28	18
Number of Rows	2	2
Contact Gende	Pin (Male)	Pin (Male)
Contact Plating	Ti	Ti
Housing Material	Nyl	Nyl
Termination Style	Through Hole	Through Hole
Mounting Angle	Vertical	Vertical
Applicati	Wire-to-Board	Wire-to-Board
Contact Material	Brass	Brass
Current Rating	7.5 A	7.5 A
Flammability Rating	UL 94 V-0	UL 94 V-0
Housing Gende	Plug	Plug
Operating Temperature Range	- 25 C to + 105 C	- 25 C to + 105 C
Voltage Rating	250 V	250 V

Recommended Resources

A circuit diagram integrating a charging management module

TA7271P audio IC circuit diagram

hearing aid circuit

Is there a letter in the mailbox? Circuit diagram of the annunciator

Active negative intercept circuit

DC motor speed control circuit
