3-1969543-0: Descriptionheaders & wire housings asy, hdr, vert, boss dual row, ep2.5; CategoryThe connector; File Size363KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1969543-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1969543-0	-	-	View	Buy Now

3-1969543-0 Overview

headers & wire housings asy, hdr, vert, boss dual row, ep2.5

3-1969543-0 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Pin Heade
Pitch	2.5 mm
Number of Positions	30
Number of Rows	2
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Nyl
Termination Style	Through Hole
Mounting Angle	Vertical
Applicati	Wire-to-Board
Contact Material	Brass
Current Rating	7.5 A
Flammability Rating	UL 94 V-0
Housing Gende	Plug
Operating Temperature Range	- 25 C to + 105 C
Voltage Rating	250 V

Preview

Download Datasheet

View All

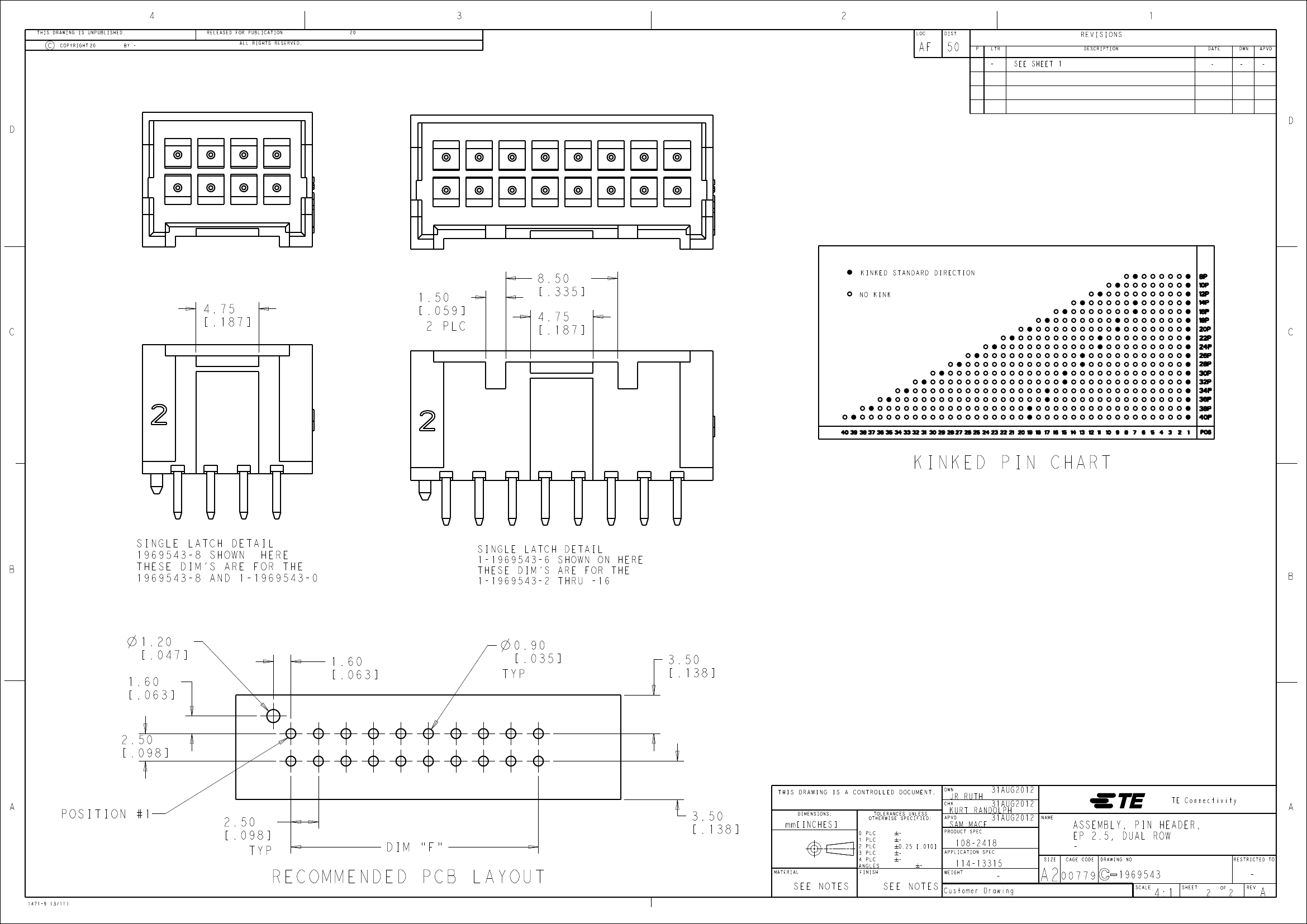

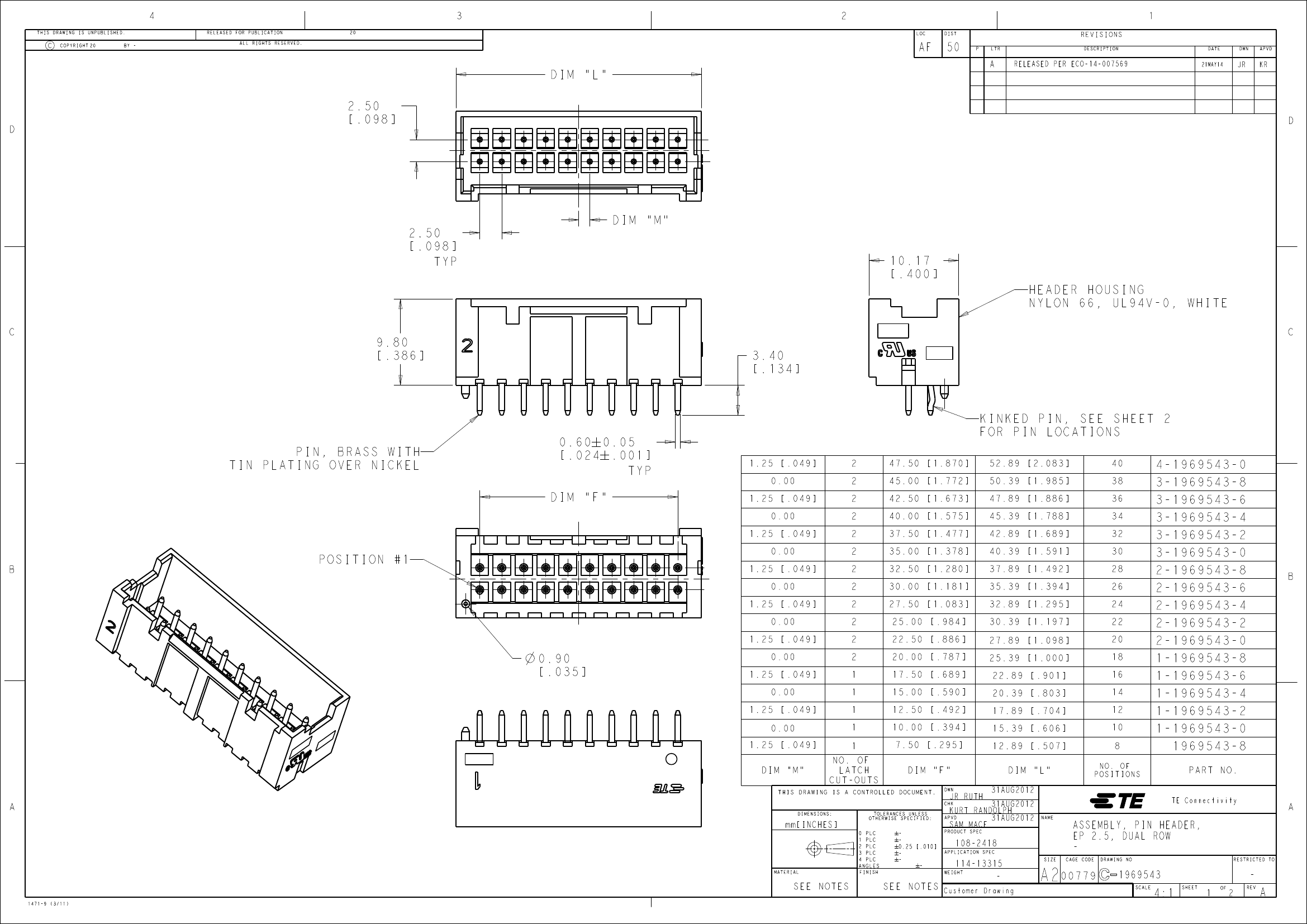

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

DIM "L"

2.50

[ .098 ]

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

RELEASED PER ECO-14-007569

21MAY14

2.50

[ .098 ]

TYP

DIM "M"

10.17

[ .400 ]

HEADER HOUSING

NYLON 66, UL94V-0, WHITE

9.80

[ .386 ]

3.40

[ .134 ]

PIN, BRASS WITH

TIN PLATING OVER NICKEL

0.60 0.05

[ .024 .001 ]

TYP

DIM "F"

KINKED PIN, SEE SHEET 2

FOR PIN LOCATIONS

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

NO. OF

LATCH

CUT-OUTS

47.50 [1.870]

45.00 [1.772]

42.50 [1.673]

40.00 [1.575]

37.50 [1.477]

35.00 [1.378]

32.50 [1.280]

30.00 [1.181]

27.50 [1.083]

25.00 [.984]

22.50 [.886]

20.00 [.787]

17.50 [.689]

15.00 [.590]

12.50 [.492]

10.00 [.394]

7.50 [.295]

DIM "F"

DWN

CHK

DIMENSIONS:

52.89 [2.083]

50.39 [1.985]

47.89 [1.886]

45.39 [1.788]

42.89 [1.689]

40.39 [1.591]

37.89 [1.492]

35.39 [1.394]

32.89 [1.295]

30.39 [1.197]

27.89 [1.098]

25.39 [1.000]

22.89 [.901]

20.39 [.803]

17.89 [.704]

15.39 [.606]

12.89 [.507]

DIM "L"

NO. OF

POSITIONS

4-1969543-0

3-1969543-8

3-1969543-6

3-1969543-4

3-1969543-2

3-1969543-0

2-1969543-8

2-1969543-6

2-1969543-4

2-1969543-2

2-1969543-0

1-1969543-8

1-1969543-6

1-1969543-4

1-1969543-2

1-1969543-0

1969543-8

PART NO.

TE Connectivity

POSITION #1

0.90

[ .035 ]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

DIM "M"

THIS DRAWING IS A CONTROLLED DOCUMENT.

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.25 [.010]

31AUG2012

KURT RANDOLPH

APVD

31AUG2012

SAM MACE

PRODUCT SPEC

APPLICATION SPEC

JR RUTH

31AUG2012

NAME

108-2418

114-13315

SIZE

WEIGHT

SEE NOTES

1471-9 (3/11)

SEE NOTES

Customer Drawing

00779

CAGE CODE

ASSEMBLY, PIN HEADER,

EP 2.5, DUAL ROW

DRAWING NO

RESTRICTED TO

1969543

SCALE

4:1

SHEET

REV

3-1969543-0 Related Products

	3-1969543-0	1-1969543-0	3-1969543-2	3-1969543-4	3-1969543-6	4-1969543-0	3-1969543-8	2-1969543-0
Description	headers & wire housings asy, hdr, vert, boss dual row, ep2.5	headers & wire housings assy hdr vert bossed dual row, ep2.5	headers & wire housings asy, hdr, vert, boss dual row, ep2.5	headers & wire housings asy, hdr, vert, boss dual row, ep2.5	headers & wire housings asy, hdr, vert, boss dual row, ep2.5	headers & wire housings assy hdr vert bossed dual row, ep2.5	headers & wire housings asy, hdr, vert, boss dual row, ep2.5	headers & wire housings assy hdr vert bossed dual row, ep2.5
Manufacture	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Type	Pin Heade	Pin Heade	Pin Heade	Pin Heade	Pin Heade	Pin Heade	Pin Heade	Pin Heade
Pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Number of Positions	30	10	32	34	36	40	38	20
Number of Rows	2	2	2	2	2	2	2	2
Contact Gende	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
Contact Plating	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Housing Material	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Applicati	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Current Rating	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Flammability Rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Housing Gende	Plug	Plug	Plug	Plug	Plug	Plug	Plug	Plug
Operating Temperature Range	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C
Voltage Rating	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
