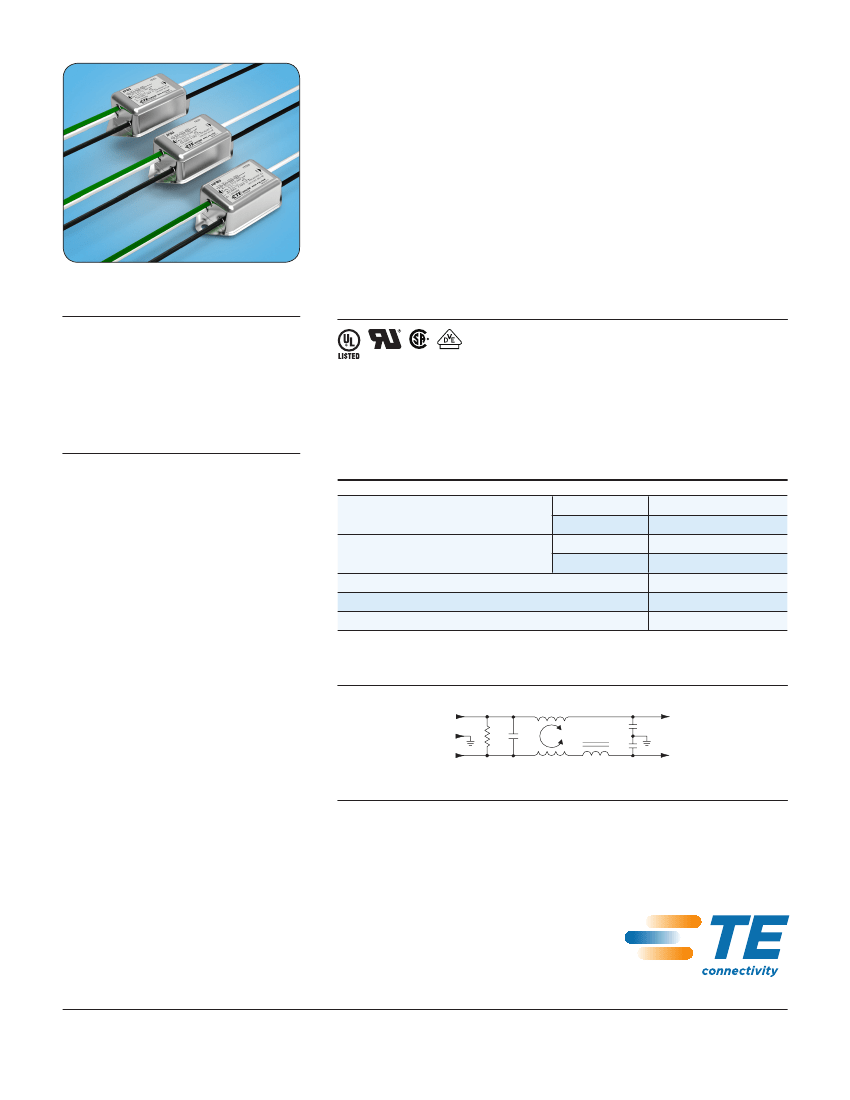

Introducing
Corcom FB Series
TE Connectivity has launched the new Corcom FB power line filter series. The FB
Series power line filters are specially designed for lighting devices, fluorescent lamp
and related lighting ballasts but are also suitable for applications requiring 277
VAC or 277 VDC. The compact size of this filter allows installation in most standard
lighting tracks. Current ratings range from .5A to 5A. The new FB Series offers good
attenuation in the range of 100kHz to 30MHz. These products are UL listed to UL 935,
the industry standard for florescent ballasts.
KEY FEATURES
•
Compact size
•
277 VAC/VDC
•
Strong differential mode performance
•
Solid lead wires
•
Ambient temperature 50°C
STANDARDS AND SPECIFICATIONS
•
UL Listed
•
UL Recognized
•
CSA Certified
•
VDE Approved
APPLICATIONS
•
Fluorescent ballasts
•
LED displays
•
Office and Hospital lighting
•
Architectural lighting
•
Instrumentation lighting
•
Outdoor signage
•
UV curing lights
•
Lower current industrial applications
ELECTRICAL SPECIFICATIONS
@ 277 VAC 60 Hz:
@250 VAC 50Hz:
Line to Ground:
Line to Line:
.28 mA
.21 mA
2300 VDC
1853 VDC
277 VAC / 277 VDC*
50/60 Hz
0.5 to 5A
* VDE Approved at 250 VAC & 250 VDC
Max. Leakage current each Line to Ground:
Hipot rating (one minute):
Rated Voltage (max.):
Operating Frequency:
Rated Current:
(AC or DC rated)
ELECTRICAL SCHEMATIC
LINE
LOAD
PRODUCT OFFERING
8-1609095-8:
8-1609095-9:
9-1609095-0:
9-1609095-1:
HFB3
2FB3
3FB3
5FB3
0.5A FB Series with wire leads
2A FB Series with wire leads
3A FB Series with wire leads
5A FB Series with wire leads
corcom.com
© 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. All Rights Reserved.
Corcom, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks. Other logos,
3-1773462-6 CIS JG 05/2012
product and/or company names might be trademarks of their respective owners.
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
Corcom FB Series
CASE STYLES
White
Green
Black
White
B
Black
D
E
A
C
DIMENSIONS
Part Numbers
(max)
A
(max)
B
(max)
C
(max)
D
±0.025
±0.635
E
FB Series
3.0
76.2
1.42
36.07
.875
22.23
2.03
51.56
2.5
63.5
PERFORMANCE DATA
Minimum Insertion Loss -
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Frequency — MHz
Differential Mode / Symmetrical (Line to Line)
Frequency — MHz
Part No.
HFB3
2FB3
3FB3
5FB3
.03
4
3
-
-
.05
8
7
1
2
.1
12
13
6
5
.5
26
28
20
21
1
32
34
26
26
5
45
45
41
41
10
44
44
41
40
20
38
41
47
44
30
42
41
50
48
Part No.
HFB3
2FB3
3FB3
5FB3
.03
6
6
6
6
.05
11
11
10
10
.1
20
20
17
16
.5
43
43
37
31
1
51
51
47
40
5
55
51
54
51
10
51
44
48
47
20
42
40
44
44
30
41
39
42
41
While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation,
warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice.
TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose.
The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions
and design specifications.
