2S80LD: DescriptionIC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter; CategoryAnalog mixed-signal IC converter; File Size595KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

2S80LD Overview

IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter

2S80LD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-40
Contacts	40
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	PROGRAMMABLE RESOLUTION
Maximum analog input voltage	2 V
Maximum angular accuracy	2 arc mi
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Maximum negative supply voltage	-13.2 V
Minimum negative supply voltage	-10.8 V
Nominal negative supply voltage	-12 V
Number of digits	16
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/12,+-12 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Signal/output frequency	20000 Hz
Maximum slew rate	30 mA
Maximum supply voltage	13.2 V
Minimum supply voltage	10.8 V
Nominal supply voltage	12 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum tracking rate	16.25 rps
width	15.24 mm
Base Number Matches	1

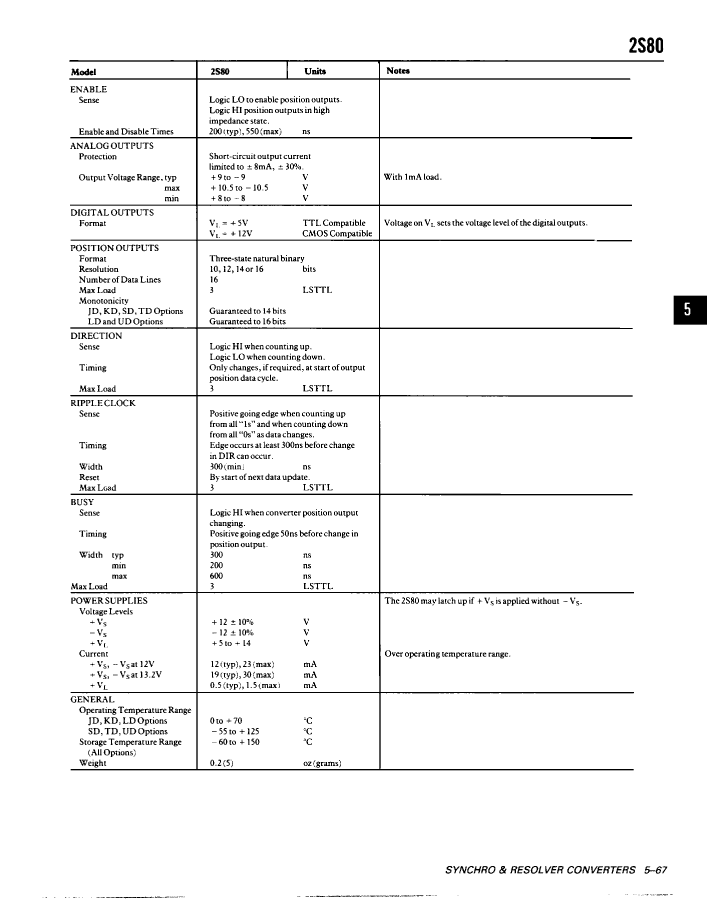

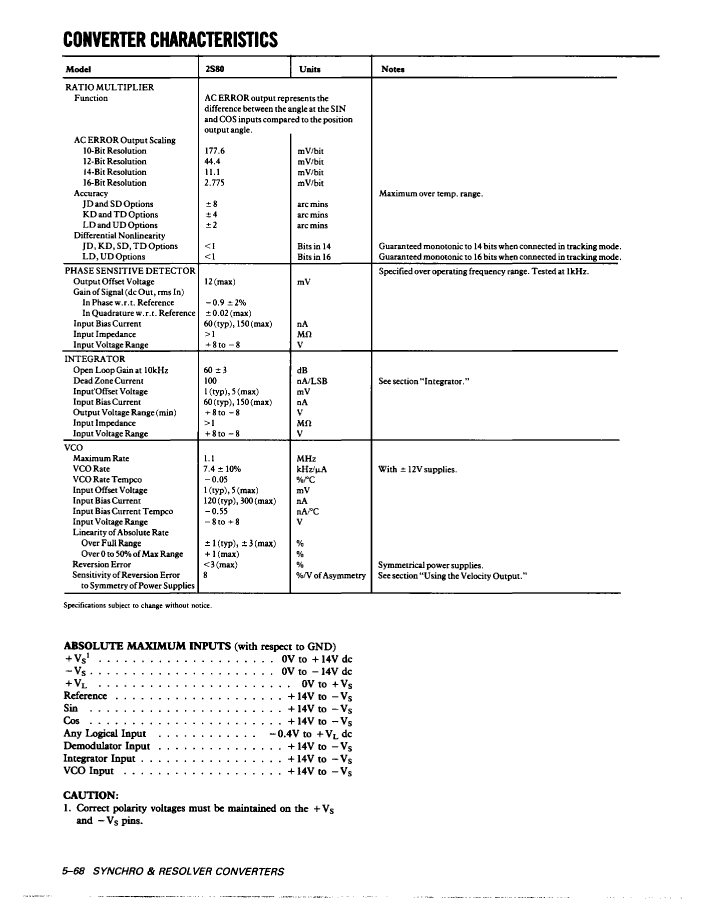

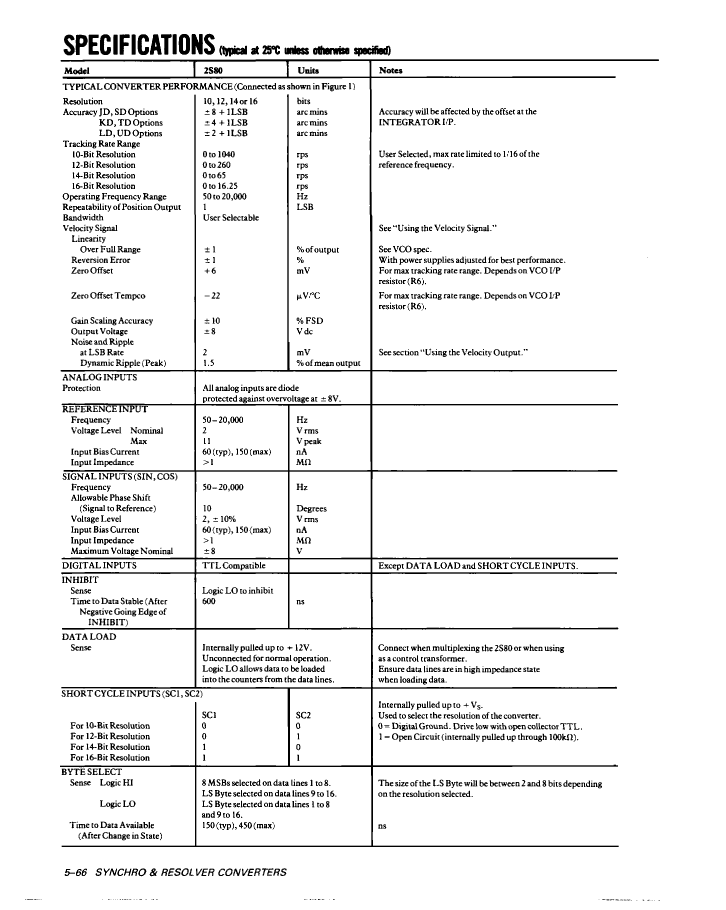

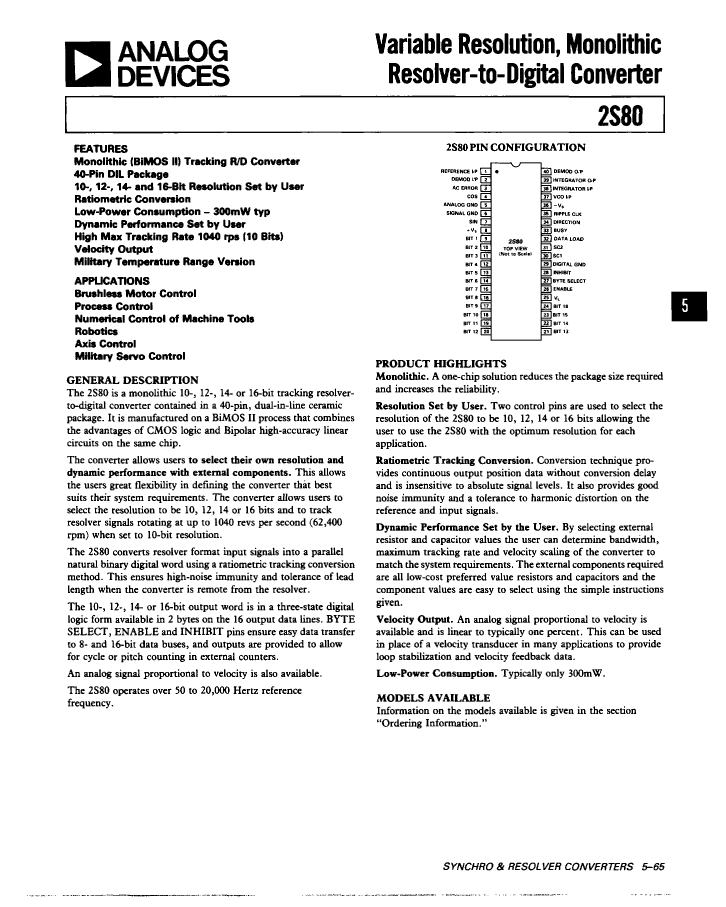

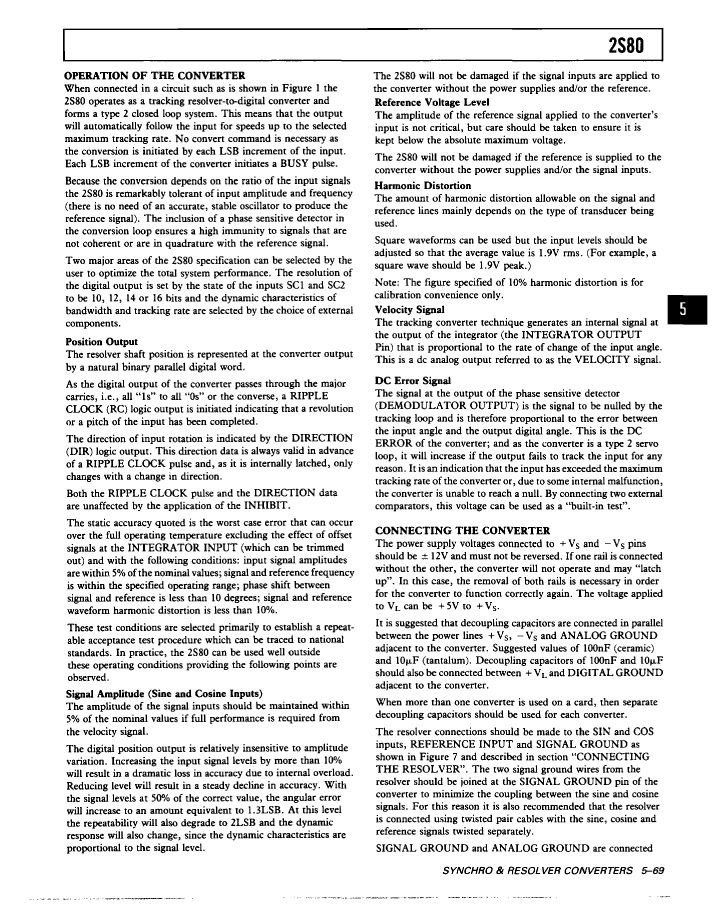

Preview

Download Datasheet

View All

2S80LD Related Products

	2S80LD	2S80JD	2S80KD	2S80SD	2S80TD	2S80UD
Description	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter	IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-40	SIDE BRAZED, CERAMIC, DIP-40	SIDE BRAZED, CERAMIC, DIP-40	SIDE BRAZED, CERAMIC, DIP-40	SIDE BRAZED, CERAMIC, DIP-40	SIDE BRAZED, CERAMIC, DIP-40
Contacts	40	40	40	40	40	40
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION	PROGRAMMABLE RESOLUTION
Maximum analog input voltage	2 V	2 V	2 V	2 V	2 V	2 V
Maximum angular accuracy	2 arc mi	8 arc mi	4 arc mi	8 arc mi	4 arc mi	2 arc mi
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum negative supply voltage	-13.2 V	-13.2 V	-13.2 V	-13.2 V	-13.2 V	-13.2 V
Minimum negative supply voltage	-10.8 V	-10.8 V	-10.8 V	-10.8 V	-10.8 V	-10.8 V
Nominal negative supply voltage	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V
Number of digits	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/12,+-12 V	5/12,+-12 V	5/12,+-12 V	5/12,+-12 V	5/12,+-12 V	5/12,+-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm
Signal/output frequency	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz	20000 Hz
Maximum slew rate	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA
Maximum supply voltage	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V
Minimum supply voltage	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V	10.8 V
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum tracking rate	16.25 rps	16.25 rps	16.25 rps	16.25 rps	16.25 rps	16.25 rps
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1	1	1
