LER012B56NK datasheet, PDF - EEWORLD Datasheet

LER012B56NK: DescriptionGeneral Purpose Inductor, 0.056uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size126KB，2 Pages; ManufacturerTaiyo Yuden

Download Datasheet Parametric View All

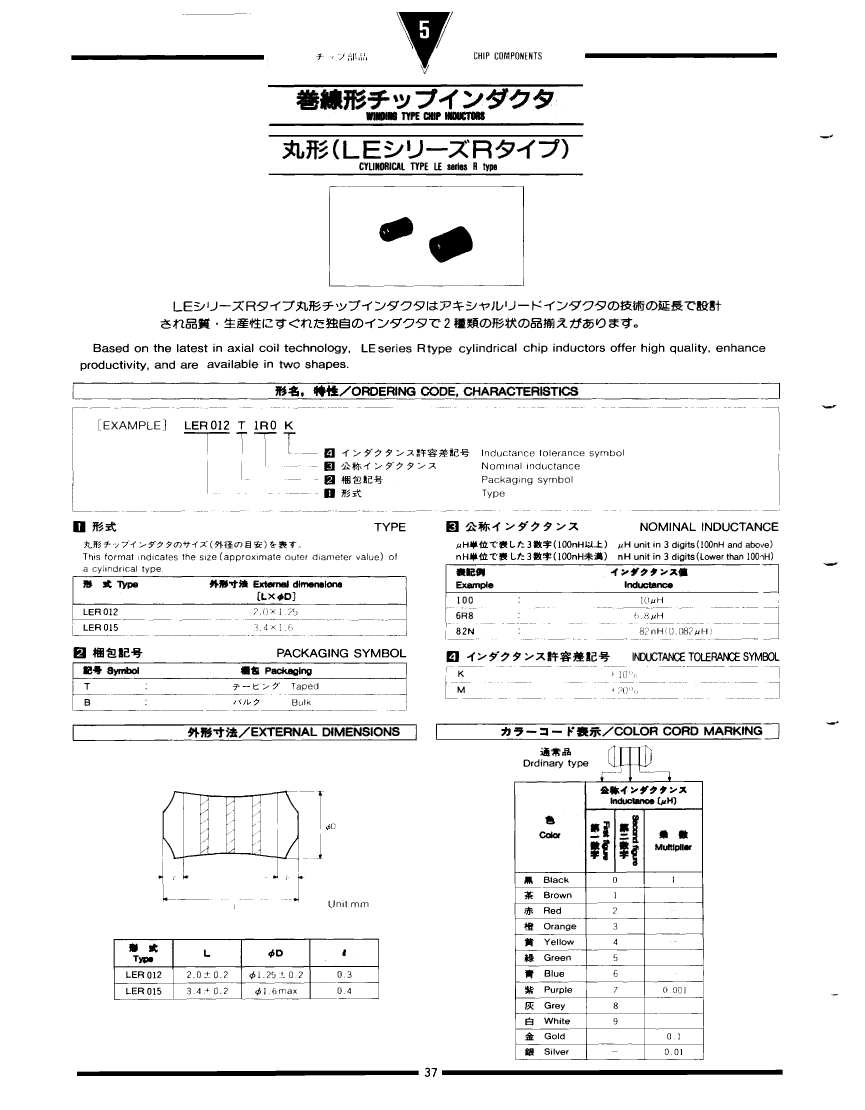

LER012B56NK Overview

General Purpose Inductor, 0.056uH, 10%, 1 Element, SMD

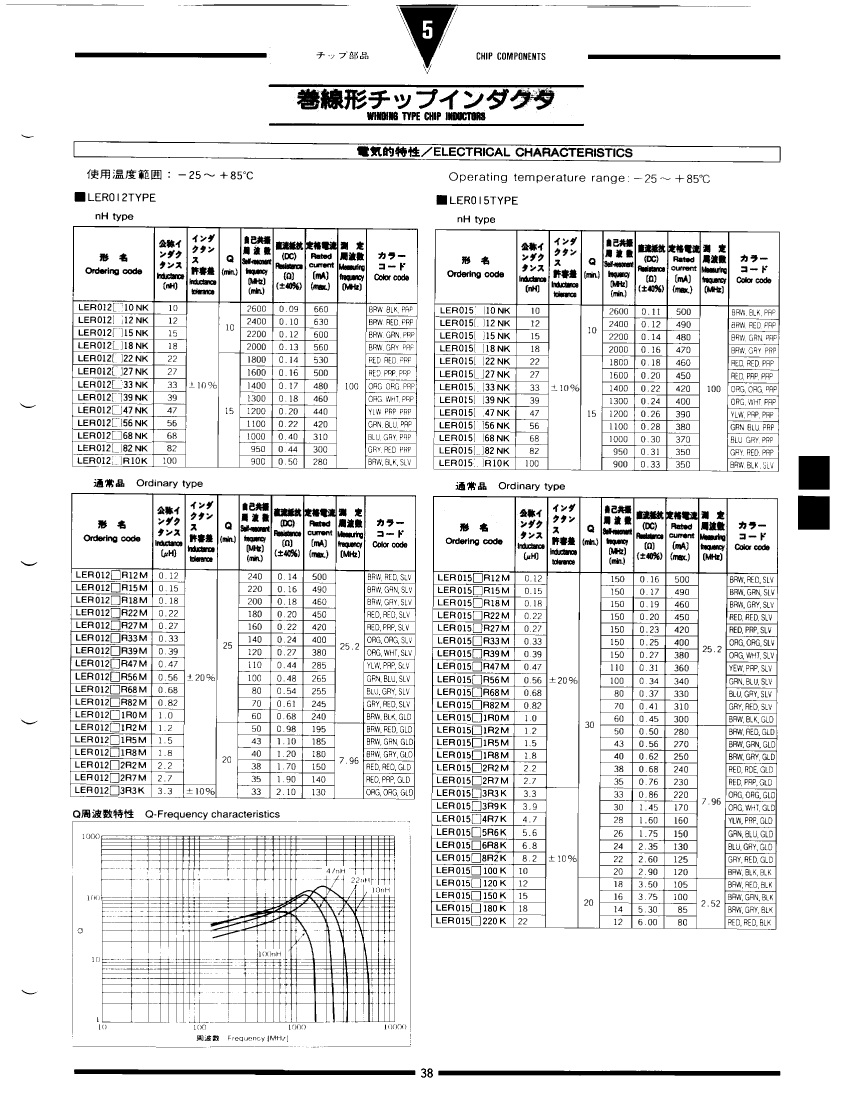

Parameter Name	Attribute value
Objectid	1412231127
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.22 Ω
Nominal inductance(L)	0.056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	15
Maximum rated current	0.42 A
self resonant frequency	1100 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%
