Q24S25020-PS0PG datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> Q24S25020-PS0PG

Q24S25020-PS0PG: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid, ROHS COMPLIANT, QUARTER BRICK PACKAGE-8; CategoryPower/power management The power supply circuit; File Size249KB，14 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

Q24S25020-PS0PG Overview

DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid, ROHS COMPLIANT, QUARTER BRICK PACKAGE-8

Q24S25020-PS0PG Parametric

Parameter Name	Attribute value
Objectid	8003826812
package instruction	ROHS COMPLIANT, QUARTER BRICK PACKAGE-8
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.6
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-X8
JESD-609 code	e4
length	58.42 mm
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.2 V
Minimum output voltage	1.6 V
Nominal output voltage	2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	6.93 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	GOLD OVER NICKEL
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	50 W
Fine-tuning/adjustable output	YES
width	36.83 mm

Preview

Download Datasheet

View All

Q24S25020 DC-DC Converter Data Sheet

18-36 VDC Input; 2.0 VDC @ 25A Output

Description

The

Q24S25020

surface mounted DC-DC converter offers

unprecedented performance in the industry-standard quarter

brick format. This is accomplished through the use of patent

pending circuit and packaging techniques to achieve ultra-

high efficiency, excellent thermal performance and a very

low body profile.



In telecommunications applications the

Family

25 A

converters provide thermal performance that far exceeds all

quarter-bricks and is comparable even to existing half-bricks.

Low body profile and the preclusion of heat sinks minimize

airflow shadowing, thus enhancing cooling for downstream

devices. The use of 100% surface-mount technologies for

assembly, coupled with Power-One’s advanced electronic

and thermal circuitry and packaging, results in a product with

extremely high quality and reliability.

Q24S25020 Converter

Features



RoHS lead-free solder and lead-solder-exempted

products are available

Delivers up to 25 A

Higher current capability at 70ºC than existing

quarter-brick and half-brick converters

High efficiency: 86% @ 25 A, 86% @ 12.5 A

Start-up into pre-biased output

No minimum load required

No heat sink required

Low profile: 0.26” [6.6 mm]

Low weight: 1 oz [28 g] typical

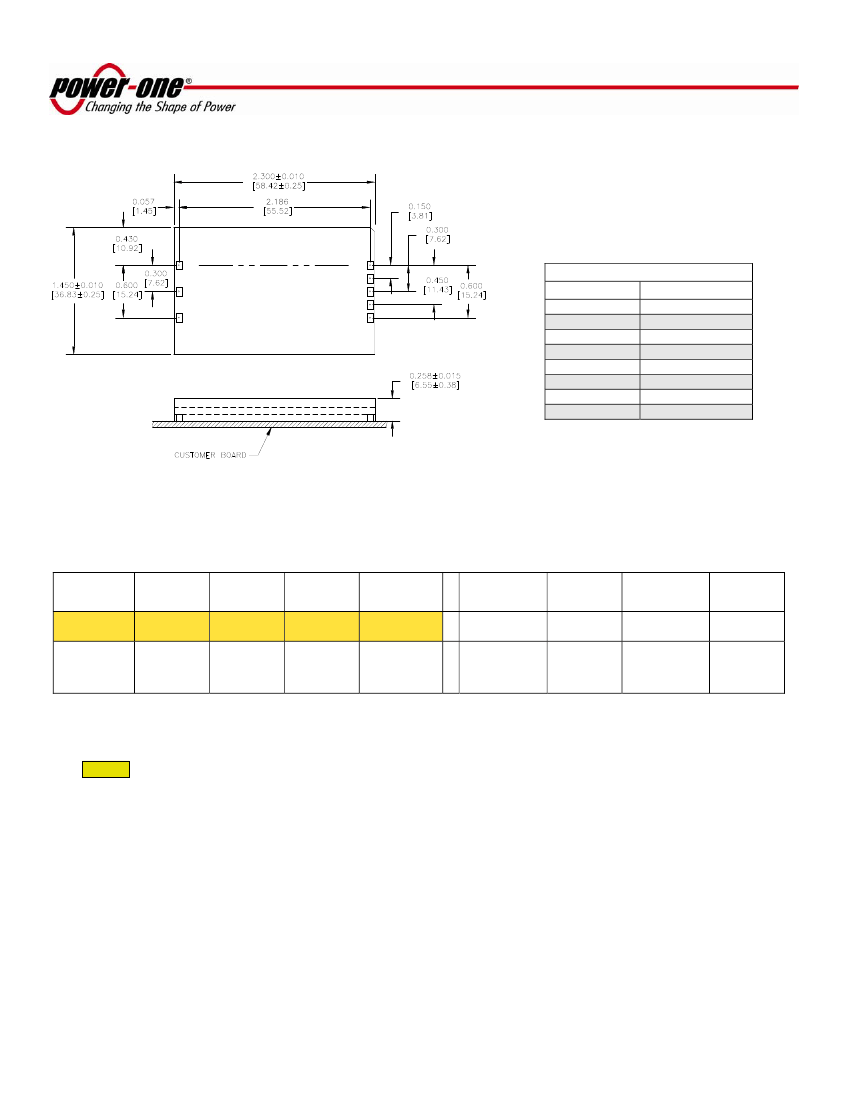

Industry-standard footprint: 1.45” x 2.30”

Meets Basic Insulation Requirements of EN60950

On-board LC input filter

Fixed-frequency operation

Fully protected

Remote output sense

Output voltage trim range: +10%/-20%

Trim resistor via industry-standard equations

High reliability: MTBF 2.6 million hours, calculated per

Telcordia TR-332, Method I Case 1

Positive or negative logic ON/OFF option

UL 60950 recognized in U.S. & Canada, and DEMKO

certified per IEC/EN 60950

Meets conducted emissions requirements of FCC

Class B and EN55022 Class B with external filter

All materials meet UL94, V-0 flammability rating

Load Current [Adc]

500 LFM (2.5 m/s)

400 LFM (2.0 m/s)

300 LFM (1.5 m/s)

200 LFM (1.0 m/s)

100 LFM (0.5 m/s)

30 LFM (0.15 m/s)

Ambient Temperature [°C]

Fig. 1:

Available load current vs. ambient air temperature and air-

flow rates for Q24S25020 converter mounted vertically with air flow-

ing from pin 3 to pin 1, MOSFET temperature



120

C,

Vin = 27 V.

Applications



Telecommunications

Data communications

Wireless

Servers

MCD10154 Rev. 1.0, 9-Apr-10

Page 1 of 14

www.power-one.com
