Designed to Save Time & Money,
Engineered for Safety & Environment
Dual Indication Saves Time & Money by quicker identification,
Insulated Grip enhances the Safety
Cooper Bussmann gives yet another reliable and safe fuse range
to protect circuits and Installations with ease - 500V, NH DIN
style, LV Fuse range with
Double Indication
System and
Optional
Insulated Grips.
Quick & Easy Identification

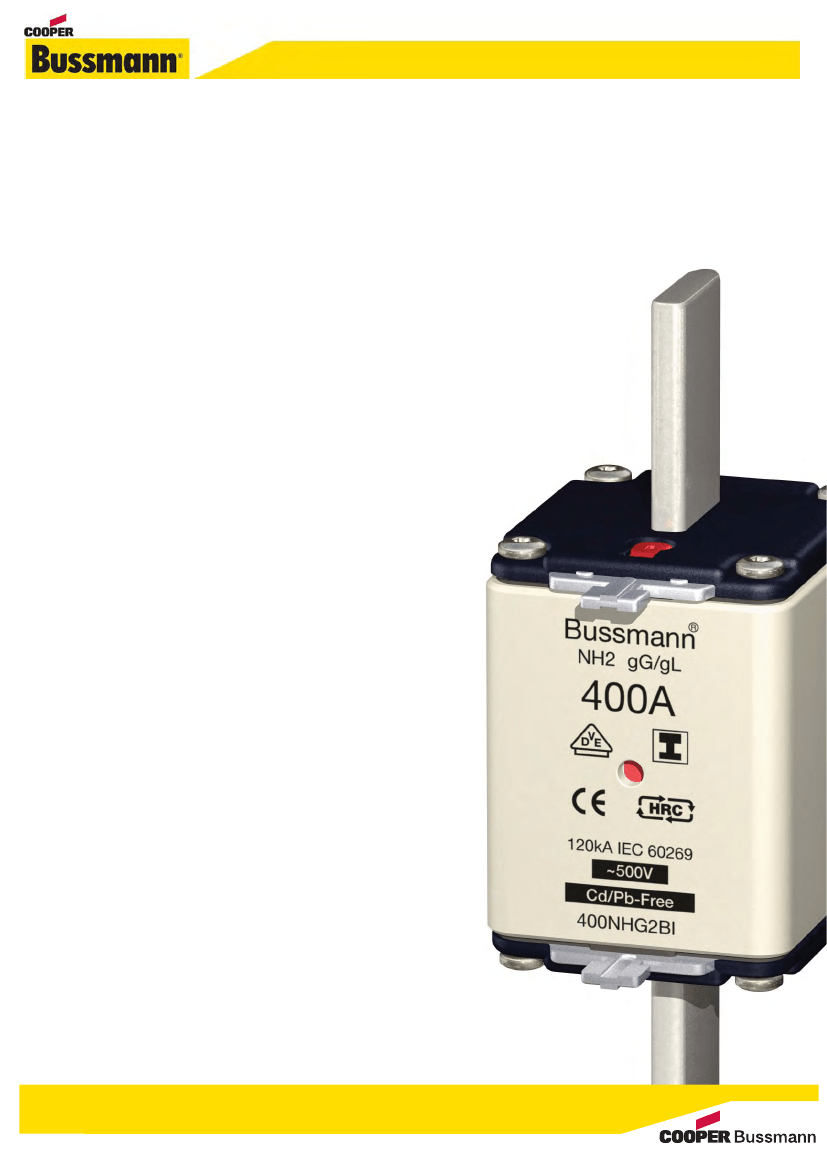

Bussmann's NH dual indicator fuse, India's first, is designed with
additional center indicator in front for easy and quick identification of
operated fuse links, overcoming the problem with conventional
Single(only Top) indicator types due to mounting height, shrouds,
termination,panel darkness, etc.
One of the indicator is always visible in all situations of mounting with
easy and convenient visual identification and another can be used for
remote alarm / annunciation.
Insulated Metal Gripping Lugs (IMGL)
The Dual Indicator range also comes with optional Insulated Metal
Gripping Lugs types, saving the precious installation space and
increasing Clearances thus enhancing the Operators and Installation
Safety. Specially suitable for adverse Industrial environmental
applications of Steel, Cement, Chemical, Oil & Gas, etc.
Unmatched Material & Manufacturing Technology
Fuse links are totally free from Environmentally dangerous Lead &
Cadmium and WEEE & RoHS complaint.
Applications Suitability
500 Volts
- Better suited than ordinary 415V fuses for applications like
Capacitor, Mines, DG Sets, Petrochemical Plants, Power Electronics
System, etc where circuits can attain higher voltages than 415V.
High Breaking Capacity, 120kA
- Suitable for use near the source, even
in big interconnected network systems, including multi source
networks.
Current Limiting Performance
- Low Cut Off and Let Thru Values, can
replace existing fuses without affecting the Type 2 Co–ordination.
Globally Accepted
Manufacturing electrical equipment for exports? The Cooper Bussmann
NH fuse line is acceptable throughout the globe. The range conforms to
IEC / IS(BIS) / VDE and carry stringent globally accepted markings –
VDE / CCC / CE.
Accessories :
Full range of Accessories – Fuse base, Fuse Rail, Fuse Pulling Handle,
Isolating links, etc available.

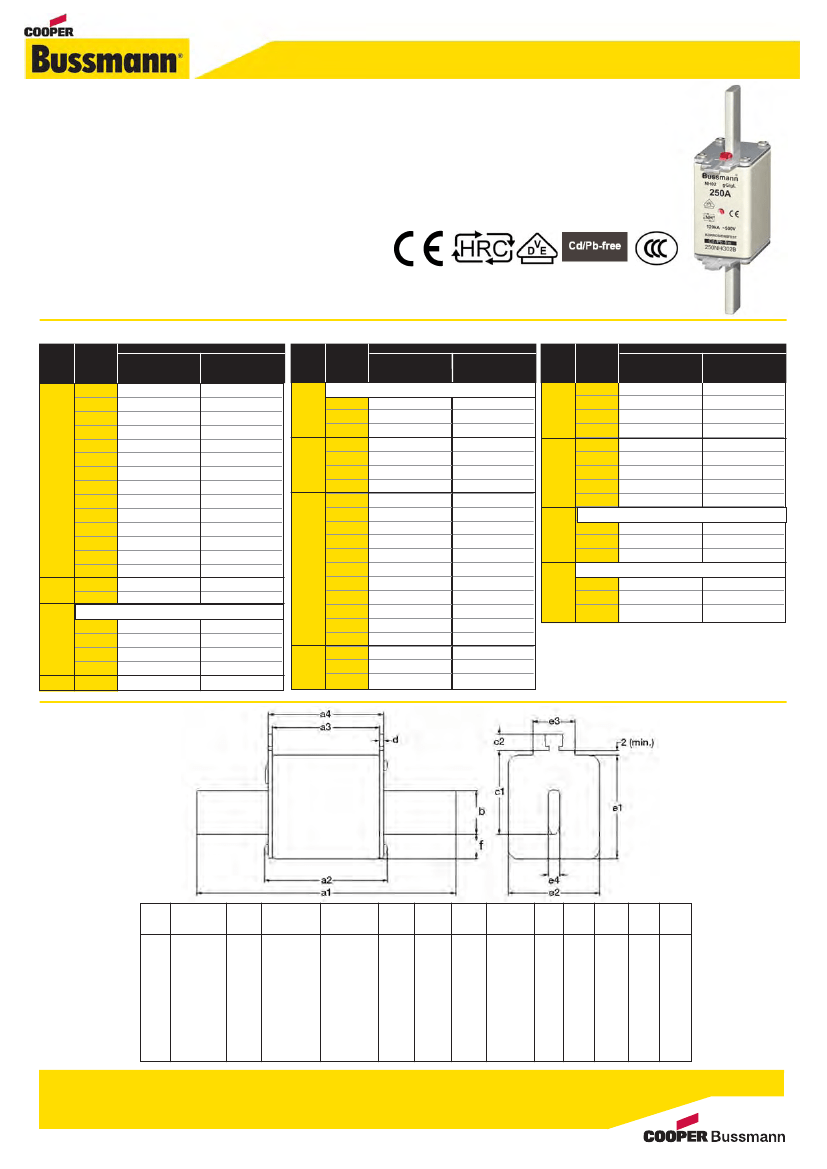

500V, NH DIN style, LV Fuses with Double Indication System
NH Fuse Specification
Description :
Square bodied, industrial fuses for global
electrical protection, Metallic as well as Insulated Tag
variants.
Technical Data :
Voltage Ratings
: 500V AC / 250V DC
Ampere Ratings
: 2A – 630A in Dual indication,
800A – 1600 single(top) indicator
Breaking Capacity
: 120kA @ 500V AC,
Rated Frequency
: 50/60Hz
Sizes
: DIN 000 to 3, 4/4a
Class
: gL/gG
Standards/Approvals :
IEC 60269-1, VDE0636, DIN 43 620, IS 13703
The NH DIN low voltage fuse system offered by
Cooper Bussmann includes fuse links bearing the
following marks :
Environment
:
RoHS compliant, Pb and Cd Free
Packaging :
Packed in 3’s upto 800A
Catalogue Numbers
Size
Rated
Current
(A)
gG - gL Dual Indicator
Voltage free metal
Voltage conducting
gripping insulated
metal gripping lugs
lugs
Size
Rated
Current
(A)
gG - gL Dual Indicator
Voltage free metal
Voltage conducting
gripping insulated
metal gripping lugs
lugs
Size
Rated
Current
(A)
gG - gL Dual Indicator
Voltage free metal
Voltage conducting
gripping insulated
metal gripping lugs
lugs
000
00
2
4
6
10
16
20
25
32
35
40
50
63
80
100
125
160
80
100
125
160
200
0
0s
2NHG000B
2NHG000BI
4NHG000B
4NHG000BI
6NHG000B
6NHG000BI
10NHG000B
10NHG000BI
16NHG000B
16NHG000BI
20NHG000B
20NHG000BI
25NHG000B
25NHG000BI
32NHG000B
32NHG000BI
35NHG000B
35NHG000BI
40NHG000B
40NHG000BI
50NHG000B
50NHG000BI
63NHG000B
63NHG000BI
80NHG000B
80NHG000BI
100NHG000B 100NHG000BI
125NHG00B
125NHG00BI
160NHG00B
160NHG00BI
6A to 63A on request
80NHG0B
-
100NHG0B
-
125NHG0B
-
160NHG0B
-
200NHG0SB
-
01
1
02
2
100
125
160
200
224
250
315
35
40
50
63
80
100
125
160
200
224
250
315
355
400
6A to 80A on request
100NHG01B
100NHG01BI
125NHG01B
125NHG01BI
160NHG01B
160NHG01BI
200NHG1B
200NHG1BI
224NHG1B
224NHG1BI
250NHG1B
250NHG1BI
315NHG1B
-
35NHG02B
35NHG02BI
40NHG02B
40NHG02BI
50NHG02B
50NHG02BI
63NHG02B
63NHG02BI
80NHG02B
80NHG02BI
100NHG02B
100NHG02BI
125NHG02B
125NHG02BI
160NHG02B
160NHG02BI
200NHG02B
200NHG02BI
224NHG02B
224NHG02BI
250NHG02B
250NHG02BI
315NHG2B
315NHG2BI
355NHG2B
355NHG2BI
400NHG2B
400NHG2BI
03
3
250
315
355
400
425
450
500
630
800
800
1000
1250
1000
1250
1600
4*
4A*
250NHG03B
250NHG03BI
315NHG03B
315NHG03BI
355NHG03B
355NHG03BI
400NHG03B
400NHG03BI
425NHG3B
-
450NHG3B
-
500NHG3B
-
630NHG3B
-
800NHG3B*
-
500A / 630A on request
800NH4G
-
1000NH4G
-
1250NH4G
-
630A / 800A on request
1000NH4AG
-
1250NH4AG
-
1600NH4AG
-
Note :
1)
*
- standard single indicator type
2) Also available on request -
- 400 / 415 V class - low watt loss fuses
- aM fuses - 500 V & 690 V class
- gG 690 Volts fuses
Dimensions
Size
000
00
0
0s
01
1
02
2
03
3
a1
78.5 ± 1.5
78.5 ± 1.5
125 ± 2.5
125 ± 2.5
135 ± 2.5
135 ± 2.5
150 ± 2.5
150 ± 2.5
150 ± 3
150 ± 3
a2
(max)
54
54
68
68
75
75
75
75
75
75
a3
a4
(max)
b
(nom)
15
15
15
20
15
20
20
25
25
32
c1(±8)
35
35
35
40
40
40
48
48
60
60
c2
(nom)
10
10
11
11
11
11
11
11
11
11
d
(nom)
2 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
2.5 ± 0.5
3 ± 0.5
e1
e2
e3
e4
f
(max) (max) (max) (max) (max)
41
48
48
53
48
53
53
61
61
76
21
30
30
52
30
52
52
60
60
75
21
25
25
25
25
25
25
25
25
25
6
6
6
6
6
6
6
6
6
6
8
15
15
15
15
15
15
15
15
18
45 ± 1.5
49 ± 1.5
45 ± 1.5
49 ± 1.5
62 ± +3/-1.5 68 ± -1.5/-3
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
62 ± 2.5
68 ± 2.5
