XC6220
Series
1A LDO Voltage Regulator with “GreenOperation”
ETR0341-003
☆GreenOperation-Compatible
■GENERAL
DESCRIPTION
The XC6220 series is a highly accurate, low noise, high speed, low dropout, and large current CMOS voltage regulator with
GreenOperation function. The series consists of a voltage reference, an error amplifier, a current limiter, an inrush current
prevention circuit and a phase compensation circuit plus a driver transistor.
With a 0.2Ω on-resistance driver transistor integrated and with output currents up to 1A, the ultra low dropout voltage
performance greatly extends battery life as does the GreenOperation function which can switch between high speed and
power save modes automatically.
Low ESR ceramic capacitors can be used for the output stabilization capacitor (C
L
).
Output voltage is selectable in 0.05V increments within the range of 0.8V~5.0V, using laser trimming technologies.
An over current protection circuit and a thermal shutdown circuit are built in. The over current protection circuit will operate
when the output current reaches its limit current. The thermal shutdown circuit will operate when the junction temperature
reaches its limit temperature. The inrush protection circuit works by controlling the inrush current which is charged to C
L
when
the IC starts up. In this way, any fluctuations to V
IN
caused by inrush current during system start up can be minimized.
The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power
consumption.
■APPLICATIONS
●CD-ROM,
CD-R/RW drives
●DVD
drives
●HDD
drives
●MIDs,
UMPCs
●Digital
still cameras, Video cameras
●Portable
AV equipment
■FEATURES
Maximum Output Current
Dropout Voltage
Operating Voltage Range
Output Voltage Range
Accuracy
Low Power Consumption
Operating Temperature
Thermal Shutdown
Inrush Current Protection
C
L
Auto Discharge
CE Pull-Down Resistor
Output Capacitor
Packages
: 1000mA (TYP.:1200mA limit)
(1.2V≦V
OUT
≦5.0V)
: 20mV @ 100mA (V
OUT
=3.0V)
: 60mV@ 300mA (V
OUT
=3.0V)
: 1.6V ~ 6.0V
: 0.8V ~ 5.0V (0.05V increments)
:±1% (V
OUT
≧2.0V)
:±20mV (V
OUT
＜2.0V)
: 8μA (TYP.) in PS mode
: 50μA (TYP.) in HS mode
: - 40℃~ +85℃
: Detect 150℃, Release 135℃(TYP.)
: 700mA (MAX.)
: XC6220B/D Series
: XC6220C/D Series
: Ceramic Capacitor Compatible
: USP-6C, SOT-25, SOT-89-5
■TYPICAL
APPLICATION CIRCUIT
1/19
XC6220
Series
■PIN
CONFIGURATION
VOUT
5
VOUT
5
2
VIN
4
NC
4
VIN
VIN
VSS
6
5
4
1
2
3
VOUT
VOUT
CE
1
2
3
1
2
3
VIN
VSS
CE
CE
VSS
NC
USP-6C
SOT -25
SOT-89-5
(BOTTOM VIEW)
* The No.5 and 6 V
IN
pins should be connected. The
No.1 and 2 pins V
OUT
pins should be connected. The
dissipation pad for the USP-6C package should be
solder-plated in recommended mount pattern and
metal masking so as to enhance mounting strength
and heat release.
If the pad needs to be connected
to other pins, it should be connected to the V
SS
(No. 4)
( TOP VIEW)
(TOP VIEW)
■PIN
ASSIGNMENT
SOT-25
3
1
2
5
4
PIN NUMBER
SOT-89-5
1
4
2
5
3
USP-6C
3
6&5
4
1&2
-
PIN NAME
CE
V
IN
V
SS
V
OUT
NC
FUNCTIONS
ON/OFF Control
Power Input
Ground
Output
No connection
2/19
XC6220
Series
■PRODUCT
CLASSIFICATION
●Selection
Guide
Please see the optional setting for C
L
discharge and internal CE pull-down.
PRODUCT NAME
XC6220A
XC6220B
XC6220C
XC6220D
CONDITIONS
without CE Pull-down resistor, without C
L
auto discharge (Semi-custom)
without CE Pull-down resistor, with C
L
auto discharge (Standard)
with CE Pull-down resistor, without C
L
auto discharge (Semi-custom)
with CE Pull-down resistor, with C
L
auto discharge (Semi-custom)
●Ordering
Information
XC6220
①②③④⑤⑥
DESIGNATOR
DESCRIPTION
Type of CE
Output Voltage
SYMBOL
A
B
C
D
08~50
DESCRIPTION
without CE Pull-down resistor, without C
L
discharge (Semi-custom)
without CE Pull-down resistor, with C
L
discharge (Standard)
with CE Pull-down resistor, without C
L
discharge (Semi-custom)
with CE Pull-down resistor, with C
L
discharge (Semi-custom)
e.g. 3.0V
→ ①=3, ②=0
Output voltage {○.○0v} (the 2
nd
decimal place is “0”)
:HS Mode
Accuracy±1%(V
OUT(T)
≧2.1V),
within 0.02V (V
OUT(T)
≦2.0V)
:PS Mode
Accuracy±2%(V
OUT(T)
≧2.1V),
within 0.04V (V
OUT(T)
≦2.0V)
Output voltage {○.○5v} (the 2
nd
decimal place is “5”)
:HS Mode
Accuracy±1%(V
OUT(T)
≧2.05V),
within 0.02V (V
OUT(T)
≦1.95V)
:PS Mode
Accuracy±2%(V
OUT(T)
≧2.05V),
within 0.04V (V
OUT(T)
≦1.95V)
SOT-25
SOT-89-5
USP-6C
①
② ③
1
④
Output Voltage
Accuracy
B
⑤⑥
Packages
Taping Type
(*1)
MR
PR
ER
(*1)
The device orientation is fixed in its embossed tape pocket.
For reverse orientation, please contact your local Torex sales office or representative.
(Standard orientation:
⑤R,
Reverse orientation:
⑤L)
3/19
XC6220
Series

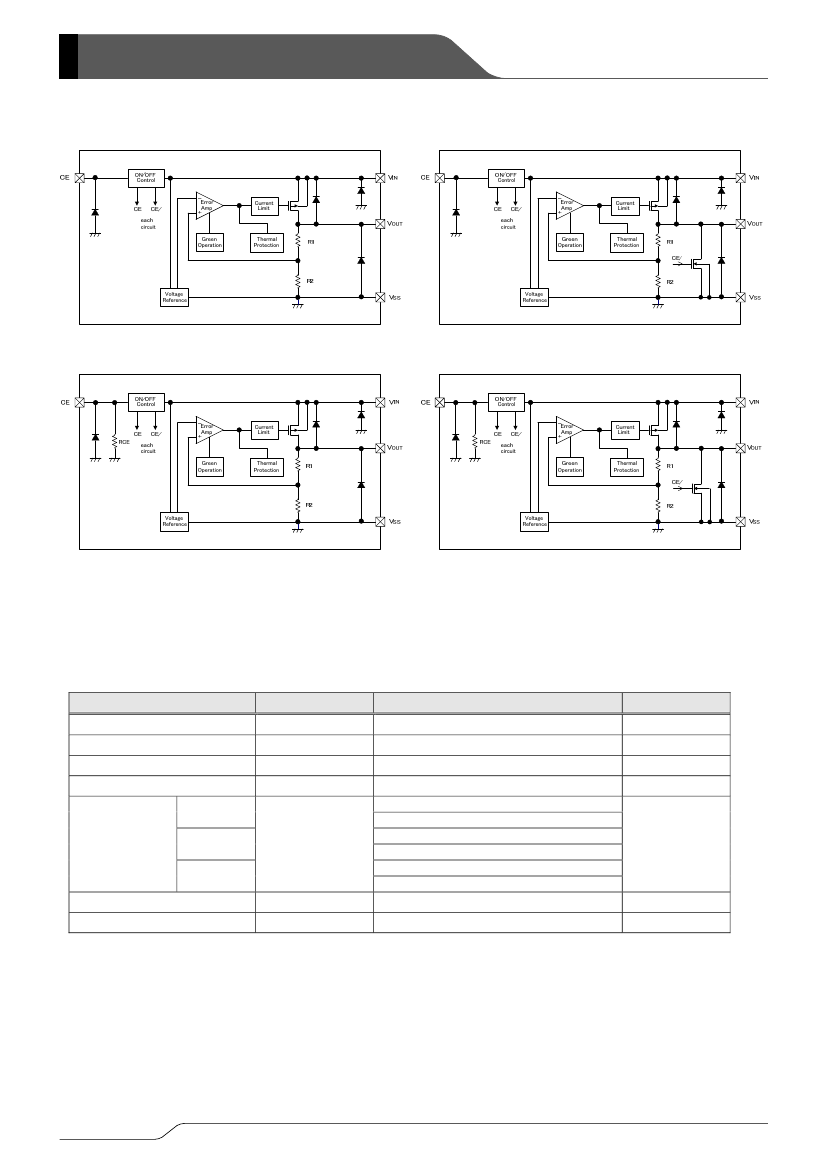

■BLOCK
DIAGRAMS
●XC6220A
Series (Semi-custom)
●XC6220B
Series
●XC6220C
Series (Semi-custom)
* Diodes inside the circuits are ESD protection diodes and parasitic diodes.
●XC6220D
Series (Semi-custom)
■ABSOLUTE
MAXIMUM RATINGS
Ta=25℃
PARAMETER
Input Voltage
Output Current
(*1)
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
RATINGS
6.5
1400
V
SS
-0.3 ~ V
IN
+0.3
V
SS
-0.3 ~ 6.5
250
(*2)
600
（PCB
mounted）
500
(*2)
1300
（PCB
mounted）
120
1000
（PCB
mounted）
(*2)
- 40 ~ + 85
- 55 ~ + 125
UNITS
V
mA
V
V
Output Voltage
CE Input Voltage
SOT-25
Power Dissipation
SOT-89-5
USP-6C
Operating Temperature Range
Storage Temperature Range
Pd
mW
Topr
Tstg
℃
℃
*1 Please use within the range of I
OUT
=Pd / (V
IN
– V
OUT
)
*2: The power dissipation figure shown is PCB mounted. Please refer to pages 15∼17 for details.
4/19
XC6220
Series
■ELECTRICAL
CHARACTERISTICS
●XC6220A/B/C/D
Series
PARAMETER
SYMBOL
CONDITIONS
High Speed Mode (HS)
2.0V≦V
OUT(T)
≦5.0V
V
CE
=V
IN
, I
OUT
=30mA
High Speed Mode (HS)
0.8V≦V
OUT(T)
≦1.95V
V
CE
=V
IN
, I
OUT
=30mA
Power Save Mode (PS)
2.0V≦V
OUT(T)
≦5.0V
V
CE
=V
IN
, I
OUT
=0.1mA
Power Save Mode (PS)
0.8V≦V
OUT(T)
≦1.95V
V
CE
=V
IN
, I
OUT
=0.1mA
High Speed Mode(HS)、V
CE
=V
IN
V
IN
=V
OUT(T)
+1.0V
0.8V≦V
OUT(T)
≦1.15V
Output Current
I
OUTMAX
High Speed Mode(HS)、V
CE
=V
IN
V
IN
=V
OUT(T)
+1.0V
1.2V≦V
OUT(T)
≦5.0V
Load Regulation
Dropout Voltage1
(*4)
Dropout Voltage2
(*4)
ΔV
OUT
Vdif
Vdif
High Speed Mode (HS), V
CE
=V
IN
10mA≦I
OUT
≦300mA
High Speed Mode (HS)
I
OUT
=300mA, V
CE
=V
IN
High Speed Mode(HS)
I
OUT
=1000mA, V
CE
=V
IN
High Speed Mode(HS)
V
IN
=V
CE
=V
OUT(T)
+1.0V
I
OUT
=10mA (A/B Series)
High Speed Mode(HS)
V
IN
=V
CE
=V
OUT(T)
+1.0V
I
OUT
=10mA (C/D Series)
Power Save Mode(PS)
V
IN
=V
CE
=V
OUT(T)
+1.0V
I
OUT
=0.1mA
Power Save Mode(PS)
V
IN
=V
CE
=V
OUT(T)
+1.0V
I
OUT
=0.1mA
V
IN
=6.0V, V
CE
=V
SS
V
OUT(T)
+0.5V≦V
IN
≦6.0V
：1.1V≦V
OUT(T)
≦5.0V
High Speed Mode (HS), V
CE
=V
IN
I
OUT
=100mA
1.6V≦V
IN
≦6.0V
：0.8V≦V
OUT(T)
≦1.05V
High Speed Mode (HS), V
CE
=V
IN
I
OUT
=100mA
1000
1200
-
MIN.
×0.99
TYP.
MAX.
×1.01
UNITS
Ta=25℃
CIRCUIT
-0.02
V
OUT(T)
(*3)
+0.02
V
×1.02
①
Output Voltage
V
OUT(E)
(*2)
×0.98
-0.04
+0.04
700
1200
-
mA
①
-
10
45
mV
mV
mV
①
①
①
see the Voltage Chart
see the Voltage Chart
-
-
-
-
-0.1
50
50
8
8
0.01
108
see the
Voltage
Chart
18
see the
Voltage
Chart
0.1
Supply Current 1
I
SS1
μA
②
Supply Current 2
I
SS2
μA
②
Stand-by Current
I
STBY
μA
②
Line Regulation
ΔV
OUT
/
(ΔV
IN
・V
OUT
)
-
0.01
0.20
%/V
①
Input Voltage
Output Voltage
Temperature
Characteristics
V
IN
ΔV
OUT
/
(ΔTa・V
OUT
)
High Speed Mode (HS), V
CE
=V
IN
I
OUT
=30mA
-40℃≦Ta≦85℃
1.6
-
-
±100
6.0
-
V
ppm/℃
①
5/19
