TXA277K015P1G-F: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 10% +Tol, 10% -Tol, 270uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size320KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

TXA277K015P1G-F Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 10% +Tol, 10% -Tol, 270uF, Through Hole Mount, AXIAL LEADED

TXA277K015P1G-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2098156518
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	270 µF
Capacitor type	TANTALUM CAPACITOR
diameter	8.92 mm
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.02 mA
length	23.42 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	15 V
surface mount	NO
Delta tangent	0.08
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

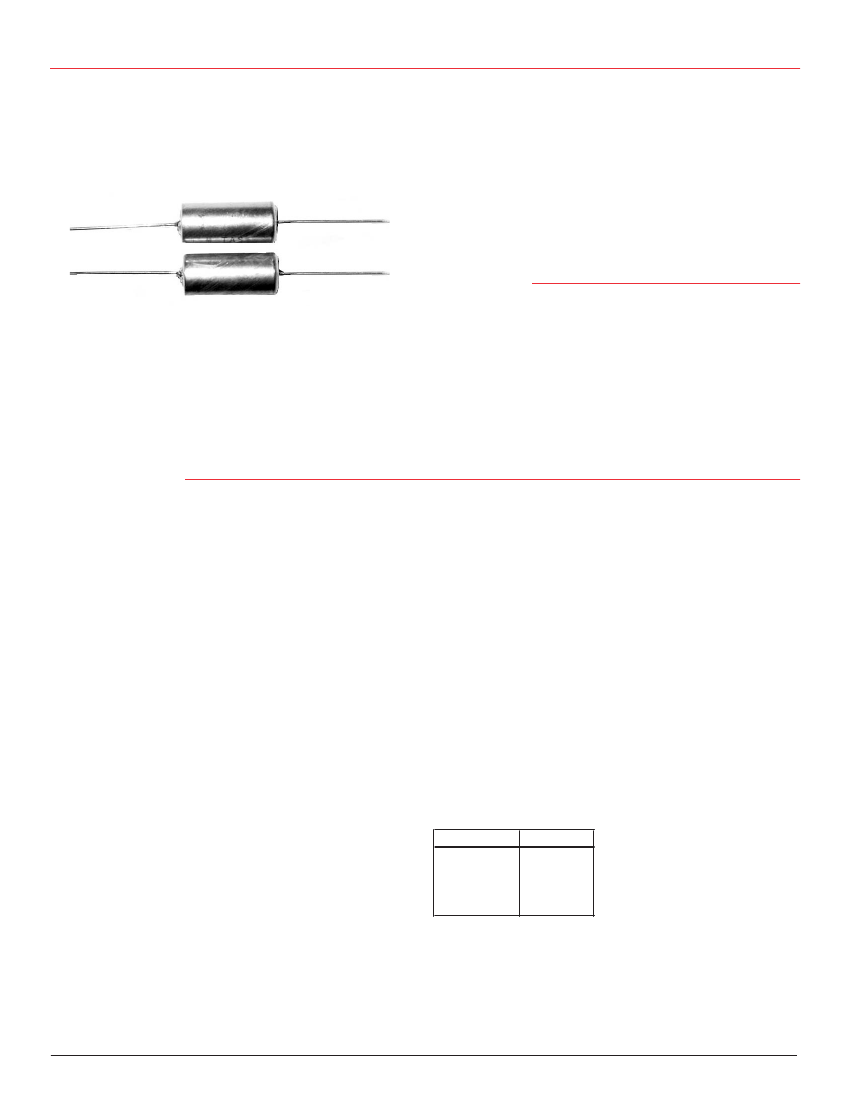

Type TXA

Solid Tantalum Capacitors

Hermetically Sealed Axial Lead Solid Tantalum Capacitors

The Type TXA has an extended capacitance range, and,

like the Type TAS, is a solid tantalum axial lead capacitor

constructed with a rugged hermetically sealed metal case

insulated with an outer polyester wrap and is ideal for use in

the harsh environments of military and industrial applications.

The TXA assures a small case size for high capacitance, and

is frequency and temperature stable.

Highlights

♦

Extended Capacitance Range

Hermetically Sealed

Low DC Leakage

Low Dissipation Factor

Temperature and Frequency Stable

Moisture & Solvent Resistant

Miniature Size

Long Shelf Life

Specifications

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature:

1.2 µF to 1000 µF

6 WVdc to 50 WVdc @ 85 ºC

±10%, ±20% (±5% by special order)

–55 ºC to +125 ºC ( With proper derating)

15% of rated voltage @ 25 ºC

5% of rated voltage @ 85 ºC

1% of rated voltage @ 125 ºC

At +25 ºC - (See Ratings)

At +85 ºC - 10 x Ratings limit

At +125 ºC - 12.5 x Ratings limit

–10% @ –55 ºC

+8% @ +85 ºC

+12% @ +125 ºC

Case Code

A

C

F

G

Watts

0.090

0.100

0.125

0.180

Reverse Voltage (Non-continuous):

DC Leakage:

Capacitance Change Maximum:

Maximum Power Dissipation @ 25 ºC:

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
