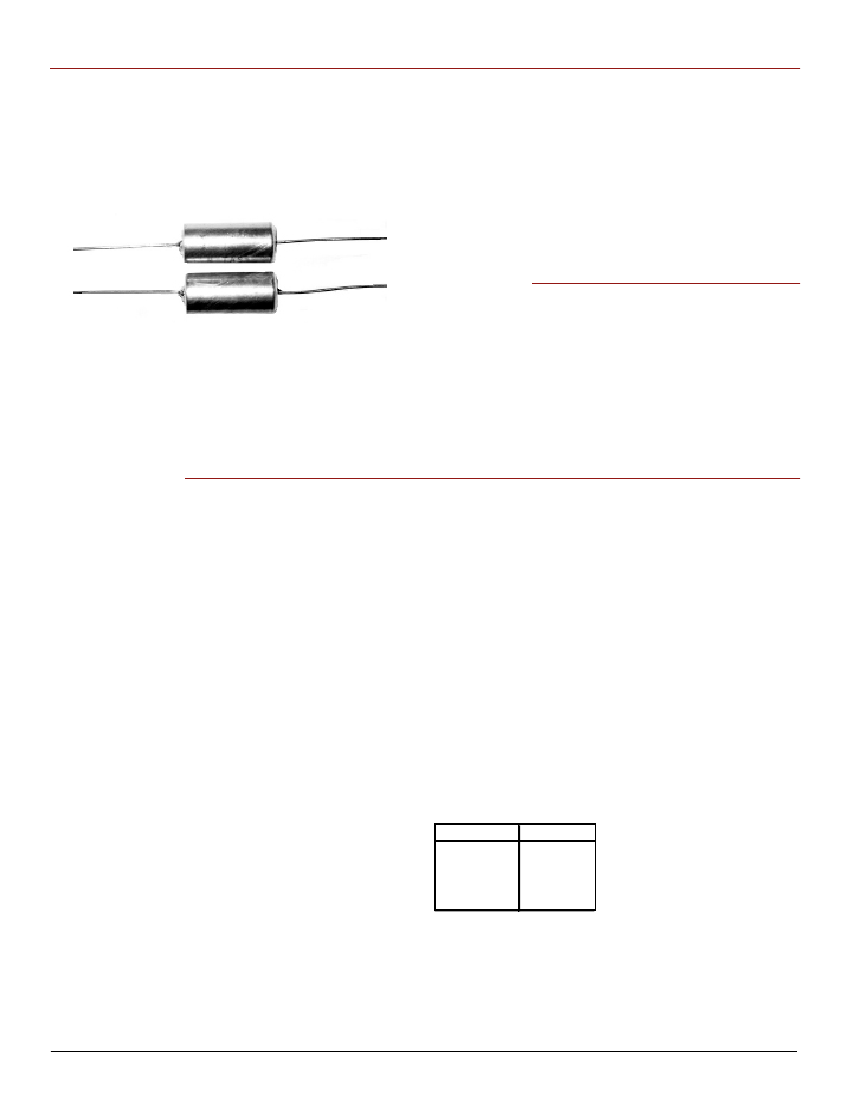

Type TXA
Solid Tantalum Capacitors
Hermetically Sealed Axial Lead Solid Tantalum Capacitors
The Type TXA has an extended capacitance range, and,
like the Type TAS, is a solid tantalum axial lead capac-
itor constructed with a rugged hermetically sealed
metal case insulated with an outer polyester wrap and
is ideal for use in the harsh environments of military
and industrial applications. The TXA assures a small
case size for high capacitance, and is frequency and
Highlights
♦
♦
♦
♦
♦
♦
♦
♦
Specifications
Reverse Voltage (Non-continuous):
M
ET
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature:
1.2 µF to 1000 µF
6 WVdc to 50 WVdc @ 85 ºC
±10%, ±20% (±5% by special order)
–55 ºC to +125 ºC ( With proper derating)
15% of rated voltage @ 25 ºC
5% of rated voltage @ 85 ºC
1% of rated voltage @ 125 ºC
U
ED
C
Capacitance Change Maximum:
O
N
TA
C
T
KE
DC Leakage:
At +25 ºC - (See Ratings)
At +85 ºC - 10 x Ratings limit
At +125 ºC - 12.5 x Ratings limit
–10% @ –55 ºC
+8% @ +85 ºC
+12% @ +125 ºC
Case Code
A
C
F
G
Watts
0.090
0.100
0.125
0.180
D
IS
C
O
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
N
TI
N
Maximum Power Dissipation @ 25 ºC:
FO
R
EQ
U
Extended Capacitance Range
Hermetically Sealed
Low DC Leakage
Low Dissipation Factor
Temperature and Frequency Stable
Moisture & Solvent Resistant
Miniature Size
Long Shelf Life
IV
AL
EN
T
R
EP
LA
C
EM
EN
T
Type TXA
Solid Tantalum Capacitors
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confirming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specific customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
