Power Entry Modules with Line Filter
www.schurter.com/PG06

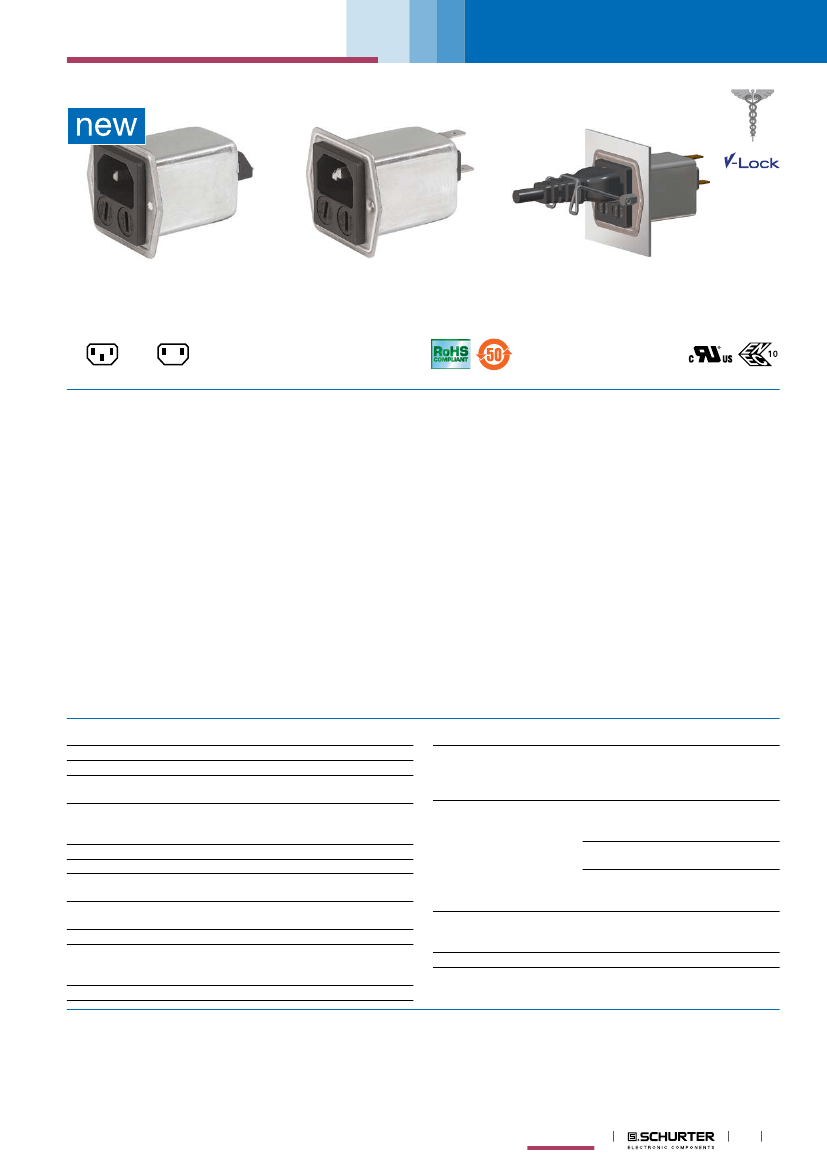

IEC Appliance Inlet C14 or C18 with Filter, Protection Degree IP65 into the Appliance, Fuseholder 1- or
2-pole, Front or Rear Mounting
5707
Medical fuse drawer
Mounting from front side
Mounting from rear side
5707 with sealing kit IP 54 for cord connection
C14
70° C
C18
70° C
Description
- Panel Mount:
Screw-on version from front or rear side, Screws with sealing are inclu-
ded
- 4 Functions:
Appliance Inlet protection class I or II, Line filter in standard and medi-
cal version, Fuseholder for fuse-links 5 x 20 mm, IP 65 protection into
the appliance
- For front side mounting versions a sealing kit IP 54 for the power sup-
ply connection is available as an accessory: 4700.0021
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- Extreme robust design
- All single elements are already wired
- Screw type fuse carrier, slotted
Fuseholder meets requirements of medical standard IEC/EN 60601-1
The fuseholder can only be opened with the aid of a tool
The fuseholder is accessible from the equipment front
- With EMC-shield
- Especially for applications in rough environments
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Approvals
Other versions on request
-
-
-
-
-
- VDE Certificate Number: 40016382
- UL File Number: E72928
With solder terminals
Class X1- and Y1-capacitors for enhanced withstand voltage
Medical version M80
Additional factory-mounted sealing (IP54) of power input
Version with current rating 3 A
Weblinks
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-
Stock-Check, Distributor-Stock-Check, Accessories, Wire Harnessing
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 8 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 8 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 65 acc. to IEC 60529
from rear-side IP 65 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw, max 3 mm
Mounting screw torque max 0.8 Nm
2 screws M3 with sealing are provided
black / metallic, UL 94V-0
Appliance-Inlet/-Outlet
C14 / C18 acc. to IEC 60320
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 8 A,
Protection Class I or II
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 1.6 W 1-pole/ 1,2 W 2-pole per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 2'800'000 h acc. to MIL-HB-217 F
Fuseholder
Allowable Operation Temp.
Climatic Category
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Filter
MTBF
Material: Housing
Connectors
1
Power Entry Modules with Line Filter
www.schurter.com/PG06
5707
Mounting standard version
A
2
2
1
2
3/4
B
3
1
C
4
1

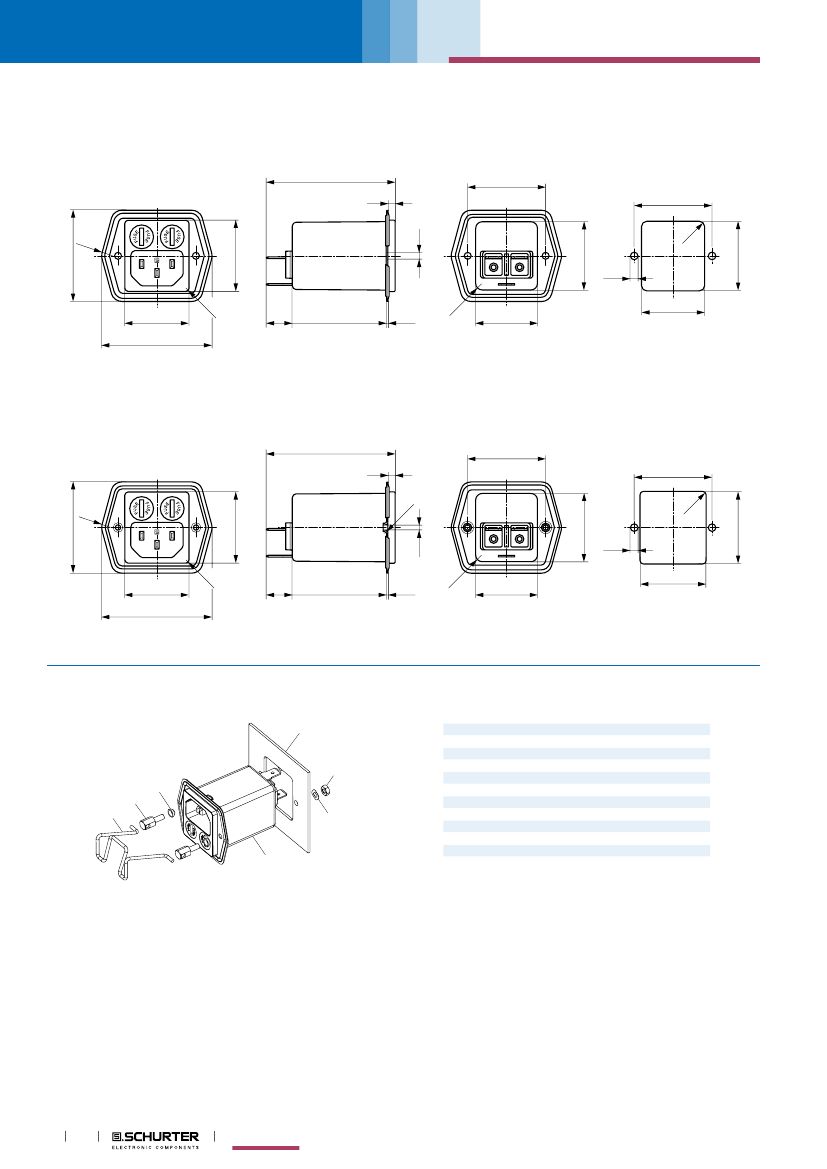

A) front view
B) detail front mounting type
C) detail rear mounting type
1) sealing of flange
2) sealing of fuseholder
3) sealing of screw hole (front mounting type: sealing ring on screw head)
4) sealing of screw hole (rear mounting type: sealing on screw thread)
Important:
- use supplied fuse caps (2) and mounting screws (3/4)
- optimal sealing requires even and solid panel opening
- recommended tightening torque for mounting screws (2/3/4): 0.5-0.8 Nm
- IP65 protection between the inlet and connector pins, but no IP rating between the connector pins and the plug of the power cord!
Technical Data of Filter-Components
Rated Current
[A]
1
2
4
6
8
1
2
4
6
8
2
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
Inductances
L [mH]
2 x 12
2 x 5.2
2x2
2 x 0.8
2 x 0.4
2 x 12
2 x 5.2
2x2
2 x 0.8
2 x 0.4
2 x 5.2
Capacitance
CX [nF]
100
100
100
100
100
100
100
100
100
100
100
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
470
R [MΩ]
1
1
1
1
1
1
1
1
1
1
1

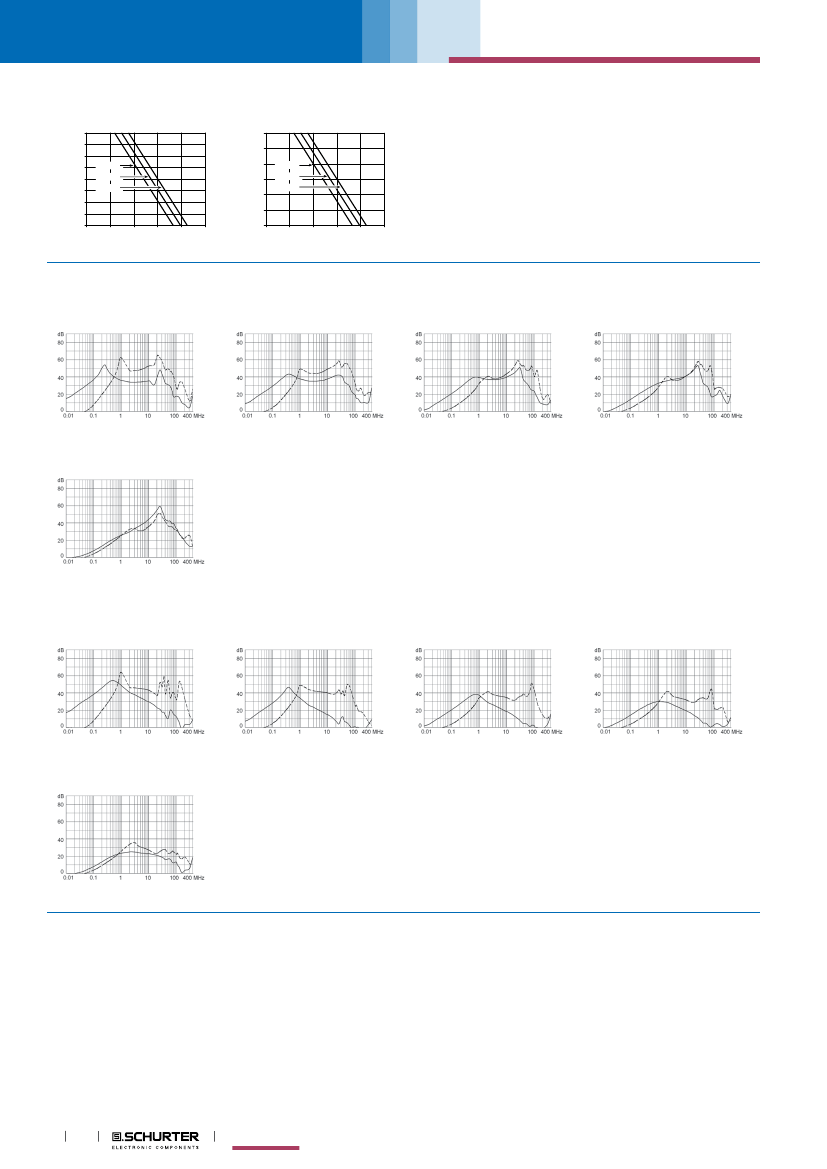

Diagrams
Standard version
Medical version M5
L
1) PE
F1
Cx
R
L'
L1
Cy
L2
Cy
L
F1
Cx
R
L1
L'
PE' 2)
PE' 2)
1) PE
N'
F2
N
N
F2
L2
N'
1) Line
2) Load
1) Line
2) Load
Connectors
3
Power Entry Modules with Line Filter
www.schurter.com/PG06
5707
Screw-on version from rear with
pre-formed, threaded holes for
M3 screws
Protection Class
Fuseholder
Order Number
All Variants
Rated Cur-
rent [A]
Filter-Type
Screw-on or rivet mounting ver-
sion from front side
1
2
4
6
8
1
2
4
6
8
1
2
4
6
8
8
1
2
4
6
8
8
1
2
4
6
8
1
1
2
2
4
4
6
6
8
8
1
2
4
6
8
1
2
4
6
8
2
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
II
II
II
II
II
II
II
II
II
II
I
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
5707.0101.112
5707.0201.112
5707.0401.112
5707.0601.112
5707.0801.112
5707.0101.113
5707.0201.113
5707.0401.113
5707.0601.113
5707.0801.113
5707.0101.312
5707.0201.312
5707.0401.312
5707.0601.312
5707.0801.312
█
█
█
5707.0801.312.01
█
5707.0101.313
5707.0201.313
5707.0401.313
5707.0601.313
5707.0801.313
5707.0801.313.21
5707.0103.312
5707.0203.312
5707.0403.312
5707.0603.312
5707.0803.312
5707.0103.313
5707.0103.313.21
5707.0203.313
5707.0203.313.21
5707.0403.313
5707.0403.313.21
5707.0603.313
5707.0603.313.21
█
5707.0803.313
5707.0803.313.21
5707.0103.412
5707.0203.412
5707.0403.412
5707.0603.412
5707.0803.412
5707.0103.413
5707.0203.413
5707.0403.413
5707.0603.413
5707.0803.413
5707.0205.312.01
█
█
Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
In addition to the IP 65 sealing to the appliance (standard version), the power input can be protected from ingressing fluids and dust with IP 54. This option is only available
for front side mounting versions and can be ordered with ending ".01" (5707.xxxx.xxx.01). For the front mounting a cord retaining set is available for fixing the cord connector:
4700.0021 (sample 4700.0021.H)
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching sys-
tem prevents against accidental removal of the cordset.
Connectors
5
