4840.5201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4840.5201

4840.5201: DescriptionDC power connectors adaptr cabl 2.1mm RA; CategoryThe connector The connector; File Size212KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

4840.5201 Overview

DC power connectors adaptr cabl 2.1mm RA

4840.5201 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
Is Samacsys	N
Body/casing type	PLUG
Connector type	CIRCULAR DC POWER CONENCTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

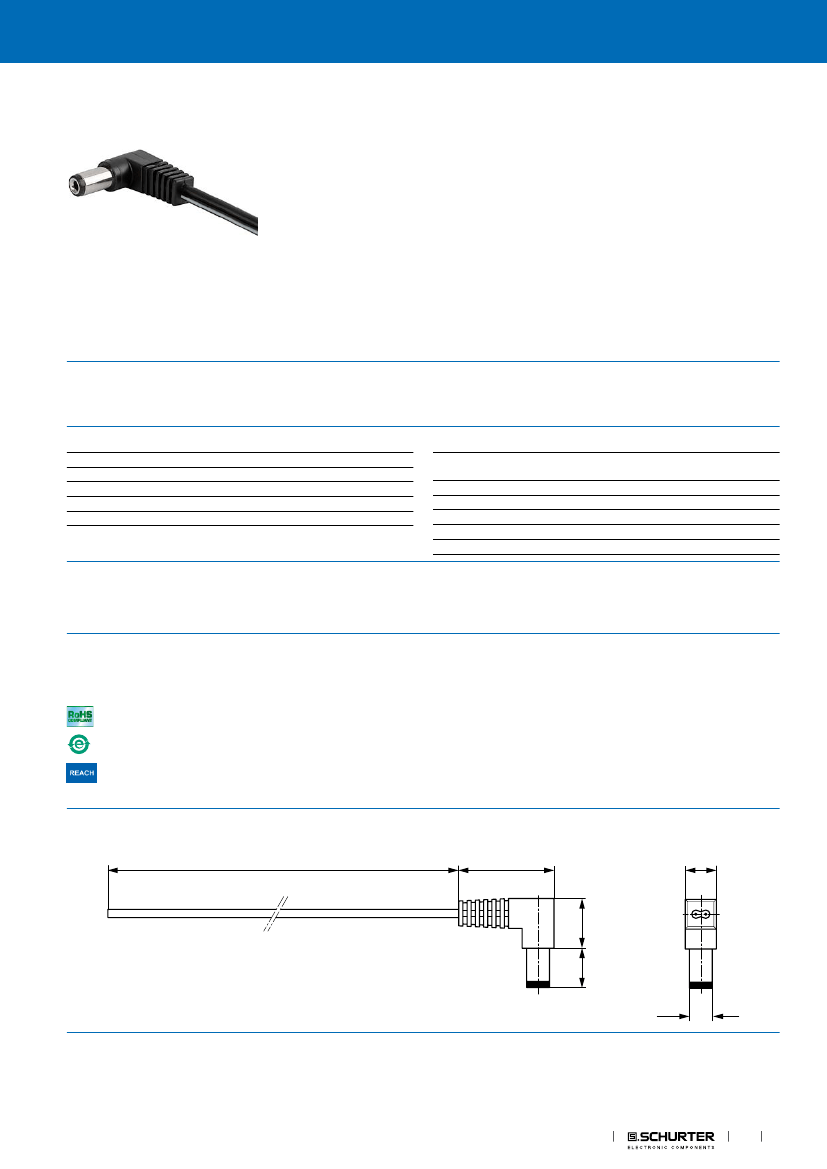

DC Plug/Socket

https://www.schurter.com /PG12_2

4840.5201

4840, Cable, Plug, 5.5 mm, 2-pole, DC Plug/Socket

See below:

Approvals and Compliances

Description

- pre-assembled cable

- Low Voltage DC Plug and Socket

- DC Plug: 2-pole , angled

Technical Data

Diameter

Number of Poles

Ratings DC

Dielectric Strength

Insulation Resistance

5.5 mm / 2.1 mm

2-pole

0.5 A / 12 VDC

500 VDC

> 100 MΩ␣ @ 500 VDC

Allowable Operation Tempe-

rature

Terminal

Cord Lenght

Cable Cross Section

Style

Lifetime

-20 °C to 70 °C

Cable

1.8 m

2 x 0.3 mm²

angled

5000 Insertions

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

Compliances

The product complies with following Guide Lines

Identification

Details

RoHS

China RoHS

REACH

Initiator

SCHURTER AG

Description

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

Dimensions [mm]

1800

23.0

7.5

9.5

12.0

ø 5.5

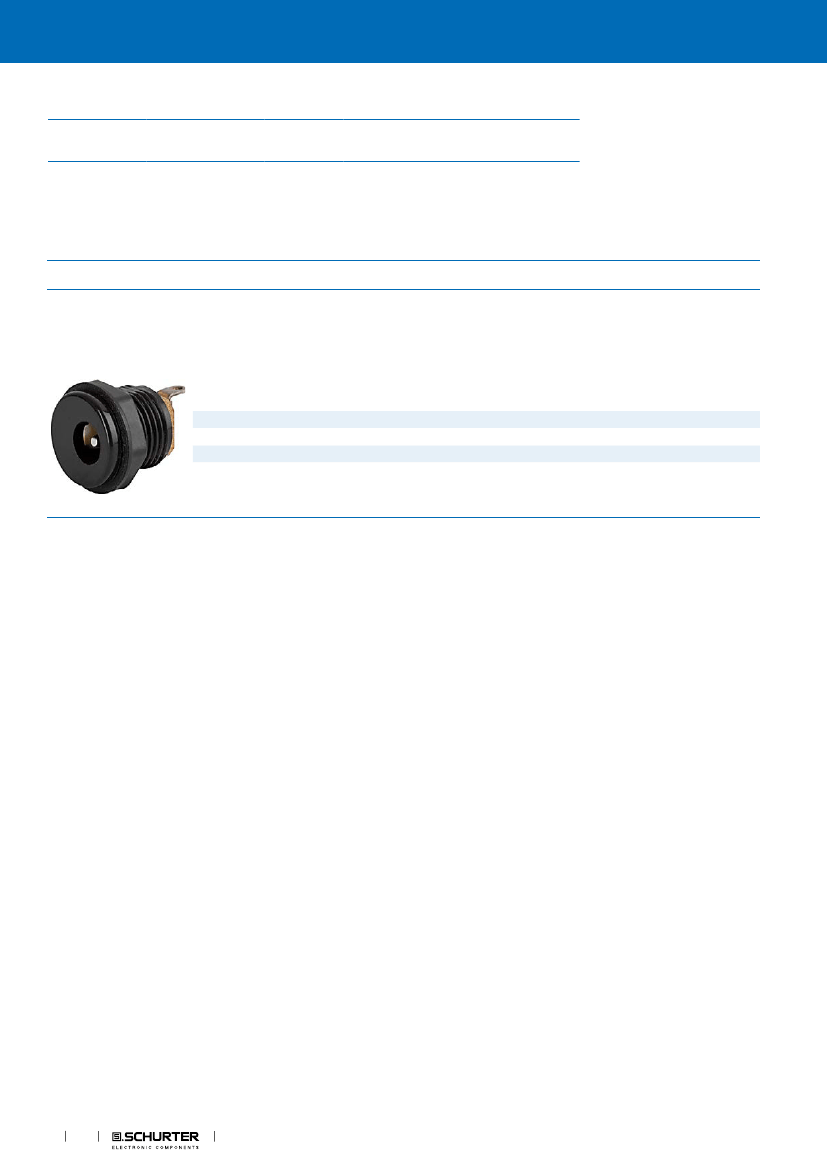

Appliance Inlet
