0.82
20.9
SLEEVE TERMINAL
CABLE CLAMP
HANDLE
SHIPPED
UNASSEMBLED
TIP TERMINAL
COUPLING RING
0.49
12.3
1.70
43.2
FLOATING LOCKRING
5/16-32 NEF-2B
INTERNAL THREAD
0.38
9.5
SECTION A-A
NOTES:
1. MATERIALS:
CONDUCTORS, LOCKRING - BRASS, NICKEL PLATED
TERMINALS - BRASS, TIN PLATED
INSULATORS, HANDLE - THERMOPLASTIC
2. THIS PRODUCT IS RoHS COMPLIANT
1.00
25.3
0.218
5.5
REF
0.374
9.5
5/16-24 UNF-2A
THREAD
0.41
10.5
PART
NUMBER
760K
765K
HANDLE
COLOR
BLACK
RED
0.218 ID REF
5.5
A
A
0.10 ID REF
2.5
0.06
1.6

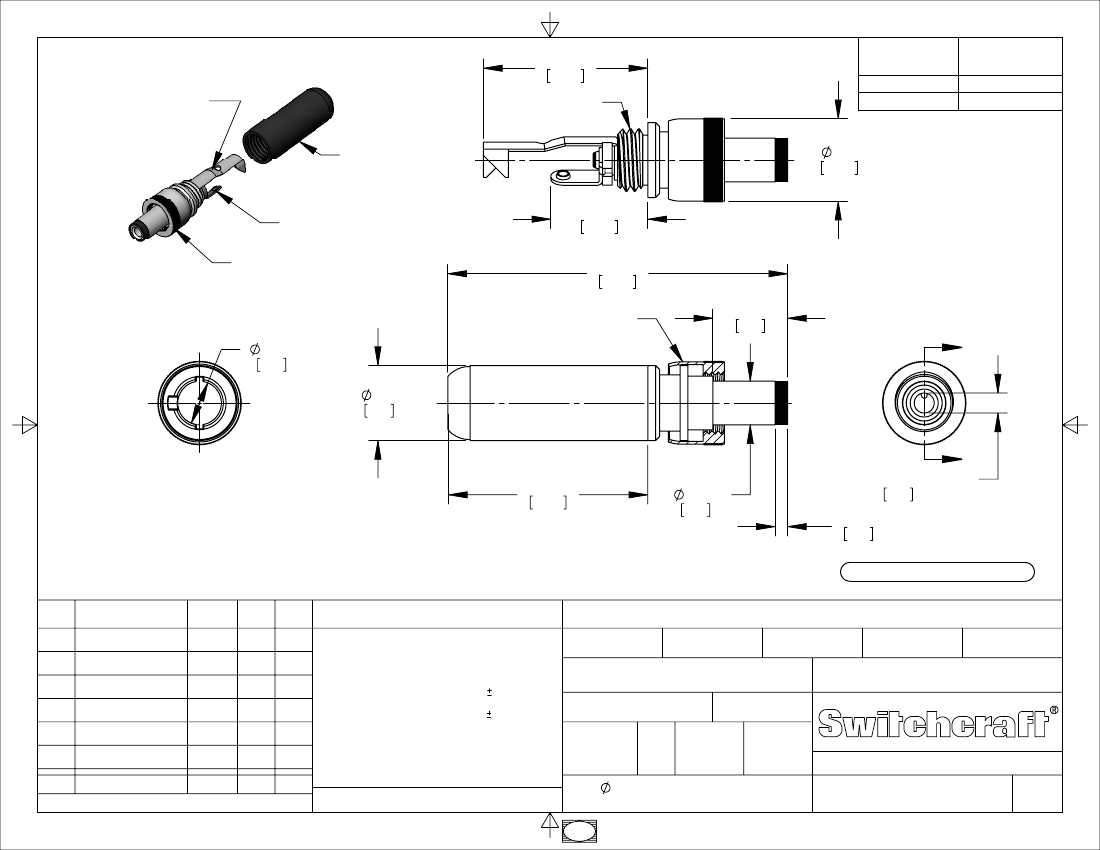

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SIZE
FINISH
*
WIDTH
*
*
*
*
MULT
*
MATERIAL
SPEC No.
LBS/M
*
TEMPER
SPEC No.
FIRST USED ON
DATE DRAWN
BY
SCALE
*
*
*
2:1
C
REV
25989
ECO NUMBER
11-13-08
DATE
JEB
BY
TJK
APVD
3-31-09
JEB
JEB
3-31-09
CHKD
TJK
3-31-09
PART No.
APVD
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME
0.10 [2.5]mm x 0.374 LONG
POWER PLUG W/LOCKRING, RoHS
760K-765K
SolidWorks CAD File
C
A
