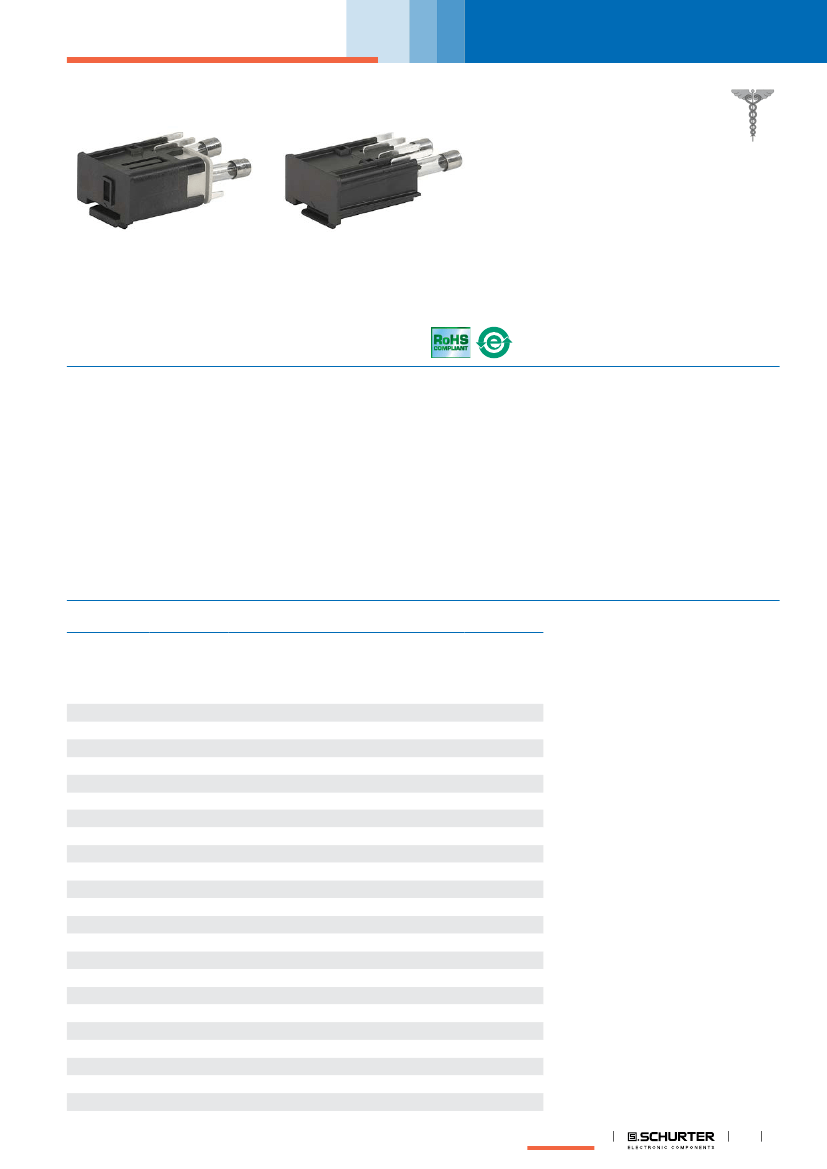

Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm
Fusedrawer 3
Standard or Medical Fuse drawer
Fuse drawer "Fingergrip" with voltage selector
(Fuse links not enclosed)
Fuse drawer "Extrasafe" without voltage se-
lector
(Fuse links not enclosed)
Description
- Component:
Snap-in, Rear Mounting
- 2 Functions:
Fuseholder for Fuse-links 5x20 mm or 6.3x32 mm, Voltage selector
insert
- Approved together with power entry module
Characteristics
- Fuse drawer meets requirements of medical standard IEC/EN 60601-1
The fuse drawer "Fingergrip" can be removed by hand
For added safety "Extra-Safe" fuse drawers are available
With spare fuse compartment
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
References
Weblinks
- Fuse drawer with other voltage values
Fits to type:
CD; CD-Bowdencable; KD; KD-Bowdenca-
ble; KEC; KFC
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating
Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-
Check, CAD-Drawings, Accessories, Detailed request for product
Voltage Selector Inserts
Index
yy
KEC
KD
00
01
02
03
04
05
06
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
3
-
100
110
110
110
115
117
110 V
220
115
110
115
100
100
100
100
115
115
220
100
100
100
100
200
Marking on Voltage Selector Insert / Terminal No.
2
4
-
120
150
-
220
-
220
-
-
220
120
230
110
117
115
120
120
-
120
120
-
120
110
220
3
5
-
220
220
220
240
230
240
220 V
240
240
220
240
220
220
230
230
230
240
240
230
220
220
120
240
4
6
-
240
-
-
-
-
-
-
-
-
240
-
240
240
-
240
240
-
230
-
-
230
-
-
Connectors
1
Fusedrawer 3
Index
yy
KEC
KD
25
27
28
29
30
31
32
34
35
36
37
38
39
40
42
43
44
45
46
48
1
3
120
115
-
100
117
117
100
110
100
100
115
110
220
100
100
115
Marking on Voltage Selector Insert / Terminal No.
2
4
-
200
230
117
220
220
110
115
115
110
230
230
230
110
115
-
3
5
230
230
240
125
240
240
230
230
230
200
240
220
240
127
120
230
4
6
-
-
-
-
100
100
240
240
240
230
100
240
-
230
230
-
Accessories
www.schurter.com/Z01
100
100
100
100
115
115
120
120
127
230
200
208
230
127
230
230
Index "yy" matches the last two characters of the Order Number within the Variants
All Variants
Mounting
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fingergrip
Extra-Safe
Fuse-Link
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
5 x 20
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
6.3 x 32
Fuseholder
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
Comment
-
-
-
-
spare fuse case
-
-
-
-
shorting bar on the neutral side
shorting bar on the neutral side
shorting bar on the neutral side
shorting bar on the neutral side
-
-
-
-
-
-
-
-
shorting bar on the neutral side
shorting bar on the neutral side
shorting bar on the neutral side
shorting bar on the neutral side
Order Number
4303.2114.yy
4303.2124.yy
4303.2406
4303.2408
4303.2416
4303.2014.yy
4303.2024.yy
4303.2401
4303.2403
4303.2036.yy
4303.2037.yy
4303.2411
4303.2413
4303.2614.yy
4303.2624.yy
4303.2906
4303.2908
4303.2514.yy
4303.2524.yy
4303.2901
4303.2903
4303.2536.yy
4303.2537.yy
4303.2911
4303.2913
█
█
█
█
█
█
█
█
█
"yy" see Voltage Selector Inserts Table
Packaging unit
50 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
