4303.5225 Overview

AC power entry modules kfc pwr entry module W. filter 4A M5

4303.5225 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE; QUICK CONNECT
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	4A, 125/250VAC
Manufacturer's serial number	4303
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

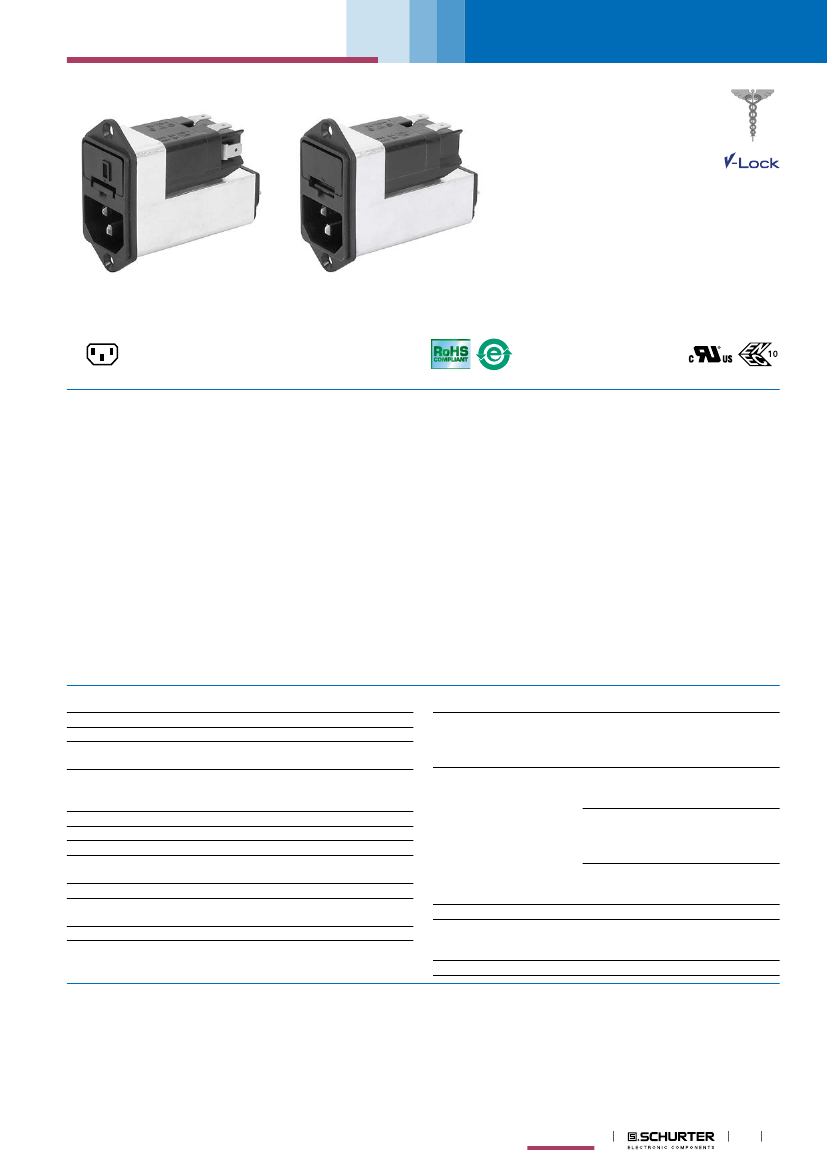

Power Entry Modules with Line Filter

www.schurter.com/PG06

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole (5x20 mm or 6.3x32 mm), optional Voltage Se-

lector (step switch)

KFC

Standard- or Medical-Filter

with voltage selector

without voltage selector

C14

70° C

Description

- Panel Mount:

Screw-on mounting from front side

- 4 Functions:

Appliance Inlet Protection class I, Fuseholder with interchangeable fuse

drawer for Fuse-links 5x20 mm or 6.3x32 mm, with or without voltage

selector (step switch), Line filter in standard and medical version

- Quick connect terminals 4.8 x 0.8 mm

Characteristics

Approvals

- All single elements are already wired

- The fuse drawer "Fingergrip" can be removed by hand

For added safety "Extra-Safe" fuse drawers are available

Fuse drawer meets requirements of medical standard IEC/EN 60601-1

The fuse drawer can only be opened with the aid of a tool

The fuseholder is accessible from the equipment front

- Suitable for use in equipment according to IEC/UL 60950

Suitable for use in medical equipment according to IEC/UL 60601-1

- VDE Certificate Number: 40004665 (FKO, FKP, FKQ, FKR)

- UL File Number: E72928 (FKO, FKP, FKQ, FKR)

Other versions on request

References

Weblinks

- Variant with notch for V-Lock mating Cordsets

Alternative: version without line filter

KEC

Alternative: Standard version

pdf-datasheet, html-datasheet, General Product Information, RoHS,

CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-

Stock-Check, Distributor-Stock-Check, Accessories

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.

The cord latching system prevents against accidental removal of the cordset.

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 85 °C

25/085/21 acc. to IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminals 4.8 x 0.8 mm

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance-Inlet/-Outlet

C14 acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

1 or 2 pole, Shocksafe category PC2

acc. to IEC 60127-6,

for fuse-links 5 x 20 or 6.3 x 32 mm

5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per

pole

6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)

per pole

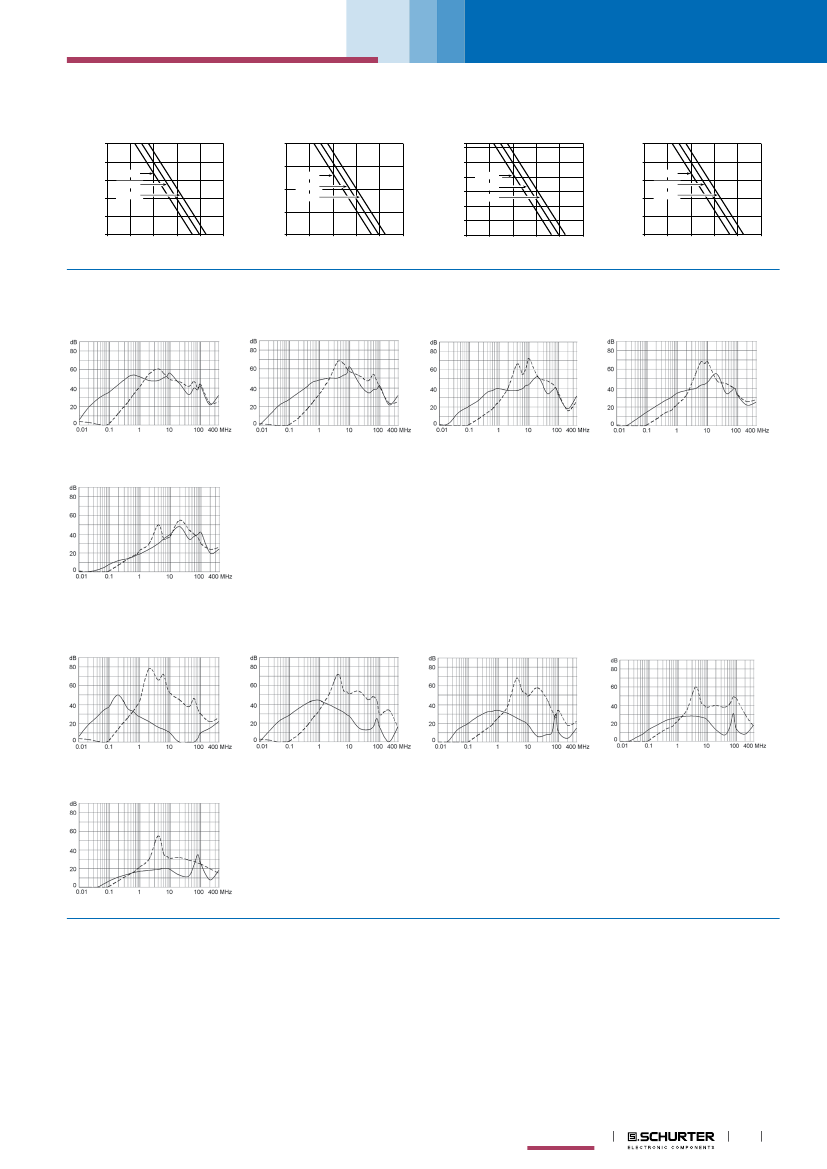

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

optional, step, 3 pos.

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

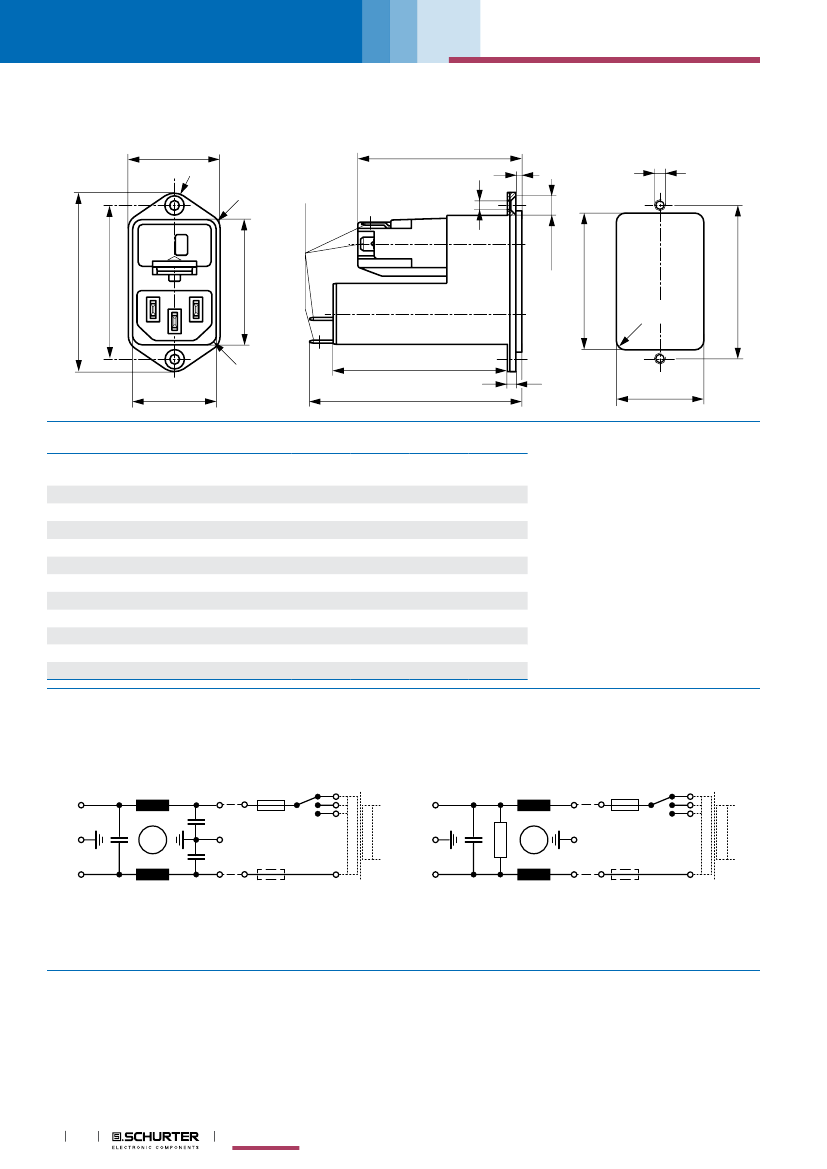

Technical Details

> 1'700'000 h acc. to MIL-HB-217 F

Fuseholder

Allowable Operation Temp.

Climatic Category

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Voltage Selector

Line Filter

MTBF

Connectors
