4307.1111 Overview

AC power entry modules pmm pwr entry modul 10a 115/230

4307.1111 Parametric

Parameter NameAttribute value
ManufactureSchurte
Product CategoryAC Power Entry Modules
Factory Pack Quantity250
Unit Weigh29.400 g

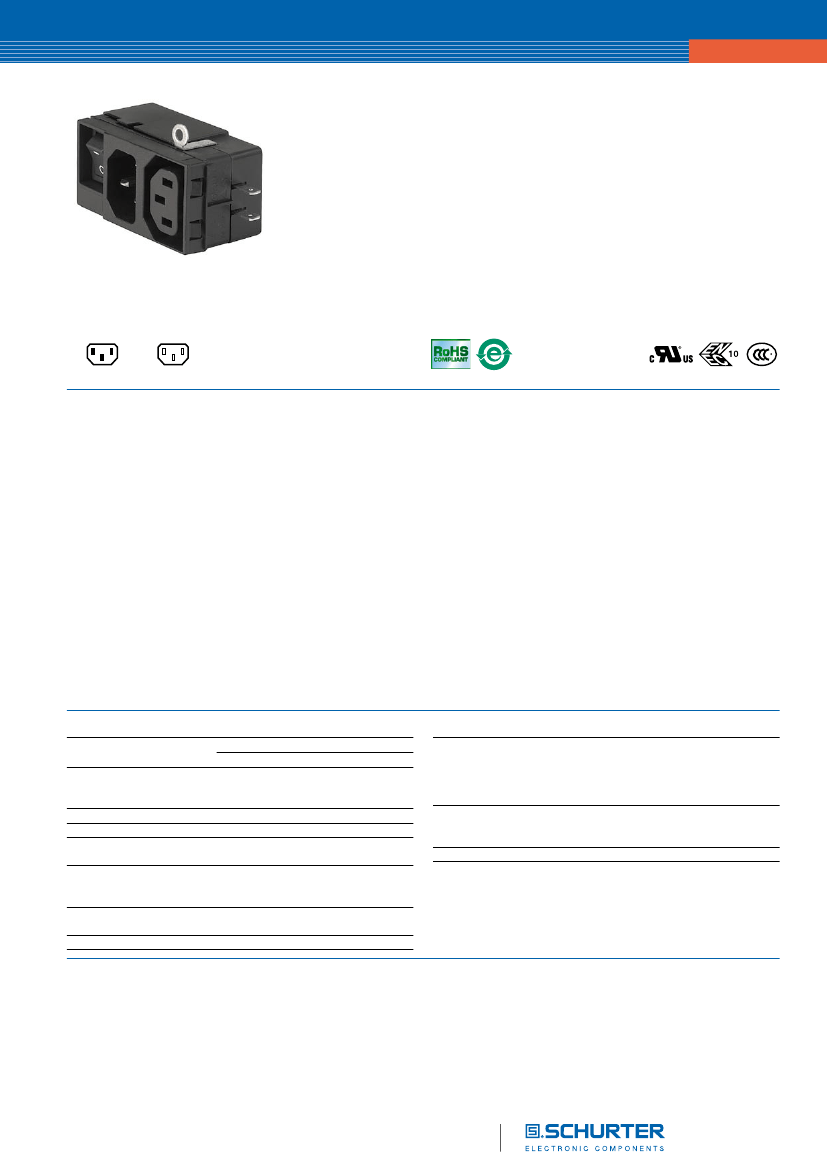

Power entry modules without line filter
www.schurter.com/pg05
IEC Appliance Inlet C14 with Appliance Outlet F, Line Switch 2-pole and Voltage Selector
PMM
C14
70° C
F
70° C
Description
- Panel Mount:
Snap-in version from rear-side
- 4 Functions:
Appliance Inlet Protection class I, Connector Protection class I, Line
Switch 1- or 2-pole, with or without voltage selector (Jumper)
Approvals
- VDE Certificate Number: 6090
- UL File Number: E96454
- CSA File Number: 38456
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
SE
References
Weblinks
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Solder terminal on request
Solder terminals on voltage selector
Snap-in: 0.8/1.5 mm
(other on request)
Thermoplastic, black, UL 94V-2
Line Switch
PH
A
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
-O
UT
Characteristics
- Short Mounting Depth
- All single elements are already wired
except voltage selector
- Line switch non-illuminated
- Voltage selector for two voltage ranges
- Insulation cover on the rear-side
- Especially suitable for use in switching power supplies
- Qualified for use in equipment according IEC/EN 60950
Other versions on request
- Panel thickness 1.0 mm and 1.2 mm
- Unwired (without pc-board), with pin-terminals
- Wired (with pc-board), with flexible wires
- Line switch with other rocker marking
- Without cover
- Voltage selector with other marking
This type is Phase-out without alternate type
Last order date: 30.04.2011
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories, Detailed request for product
Appliance Inlet / Appliance
Outlet
Voltage Selectors
C14 acc. to IEC/EN 60320-1
and F acc. to IEC/EN 60320-2-2,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Rocker switch 1 or 2 pole, non-illumina-
ted, acc. to IEC 61058-1

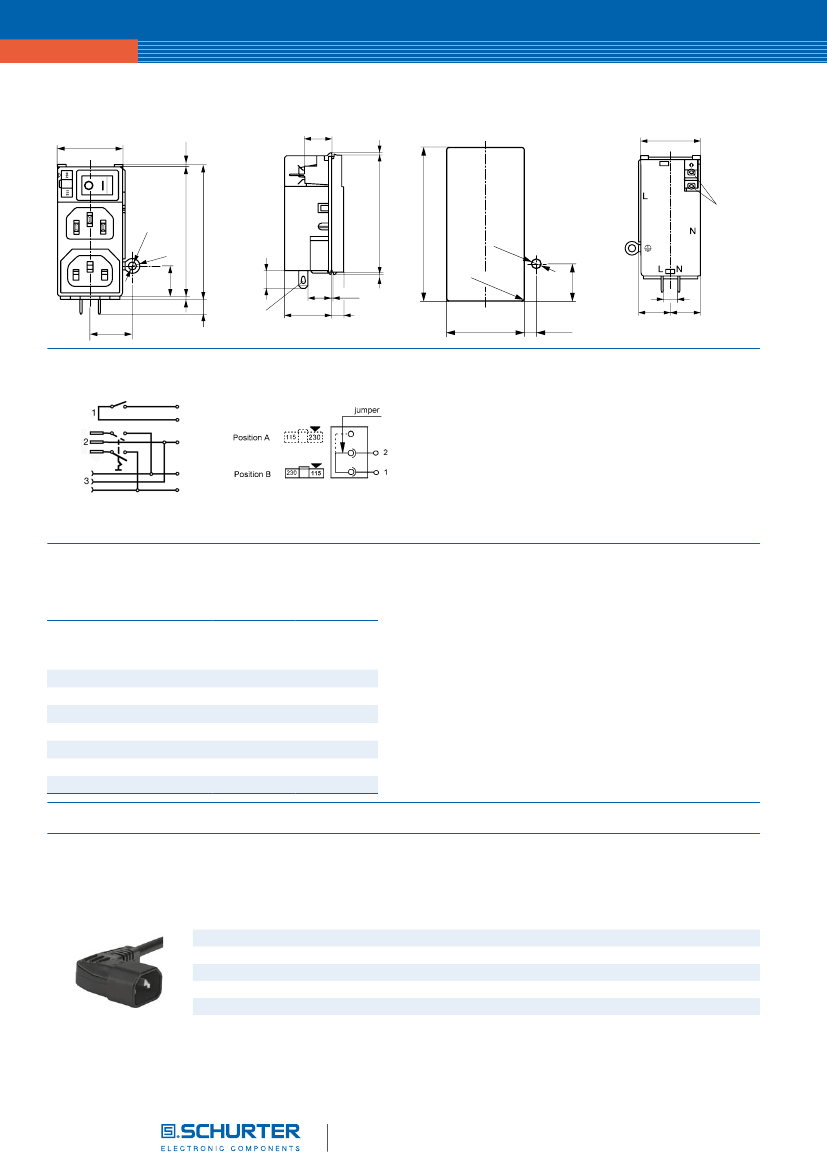

Technical Details
optional jumper, 2 pos.

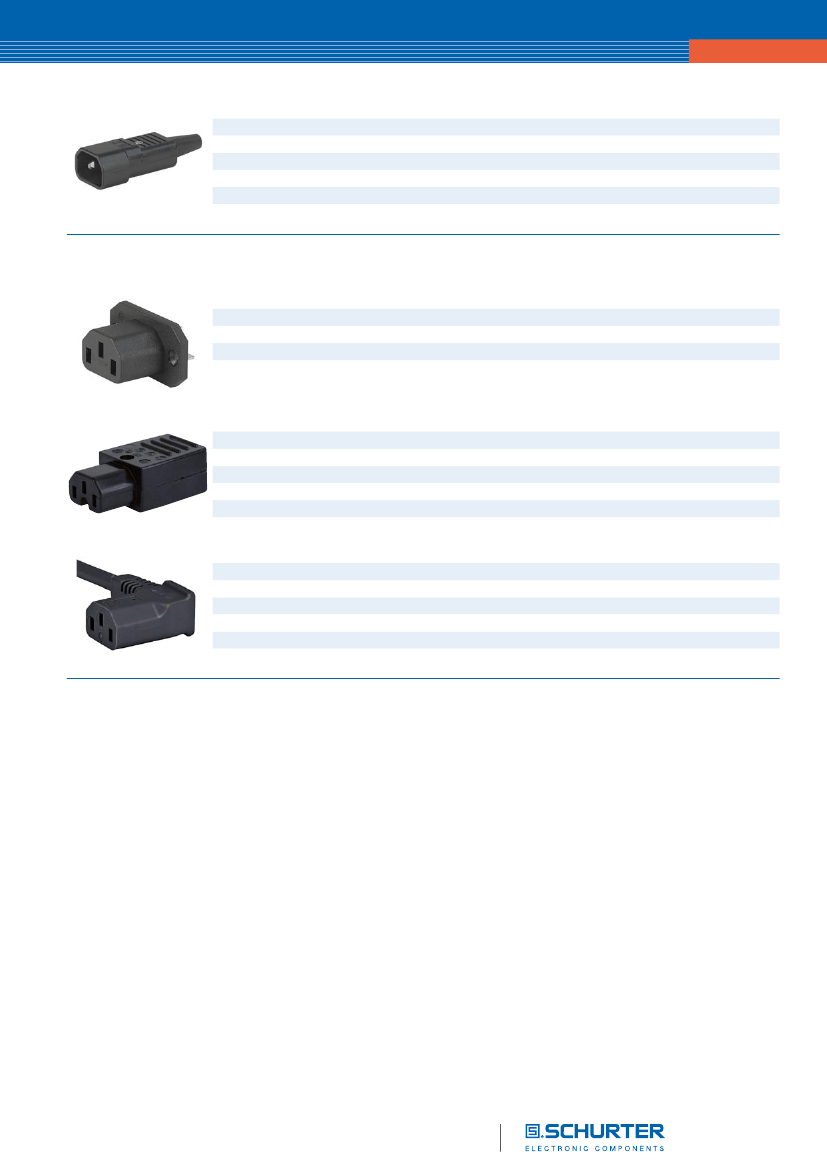

Connectors


4307.1111 Related Products

4307.1111 4307.2111 4307.1001
Description AC power entry modules pmm pwr entry modul 10a 115/230 AC power entry modules pmm pwr entry modul 10a AC power entry modules pmm pwr entry modul 10a
Manufacture Schurte Schurte Schurte
Product Category AC Power Entry Modules AC Power Entry Modules AC Power Entry Modules
Factory Pack Quantity 250 250 250
Unit Weigh 29.400 g 56 g 28.800 g
Filtered - N N
Produc - Inlet/Outlet Combinations Inlet/Outlet Combinations
Fused - N N
Switch Functi - Switched Switched
