BVA01/Z0000/11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BVA01/Z0000/11

BVA01/Z0000/11: DescriptionAC power entry modules fused inlet DP SW red pwr module; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BVA01/Z0000/11 Overview

AC power entry modules fused inlet DP SW red pwr module

BVA01/Z0000/11 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Is Samacsys	N
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

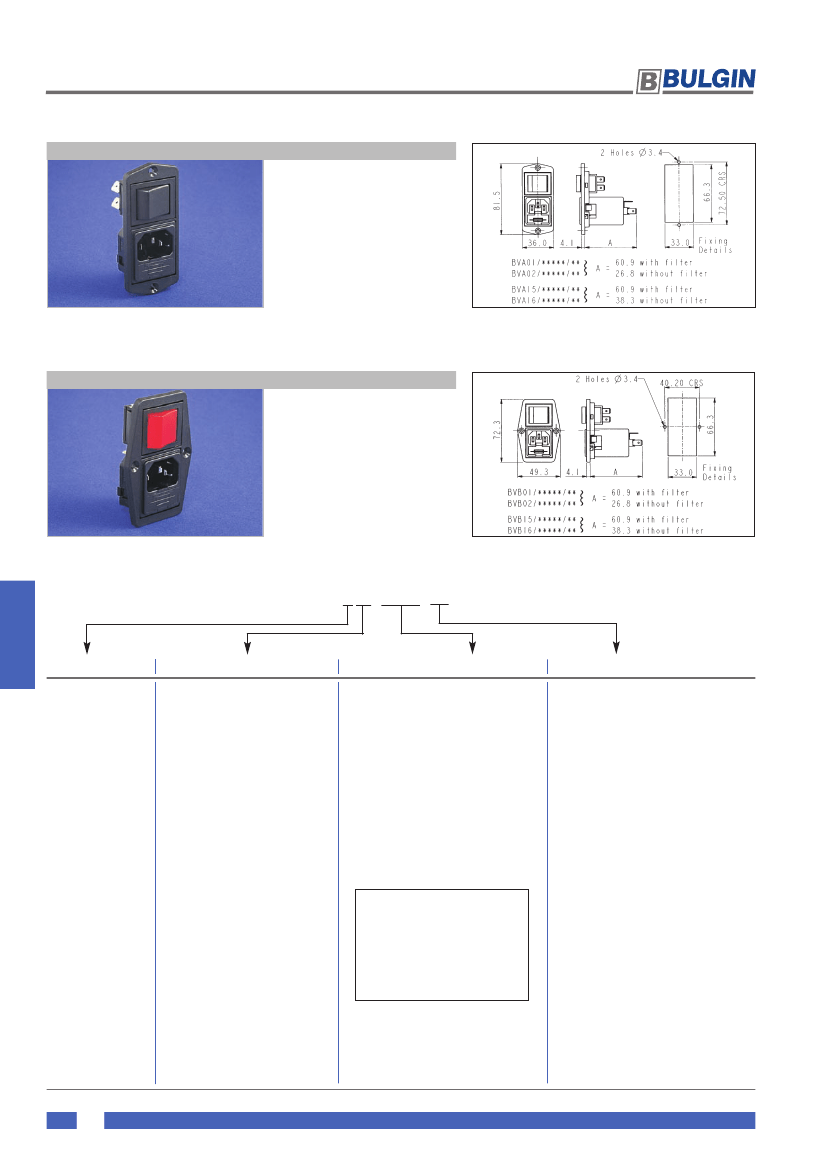

POLYSNAP

POWER INLET MODULES

C14 IEC Fused Inlet - Polyflange

VERTICAL MODULE ARRANGEMENT

Fused Inlet with 2.8mm or

6.3mm tags

Screw Fixing to Panel

Double Pole Switch Variations

Filtered Inlet Option

Options of I/O marked

switches

BVA01/Z0000/10

VERTICAL MODULE ARRANGEMENT

Fused Inlet with 2.8mm or

6.3mm tags

Screw Fixing to Panel

Double Pole Switch Variations

Filtered Inlet Option

Options of I/O marked

switches

BVB01/Z0000/11

IEC CONNECTORS

How to Order

BV x xx / xxxxx / xx

Flange Type

= Top fixing

= Side fixing

Type of Inlet / Outlet

Fused C14 Power Inlet (cold

condition), 6.3 or 2.8mm tabs:

= PF0011/63

= PF0011/28

Twin Fused C14 Power Inlet

(cold condition), 6.3 or 2.8mm

tabs:

= PF0033/63

= PF0033/28

Filtered or Non Filtered Inlet

Z0000 = Non Filtered

Axxxx = Standard

Bxxxx = Medical (Twin Fuse Version only)

Combination of Other Components

Neon Indicator:

= Red Neon Indicator

Double Pole Switch:

= D.P Switch

Double Pole Neon Switch:

= D.P Red Neon Switch

= D.P Green Neon Switch

Double Pole High Inrush Switch:

= D.P High Inrush Switch

For Filtered inlet use 6th to 9th

characters from filter ordering code see

pages 127-129.

E.g. BVA01/A0620/10

Double Pole Switch Marked I/O:

= D.P Switch (I/O)

Double Pole Neon Switch Marked (I/O):

= D.P Red Neon Switch (I/O)

= D.P Green Neon Switch (I/O)

Double Pole High Inrush Switch Marked

(I/O):

= D.P High Inrush Switch (I/O)

= D.P High Inrush Green Neon Switch

(I/O)

Note: For technical details of individual components please see page 106

124

www.elektron-bulgin.com
