70-841-009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 70-841-009

70-841-009: Descriptionheavy duty power connectors lps150 mating connector kit; CategoryThe connector; File Size742KB，2 Pages; ManufacturerArtesyn; Websitehttp://www.artesyn.com

Download Datasheet Parametric View All

70-841-009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	70-841-009	-	-	View	Buy Now

70-841-009 Overview

heavy duty power connectors lps150 mating connector kit

70-841-009 Parametric

Parameter Name	Attribute value
Manufacture	Artesyn Embedded Technologies
Product Category	Heavy Duty Power Connectors
RoHS	N

Preview

Download Datasheet

View All

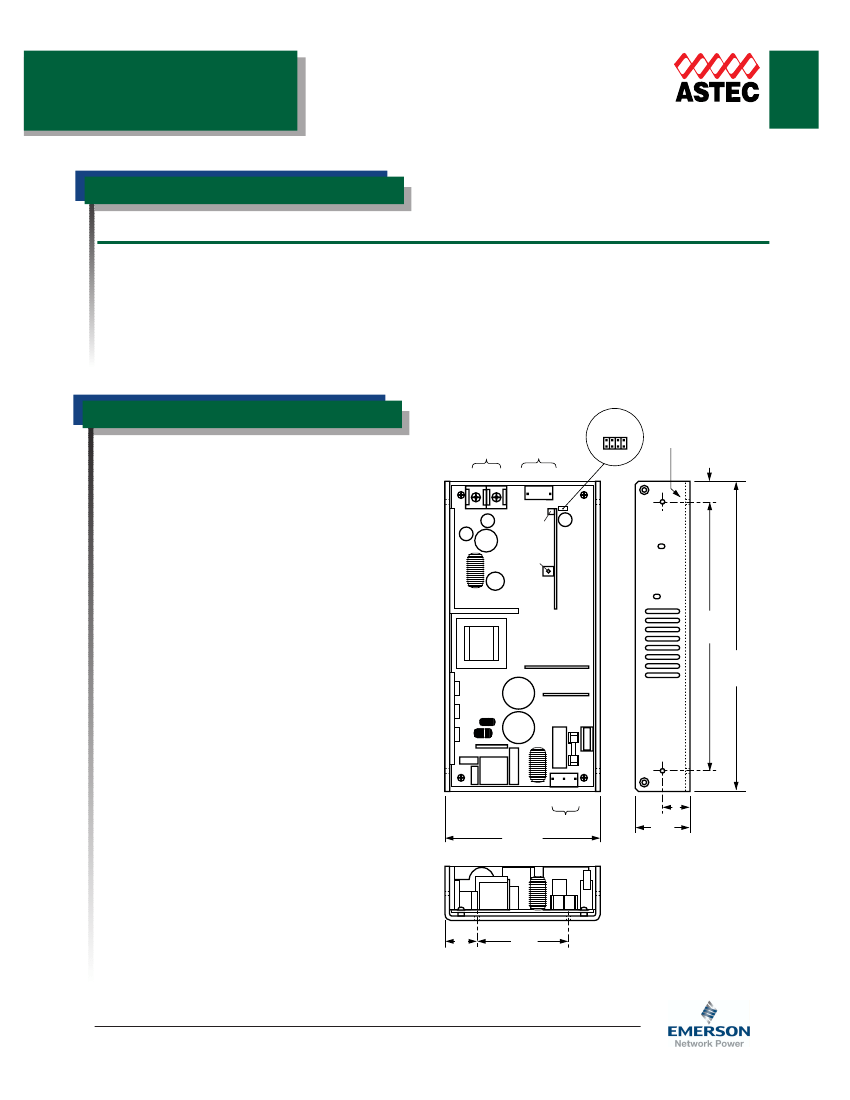

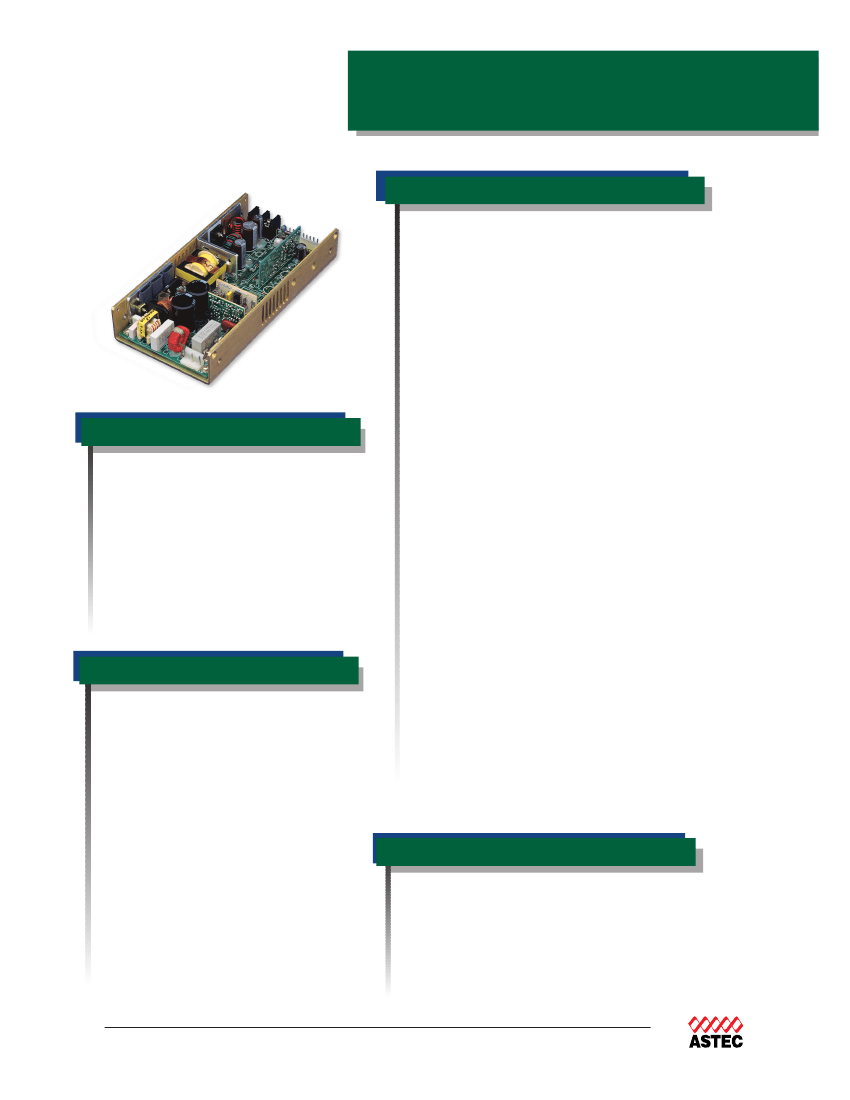

150 Watts

LPS150 Series

Total Power:

110-150 Watts

Input Voltage:

85-132 / 170-264 VAC

220-300 VDC

# of Outputs:

Single

Electrical Specs

Input

Input range

85-132 VAC

or 170-264 VAC automatically

selected.

220-300 VDC

47-63 Hz

38 A max, cold start @ 25°C

75% typical at full load

FCC Class B conducted

CISPR 22 Class B conducted

EN55022 Class B conducted

VDE 0878 PT3 Class B conducted

<0.5 mA @ 50/60 Hz, 264 VAC input

Frequency

Inrush current

Efficiency

EMI filter

Special Features

•

Auto ranging input

Remote sense

Remote inhibit

Power fail

Single wire current sharing

Built-in EMI filter

Low output ripple

Adjustable output

135 khz switching frequency

Overvoltage protection

Overload protection

Optional cover (-C suffix).

Safety ground

leakage current

Output

Maximum power

110 W convection (75 W with cover)

150 W with 30 CFM forced air

(130 W with cover)

±5% minimum

20 ms @ 110 W load, 115/230 VAC

nominal line

Short circuit protection. Case overload

protected @ 110% to 145% above

peak rating

5 V output: 5.7 to 6.7 VDC. Other

outputs 10% to 25% above nominal

output

TTL Logic signal goes high 50-150

msec after 5 V output. It goes low at

least 3 ms before loss of regulation.

Requires an external TTL high signal to

inhibit outputs.

Compensates for 0.5 V lead drop

minimum, will operate without

remote sense connected. Reverse

connection protected.

Adjustment range

Hold-up time

Overload protection

Overvoltage protection

Environmental

Operating temperature: 0° to 50°C ambient;

derate each output at 2.5% per degree from 50°

to 70°C

Electromagnetic susceptibility: Designed to

meet IEC 801, -2, -3, -4, -5,-6, Level 3

Humidity: Operating; non-condensing

5% to 95%

Vibration: Three orthogonal axes, sweep at

1 oct/min, 5 min. dwell at four major resonances

0.75 G peak 5 Hz to 500 Hz, operational

Storage temperature: -40° to 85°C

Temperature coefficient: ±.04% per °C

MTBF demonstrated: >550,000 hours at full load

and 25°C ambient conditions

Logic Control

Power Failure

Remote inhibit

Remote sense

Safety

VDE

CSA

NEMKO

BABT

0805/EN60950 (IEC950)

UL1950

CSA 22.2-234 Level 3

EN 60950/EMKO-TUE

(74-sec) 203

EN60950/BS7002

Certificate and report

Mark (LVD)

11774-3336-1260 (LC#88585)

EI32002

LR53982

P95102999

607019

2062

112

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662

rev 12.01.01
