WD9F2C9B00 datasheet, PDF - EEWORLD Datasheet

WD9F2C9B00: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Plug,; CategoryThe connector The connector; File Size460KB，5 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

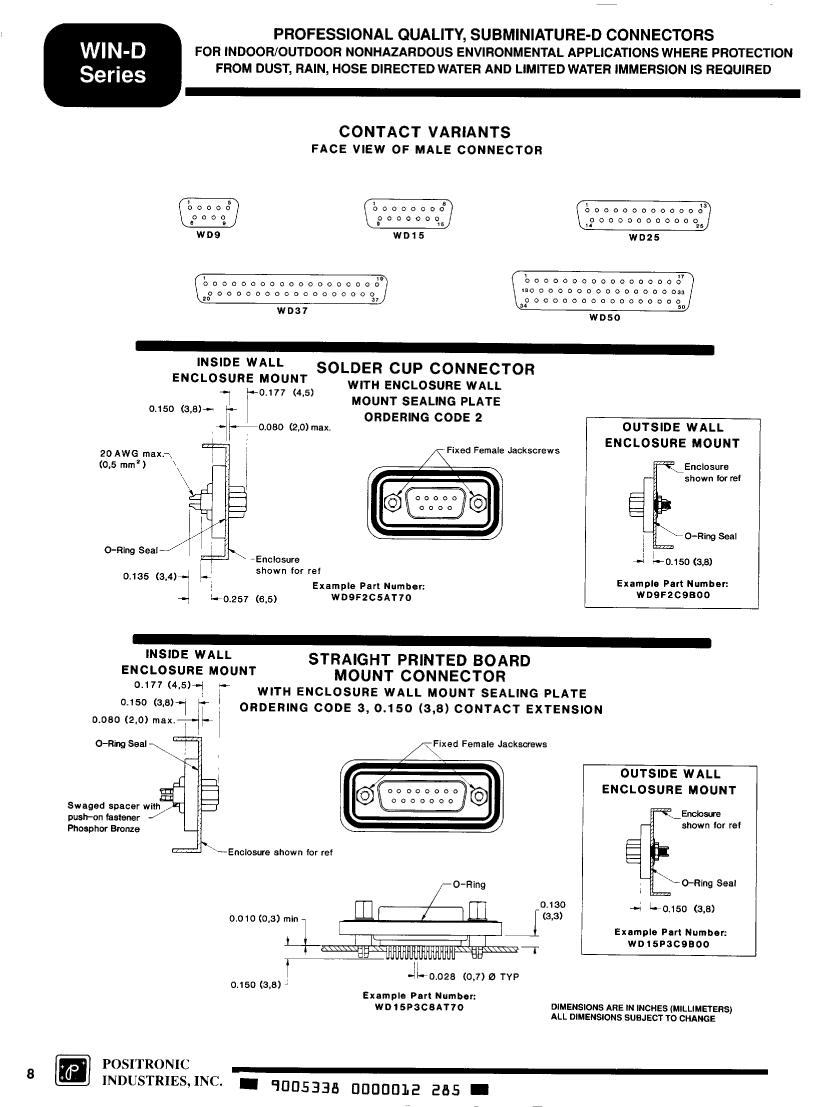

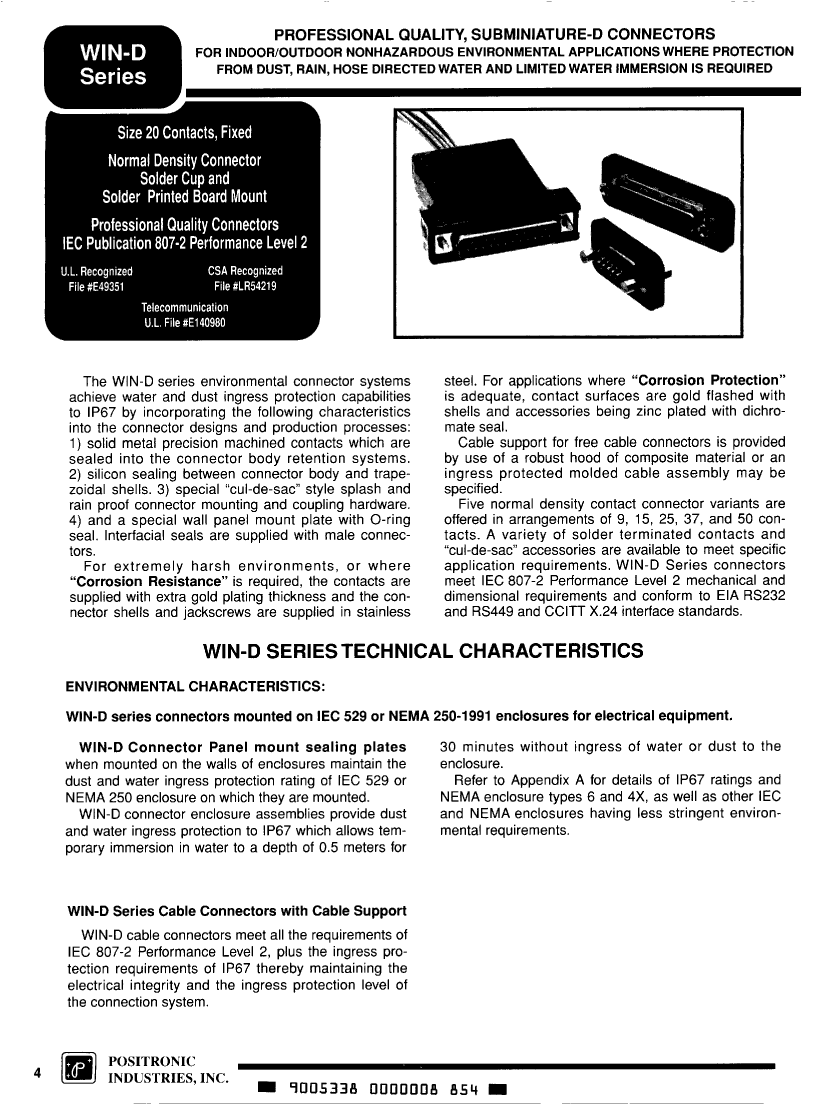

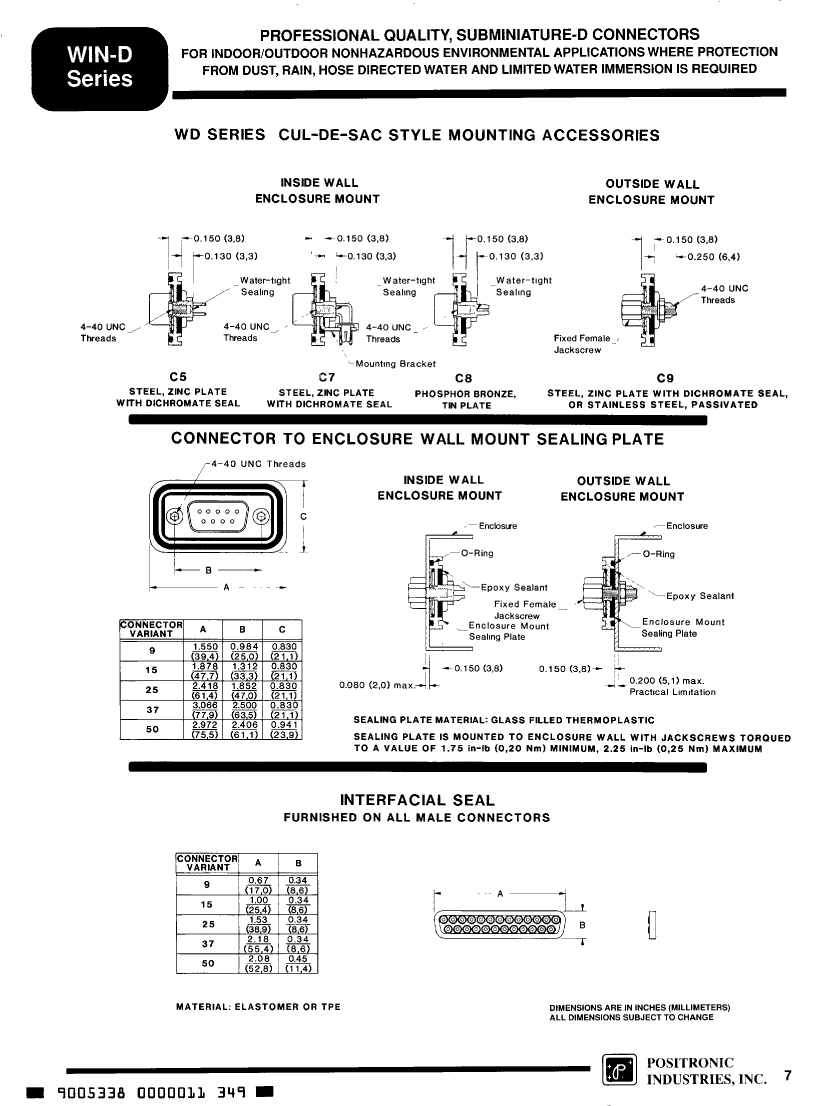

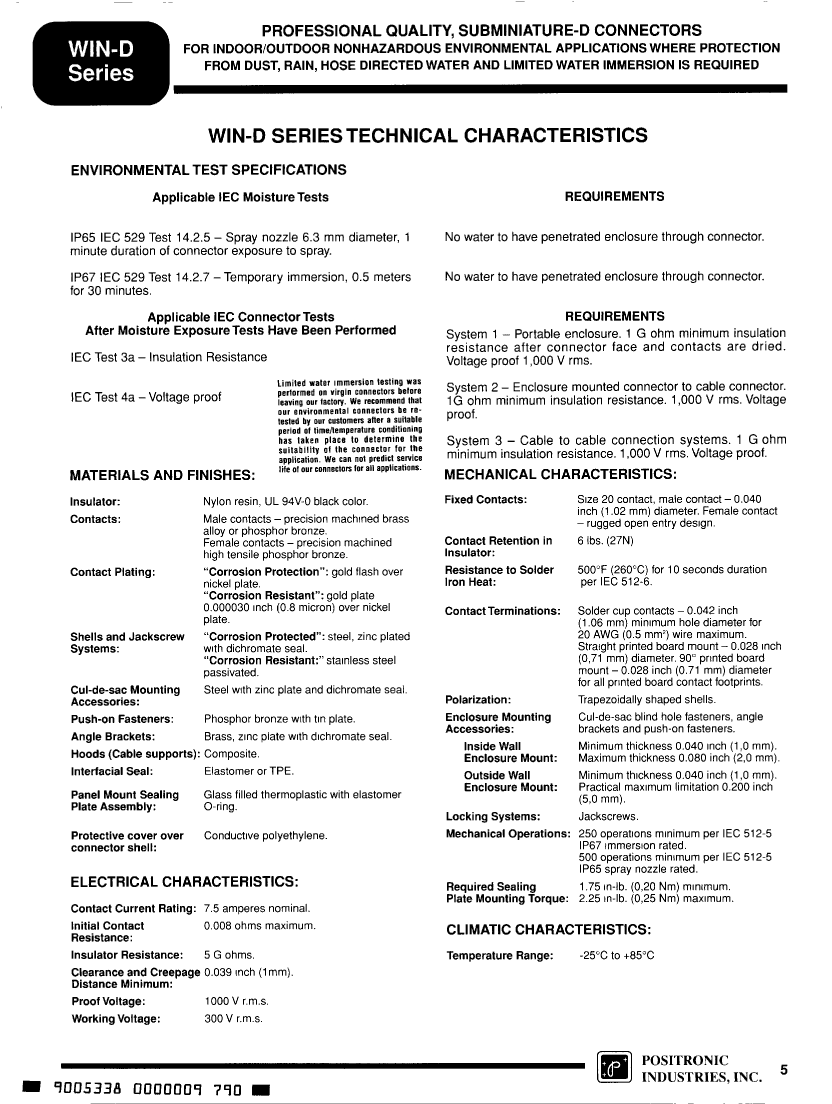

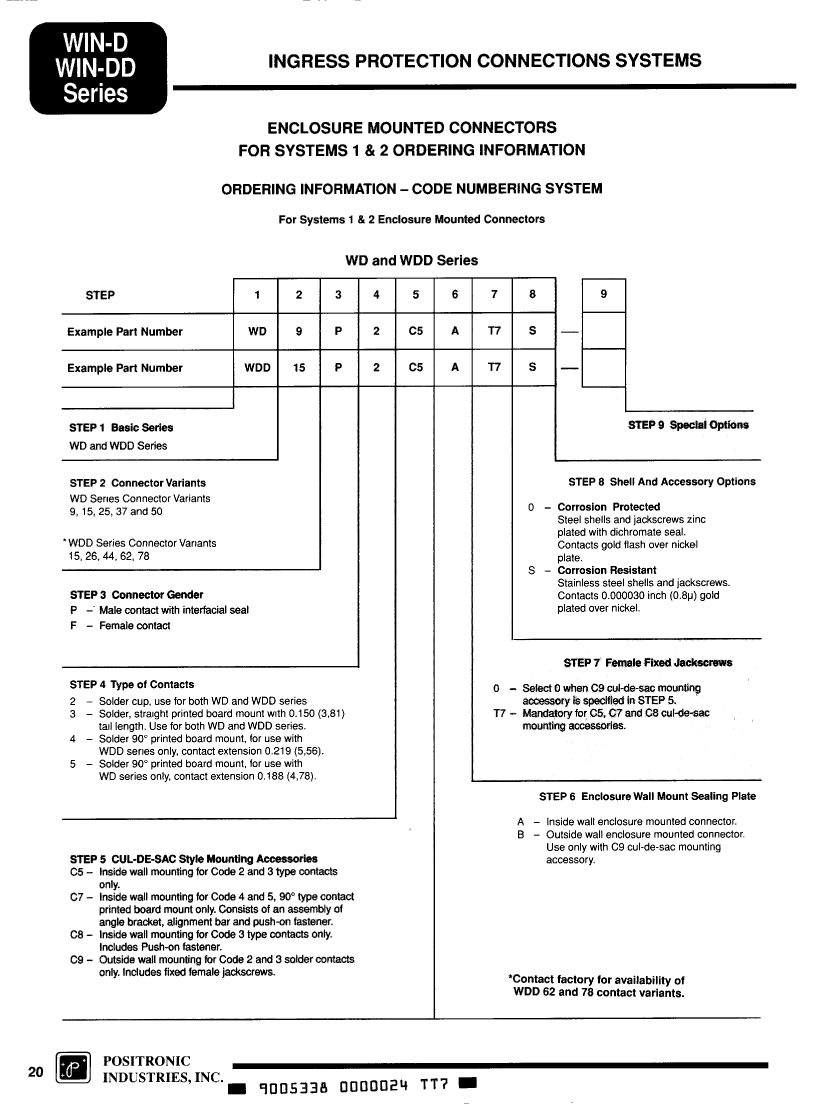

WD9F2C9B00 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Plug,

Parameter Name	Attribute value
Objectid	1946324055
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.5
Other features	STANDARD: IEC 807-2, POLARIZED
body width	0.83 inch
subject depth	0.352 inch
body length	1.55 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 2	JACKSCREW
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	WATERPROOF
Plating thickness	FLASH inch
Rated current (signal)	7.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Housing size	1/E
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
