PP15/45 Powerpole
Anderson Power Products
®
®
Finger Proof Connector

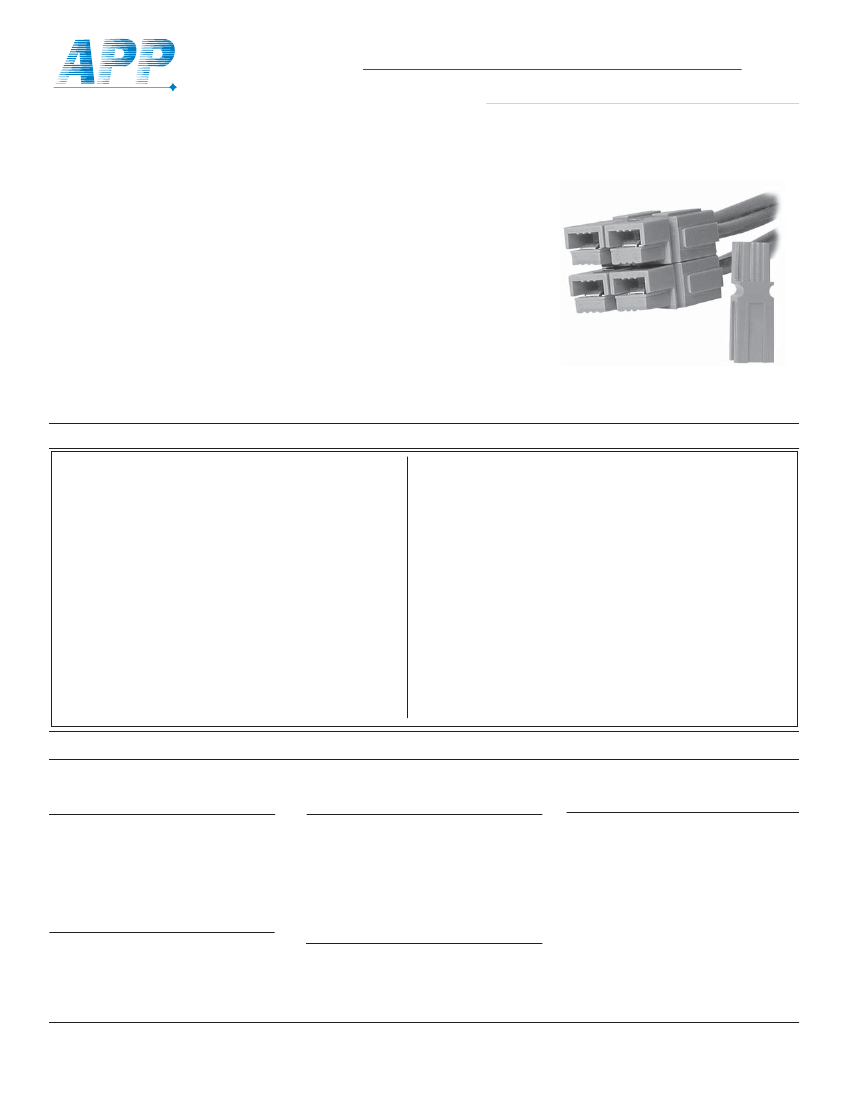

The PP15/45 Finger Proof is designed
specifically for high voltage applications
where personal safety is critical. The
connector meets the accessibility
requirements of UL1977 section 10.2 and is
recommended for over 50 volts.
Powerpole
®
connectors provide
cost-effective reliability, design flexibility and
safety for your products' manufacture,
installation and maintenance.
Powerpole
®
connectors provide 600 Volts
continuous, AC or DC operation. Wire sizes
range from #10 to #20 AWG (5.3 to .5 mm²).
Contacts are available in reeled and loose
piece designs to support all production
needs from, low volume and high volume
engineering prototype products.
FEATURES
• Finger proof
Minimizes the potential contact with live
contacts, per UL 1977 and EN/IEC 60529
condition IP20
• Molded-in dovetails
Secures individual connectors into "keyed"
assemblies which prevents misconnection
with similar configurations
• Interchangeable genderless
design
Makes assembly quick, easy and reduces
number of parts stocked
PRODUCT SPECIFICATIONS
Connector Model
UL Current Rating (Amperes)*
UL Voltage Ratings (Volts)**
Contact Barrel Wire Size (AWG)
(mm²)
Maximum Wire Insulation Diameter (inches)
(mm)
AVG Contact Resistance*
(micro-ohms)
Insulation Withstanding
Test Voltage (Volts AC/DC)
Contact Retention Force (lbs)
PP15
15*
600*
#16 - #20
1.3 to .5
0.175
4.45
875
PP30
30*
600*
#12 - #16
3.3 - 1.3
0.175
4.45
600
PP45
45*
600*
#10 - #14
5.3 - 2.1
0.175
4.45
525
Connector Model
Life
a. No load (Contact/Disconnect Cycles)
b. Under Load (Hot Plug 250 cycles @ 120V)
Avg. Connection/Disconnect (lbs)
Operating Temperature Range °C***
°F
Flammability Rating of Housing Material
PP15
PP30
PP45
To 10,000
15A
3
-20° to 105°
-4° to 221°
UL94 V-0
To 10,000
30A
3
To 10,000
30A
3
-20° to 105° -20° to 105°
-4° to 221° -4° to 221°
UL94 V-0
UL94 V-0
2200
2200
2200
* UL Rated for 65°C rated wire or cable size
** Both AC & DC Voltage
*** Contact factory for higher temperature rated connectors
25
25
35
ORDERING INFORMATION
Housings Only
Part
Number
1327FP
1327G5FP
1327G6FP
1327G7FP
1327G8FP
Description
Red housing
Green housing
Black housing
White housing
Blue housing
30 amp Contacts
Part
Number
1331
261G1
269G1-LPBK
269G1
200G2L
201G2H
Wire
Description
AWG
Individual
12/16
Reel
12/16
Loose piece-bulk
12/16
Reel
12/16
Superflex, reel, low det 16/20
Superflex, reel, high det 16/20
sq. mm
3.3/1.3
3.3/1.3
3.3/1.3
3.3/1.3
1.3/.52
1.3/.52
Accessories
Part
Number
1441G1
1442G1
110G21
110G12
1399G9
1399G8
1399G1
1399G2
1399G6
1462G1
1462G2
1462G3
110G16
110G17
Description
Female splash boot
Male splash boot
Blok lok, 2 pole
Blok lok, 4 pole
Red mounting wing
Blue mounting wing
Red short spacer with end hole
Red long spacer
Red short spacer without hole
2 & 4 pole mounting clamp set
3 & 6 pole mounting clamp set
4 & 8 pole mounting clamp set
Retaining pins, 1 high block of connectors
Retaining pins, 2 high block of connectors
... continued on back page
15 amp Contacts
Part
Number
1332
262G1
269G2
269G2-LPBK
200G2L
201G2H
Wire
Description
Individual
Reel
Reel
Individual
Superflex, reel
Superflex, reel
AWG
16/20
16/20
16/20
16/20
16/20
16/20
sq. mm
1.3/.52
1.3/.52
1.3/.52
1.3/.52
1.3/.52
1.3/.52
45 amp Contacts
Part
Number
261G2
269G3
261G2-LPBK
200G1L
201G1H
Wire
Description
Reel, Low Det
Reel, High Det
Individual
Superflex, reel
Superflex, reel
AWG
10/14
10/14
10/14
10/14
10/14
sq. mm
5.3/2.1
5.3/2.1
5.3/2.1
5.3/2.1
5.3/2.1
HEADQUARTERS:
13 Pratts Junction Road, P.O. Box 579, Sterling, MA 01564 T:978-422-3600 F:978-422-3700
EUROPE
: Rathealy Road, Fermoy Co. Cork, Ireland
T:353-(0)25-32277
F:353-(0)25-32296
ASIA/PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T.,
Hong Kong
T:852-2636-0836
F:852-2635-9036
www.andersonpower.com
Anderson Power Products
®
PP15/45 Finger Proof Connector

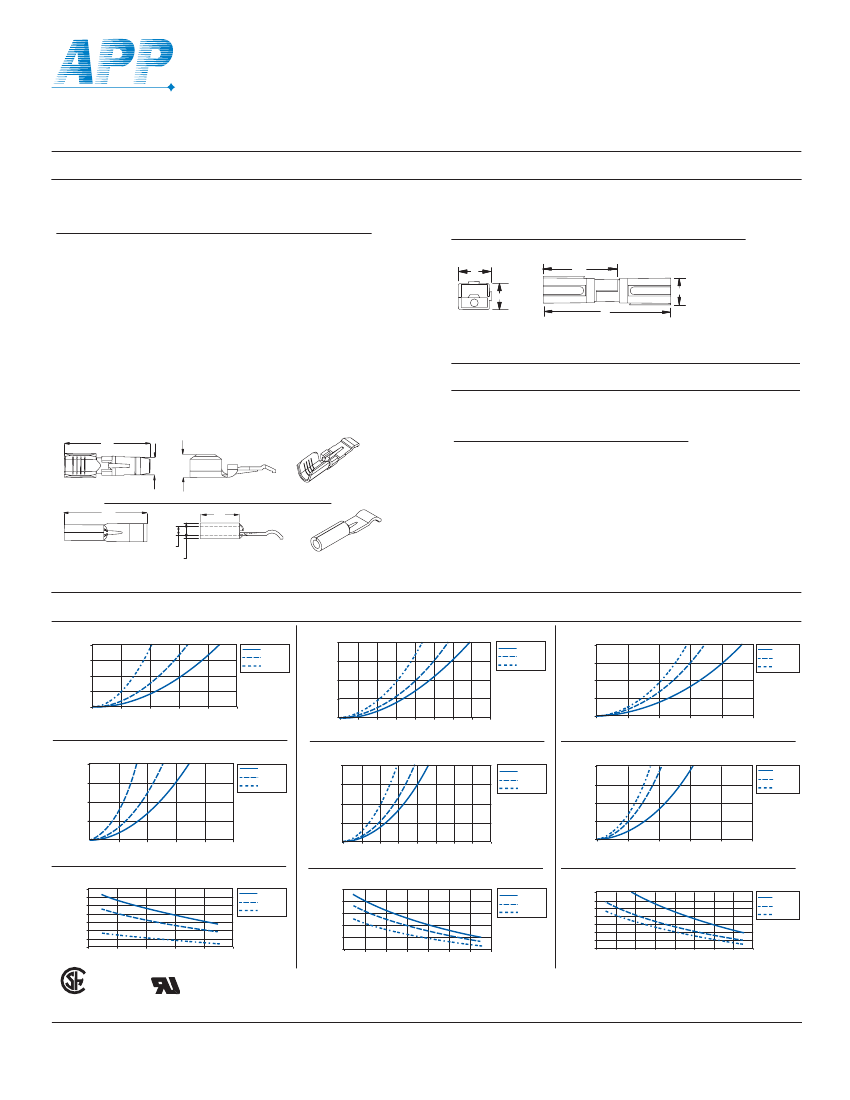

DIMENSIONS
Contacts
Part
Number
1332
1331
261G1
261G2
261G2-LPBK
262G1
269G1
269G1-LPBK
269G2
269G2-LPBK
269G3
200G2L
201G2H
200G1L
201G1H
A
E
C
Powerpole
®
Housing
-A-
mm in.
16.25 .64
16.25 .64
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
17.27 .68
-B-
mm in.
7.87 .31
7.87 .31
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
6.35 .25
-C-
mm
3.05
3.81
4.57
.08
.08
4.06
4.57
4.57
4.06
4.06
6.1
4.06
4.06
6.1
6.1
-D-
-E-
in. mm in. mm in.
.12 1.78 .07 3.68 .145
.15 2.54 .10 3.68 .145
.18
N/A
3.68 .145
.25
N/A
3.68 .145
.25
N/A
3.68 .145
.16
N/A
3.68 .145
.18
N/A
3.68 .145
.18
N/A
3.68 .145
.16
N/A
3.68 .145
.16
N/A
3.68 .145
.24
N/A
3.68 .145
.16
N/A
3.68 .145
.16
N/A
3.68 .145
.24
N/A
3.68 .145
.24
N/A
3.68 .145
-A-
Series
mm in.
PP15/45FP 7.9 .31
A
A
B
D
-B-
mm in.
7.9 .31
C
-C-
mm in.
26.6 .97
-D-
mm in.
41.3 1.63
-E-
mm in.
8.4 .33
E
ORDERING INFORMATION
Tooling
Part
Number
111038G2
1309G2
1309G5
260G1
260G14*
260G15*
260G18**
280G1
250G1
280G4
250G2
Description
Contact insertion/extraction tool
Hand tool #12 to #20
Hand tool for p/n 200G2L & 201G2H
Applicator only (110V & 220V)
Applicator only (110V & 220V)
Applicator only (110V & 220V)
Applicator only (110V & 220V)
Applicator and press (110V, 60Hz)
Press only (110V, 60Hz)
Applicator and press (220V, 50Hz)
Press only (220V, 50Hz)
Loose Piece, Reel
A
D
B
Loose Piece, Individual
C
* Denotes mini-style applicator for use with existing "K' or "T" press
** Denotes mini-style applicator for use with existing "K" or "T" and "G" press
TEMPERATURE RISE CHARTS
Temperature (°C)
40
30
20
10
0
0
PP15 Singlepole
Temperature Rise at Constant Current
Temperature (°C)
Temperature (°C)
16 AWG
18 AWG
20 AWG
40
30
20
10
0
0
PP30 Singlepole
Temperature Rise at Constant Current
12 AWG
14 AWG
16 AWG
40
30
20
10
0
0
PP45 Singlepole
Temperature Rise at Constant Current
10 AWG
12 AWG
14 AWG
5
10
15
Amperes Applied
20
25
5
10
15 20 25 30
Amperes Applied
35
40
10
20
30
Amperes Applied
40
50
40
Temperature (°C)
PP15 Multipole
Temperature Rise at Constant Current
Temperature (°C)
PP30 Multipole
Temperature Rise at Constant Current
40
30
20
10
0
0
5
10
15 20 25 30
Amperes Applied
35
40
Temperature (°C)
30
20
10
0
0
5
10
15
Amperes Applied
PP15 Multipole
Pulse Current Capability
20
25
16 AWG
18 AWG
20 AWG
12 AWG
14 AWG
16 AWG
40
30
20
10
0
0
PP45 Multipole
Temperature Rise at Constant Current
10 AWG
12 AWG
14 AWG
10
20
30
Amperes Applied
PP45 Multipole
Pulse Current Capability
40
50
32
28
24
20
16
12
8
4
Amperes
0.5
1
2
4
8
Duration of Current (seconds)
Amperes
Amperes
16 AWG
18 AWG
20 AWG
60
50
40
30
20
10
PP30 Multipole
Pulse Current Capability
12 AWG
14 AWG
16 AWG
80
70
60
50
40
30
20
10
10 AWG
12 AWG
14 AWG
0.5
1.0
2.0
4.0
8.0
16.0 32.0
0.5
(
)
CSA Certified
File No. LR25154
®
Duration of Current (seconds)
All Data Subject To Change Without Notice
1.0 2.0 4.0 8.0 16.0 32.0 64.0
Duration of Current (seconds)
HEADQUARTERS:
13 Pratts Junction Road, P.O. Box 579, Sterling, MA 01564 T:978-422-3600 F:978-422-3700
EUROPE
: Rathealy Road, Fermoy Co. Cork, Ireland
T:353-(0)25-32277
F:353-(0)25-32296
ASIA/PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T.,
Hong Kong
T:852-2636-0836
F:852-2635-9036
(
UL Recognized
File No. E26226
DS-FPPP15/45 REV02
www.andersonpower.com
