IM6561MDN/B datasheet, PDF - EEWORLD Datasheet

IM6561MDN/B: DescriptionStandard SRAM, 256X4, 360ns, CMOS, PDIP18; Categorystorage storage; File Size383KB，6 Pages; ManufacturerGeneral Electric Solid State

Download Datasheet Parametric View All

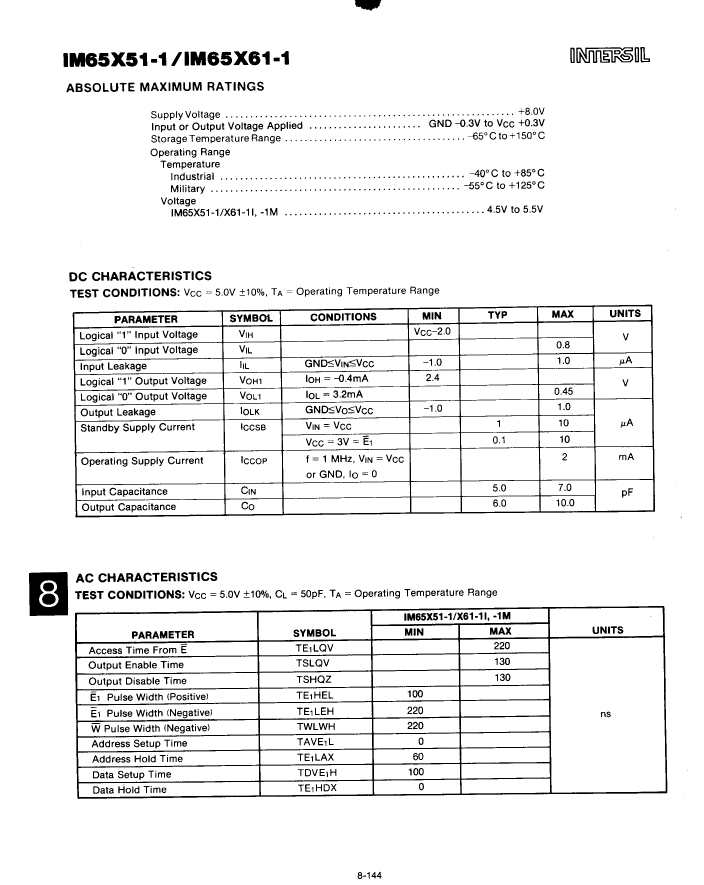

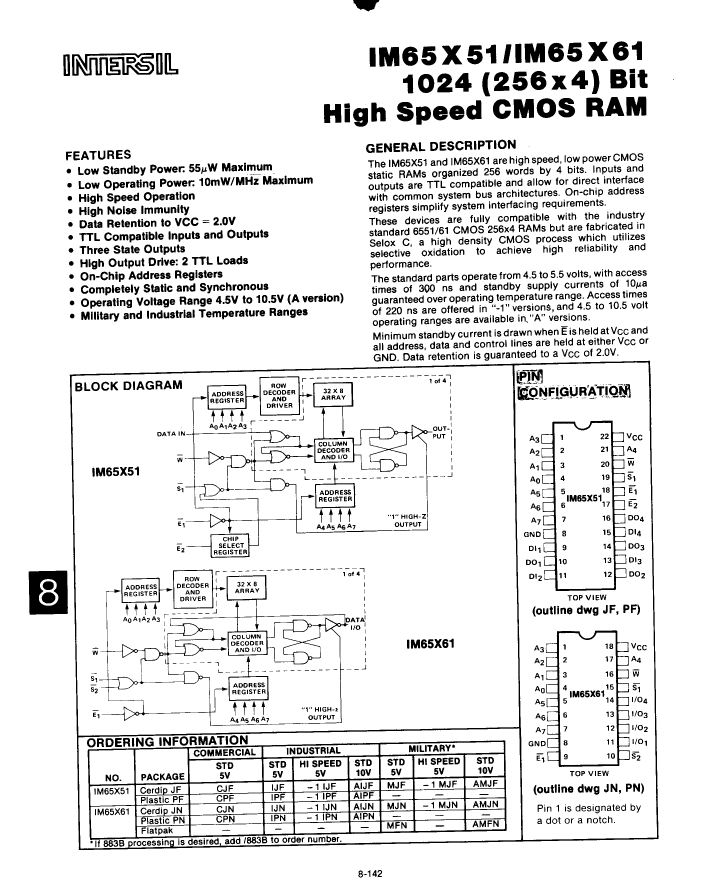

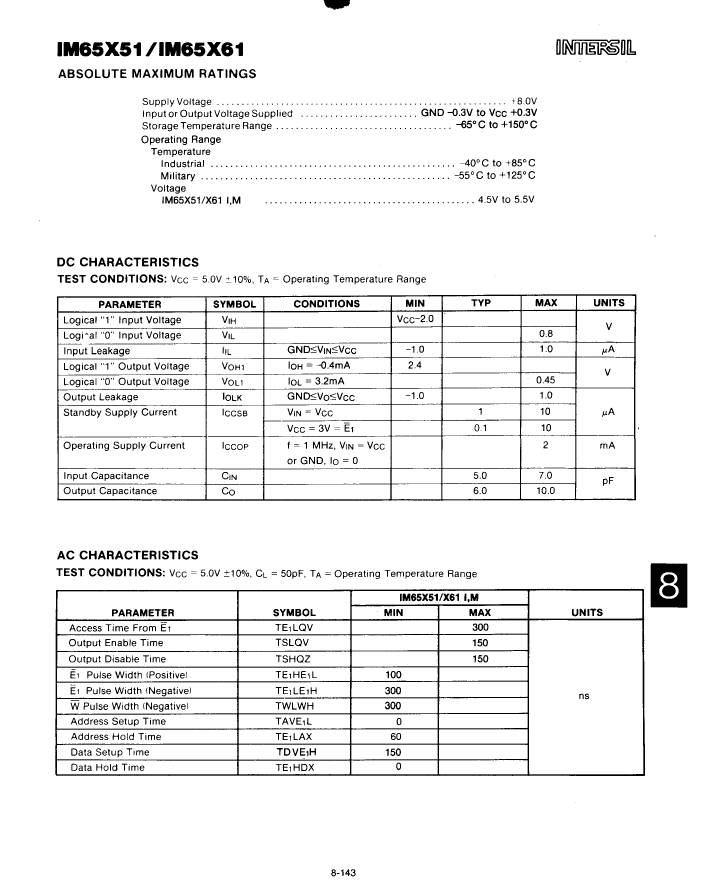

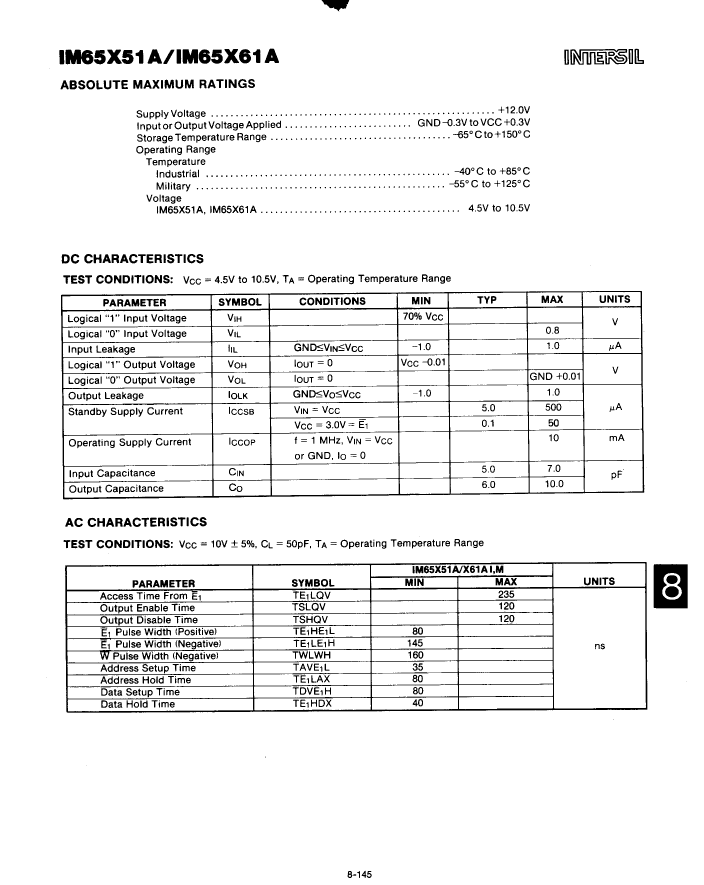

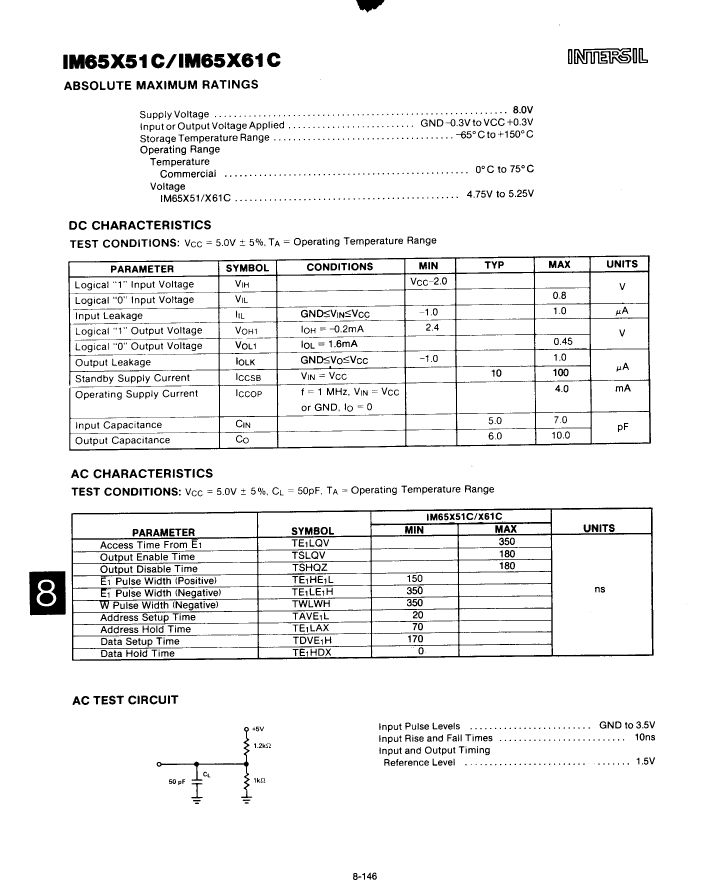

IM6561MDN/B Overview

Standard SRAM, 256X4, 360ns, CMOS, PDIP18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101268021
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	360 ns
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
memory density	1024 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	18
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256X4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.00001 A
Minimum standby current	4.5 V
Maximum slew rate	0.002 mA
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
