3.5mm Pitch Miniature Double Row Connector for Secondary Power (Product Compliant to UL/CSA Standard)
MDF6 Series
■Features
1. Pitch 3.5mm Miniature Type
This is a space saving miniature connector where the adjacent
contact pitch is set to 3.5mm and the opposite length is set to
5mm double-row alignment.
Inner type full lock
2. Current Capacity Secures 7A
Despite miniature power connector, the current capacity 7A is
secured using the AWG No.16 cable.
3. Box Type Header
The box type header secures scoop-proof insertion, and perfectly
prevents mis-insertion.

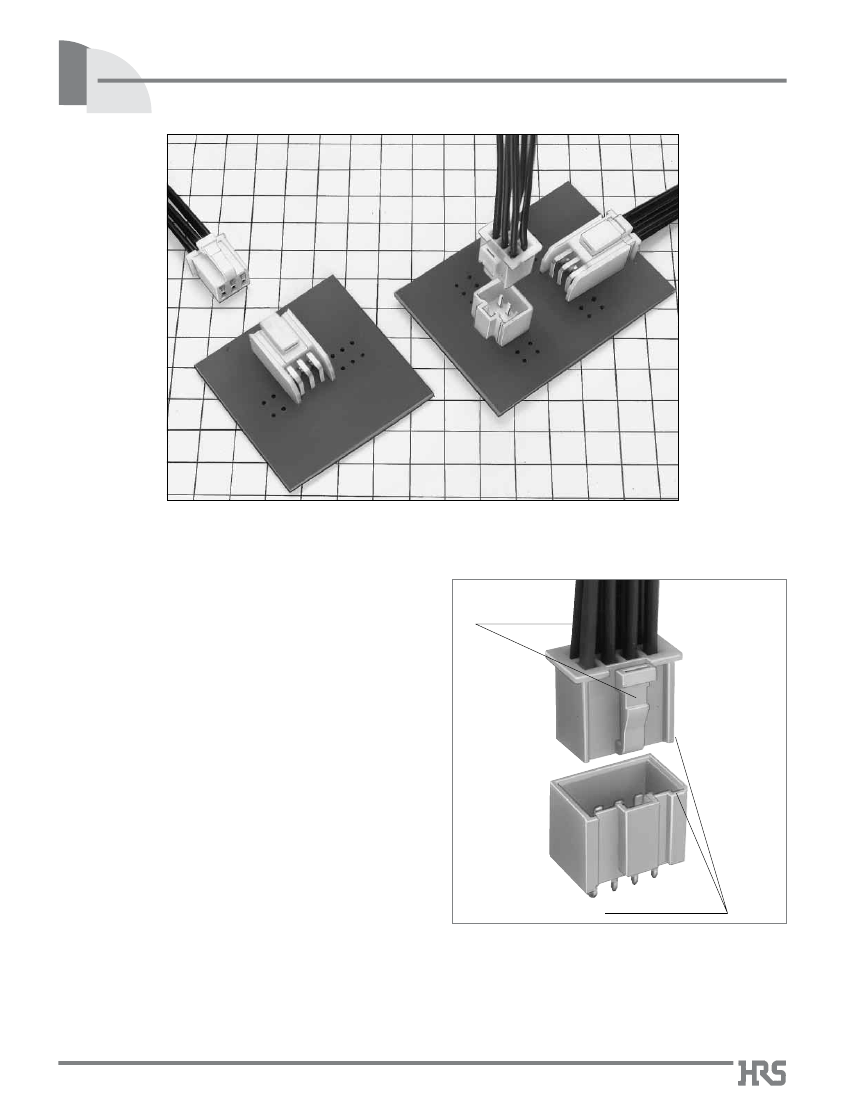

4. Inner Type Full Lock Adopted
Adopting the inner type full lock which the locking area is not
exposed to the outside, the connector can be engaged under the
high reliable and stable conditions.
■Applications
Secondary power units for various equipment
Mis-insertion protector
B133
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
Power (Product Compliant to UL/CSA
contact your Hirose sales representative.
MDF6 Series●3.5mm Pitch Miniature Double Row Connector for Secondary
website RoHS search at www.hirose-connectors.com, or
Standard)
■Product
Specifications
AWG#16
: 7A
Rating
Current rating
(Note1)
Cable Size
AWG#18 : 6A
AWG#20 : 5A
AWG#22 : 4A
Voltage rating
300V AC
Storage Temperature Range
Storage Moisture Range
-10
to
+60ç
(Note3)
-40
to
70%
(Note3)
Operating Temperature Range
Operating Moisture Range
-30
to
+85ç
(Note2)
-40
to
80%
Standard Value Applicant to the UL CSA Safety Standard
Rating
Current rating
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
1000M
ohms
min
No flashover or insulation breakdown.
30m
ohms
max
No electrical discontinuity of 1μs or more
Specification
500V DC
Cable Size
AWG#16
to #18
: 6A
AWG#20
to #22
: 4A
30V AC
■UL
CSA Safety Standard File No.
UL
:E52653
CSA
:LR95109
Condition
1500V AC/1 minute
100mA
Measured at the steel pin with 1.52∞0.76±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40±2ç and humidity of 90% to 95%
(-55ç: 30 minutes
➝
5
to
35ç: 10 minutes
(-85ç:
30 minutes
➝
5
to
35ç: 10 minutes) 5 cycles
Tin/tin-copper plated 30 cycles
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
4. Single Insertor/Extraction Force 0.4N(40gf) min., 4.9N(500gf) max.
No deformation of components affecting performance.
Note 1:
The rated current will be changed according to applicable cable sizes. The header rating only is 7A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Product
Crimping Socket
Crimping Contact for Socket
Pin Header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide resin
Phosphor bronze
Polyamide resin
Brass
Treatment
White (Natural)
Tin plated
White (Natural)
Tin-copper plated
Remarks
UL94V-0
–––––
UL94V-0
–––––
■Ordering
Information
●Connector
●Contact
MDF6
q
q
Series Name
e
Connector Type
-
*
DS - 3.5 C
w
e
r
t
: 3.5mm
r
Contact Pitch
t
Contact type
C
: Crimping socket
DSA: Straight dip
DS : Right angle dip
MDF6 - 1618 SCF
q
q
Applicable Cable Size
1618 : AWG#16
to #18
2022 : AWG#20
to #22
w
w
Packaging Type
SCF : Socket Contact, Reel
SC : Socket Contact, Bag
: MDF 6
w
Number of Contacts : 4
to
20
DS : Double row socket
DP : Double row pin header
B134
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
website RoHS search at www.hirose-connectors.com, or contact
UL/CSA Standard)

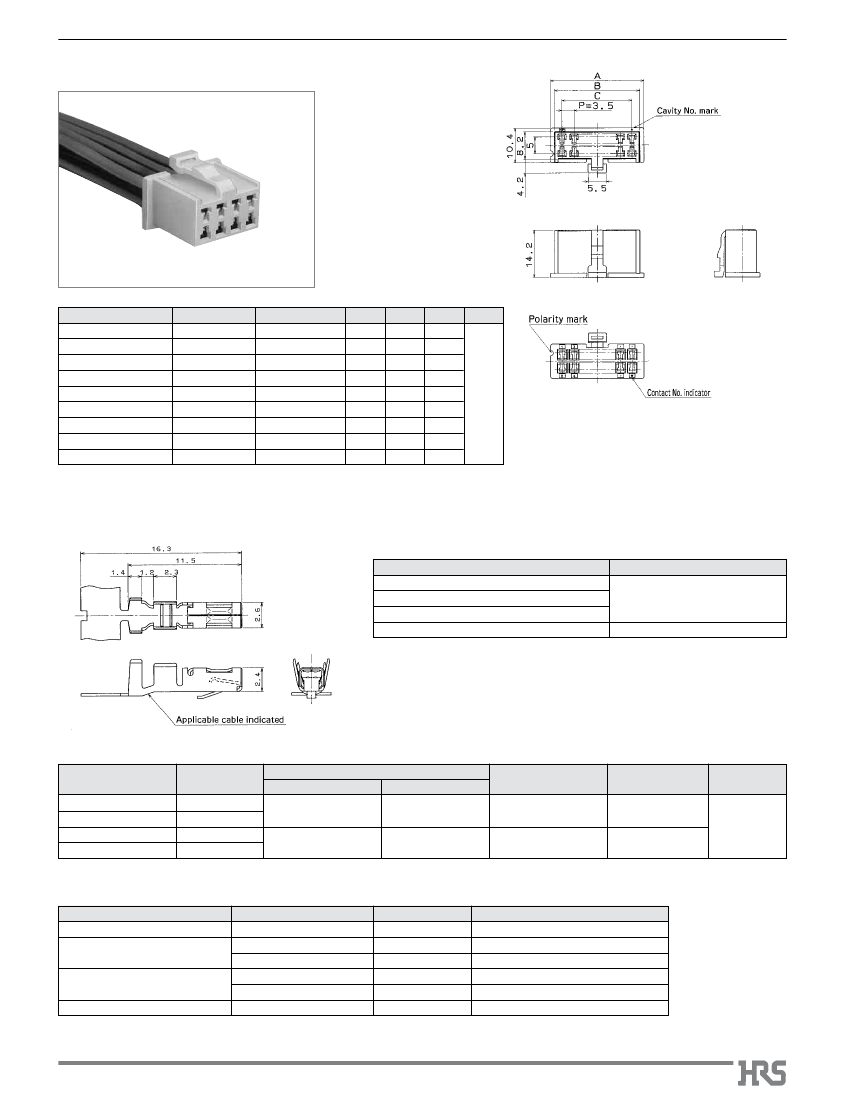

■Double
Row Socket
Photo: Connected State
Unit: mm
Part Number
CL No.
Number of Contacts A
B
C
RoHS
MDF6- 4DS-3.5C
547-0074-1
4
10.5
8.1
3.5
MDF6- 6DS-3.5C
547-0075-4
6
14.0 11.6
7.0
MDF6- 8DS-3.5C
547-0076-7
8
17.5 15.1 10.5
MDF6-10DS-3.5C
547-0077-0
10
21.0 18.6 14.0
MDF6-12DS-3.5C
547-0078-2
12
24.5 22.1 17.5 YES
MDF6-14DS-3.5C
547-0079-5
14
28.0 25.6 21.0
MDF6-16DS-3.5C
547-0080-4
16
31.5 29.1 24.5
MDF6-18DS-3.5C
547-0081-7
18
35.0 32.6 28.0
MDF6-20DS-3.5C
547-0082-0
20
38.5 36.1 31.5
Note: A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the products per bag.
■Socket
Crimping contact
●Applicable
Cable (Tin plating Annealed Copper Wire)
Conductor Size (Wire construction)
Jacket Diameter
AWG #16 (26cores/0.254mm)
AWG #18 (34cores/0.18 mm)
Ø2.5 to Ø2.0mm
AWG #20 (21cores/0.18 mm)
AWG #22 (17cores/0.16 mm)
Ø1.9 to Ø1.5mm
Note: If other cables are used instead of the applicable cable, please contact
Hirose sales department.
●Recommended
Cable
UL1061, UL1007
●Strip
Length
2.7
to
4.4mm
Part Number
MDF6-1618SCF
MDF6-1618SC
MDF6-2022SCF
MDF6-2022SC
CL No.
547-0070-0
547-0071-3
547-0072-6
547-0073-9
Applicable Cable
AWG Size
Jacket Diameter
#16
to
#18
#20
to
#22
2.5
to
2.0
1.9
to
1.5
Packaging Type
Reel
Bag
Reel
Bag
Quantity
5000
100
5000
100
RoHS
Yes
BApplicable
Crimping Tool
Part Number
CL No.
Applicable Contact
CM105
901-0005-4
---------
--------
AP105-MDF6-1618S
901-4512-4
MDF6-1618SCF
Applicator
AP105-MDF6-2022S
901-4513-7
MDF6-2022SCF
MDF6-TA1618HC
550-0203-5
MDF6-1618SC
Manual Crimping Tool
MDF6-TA2022HC
550-0204-8
MDF6-2022SC
Extraction Tool
DF-C-PO(A)
550-0170-8
MDF6-****SC(F)
Note: If any trouble has occurred due to other tools, which are not designated by Hirose, Hirose won't guarantee any products.
Type
Main press unit
B135
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
Power (Product Compliant to UL/CSA
contact your Hirose sales representative.
MDF6 Series●3.5mm Pitch Miniature Double Row Connector for Secondary
website RoHS search at www.hirose-connectors.com, or
Standard)

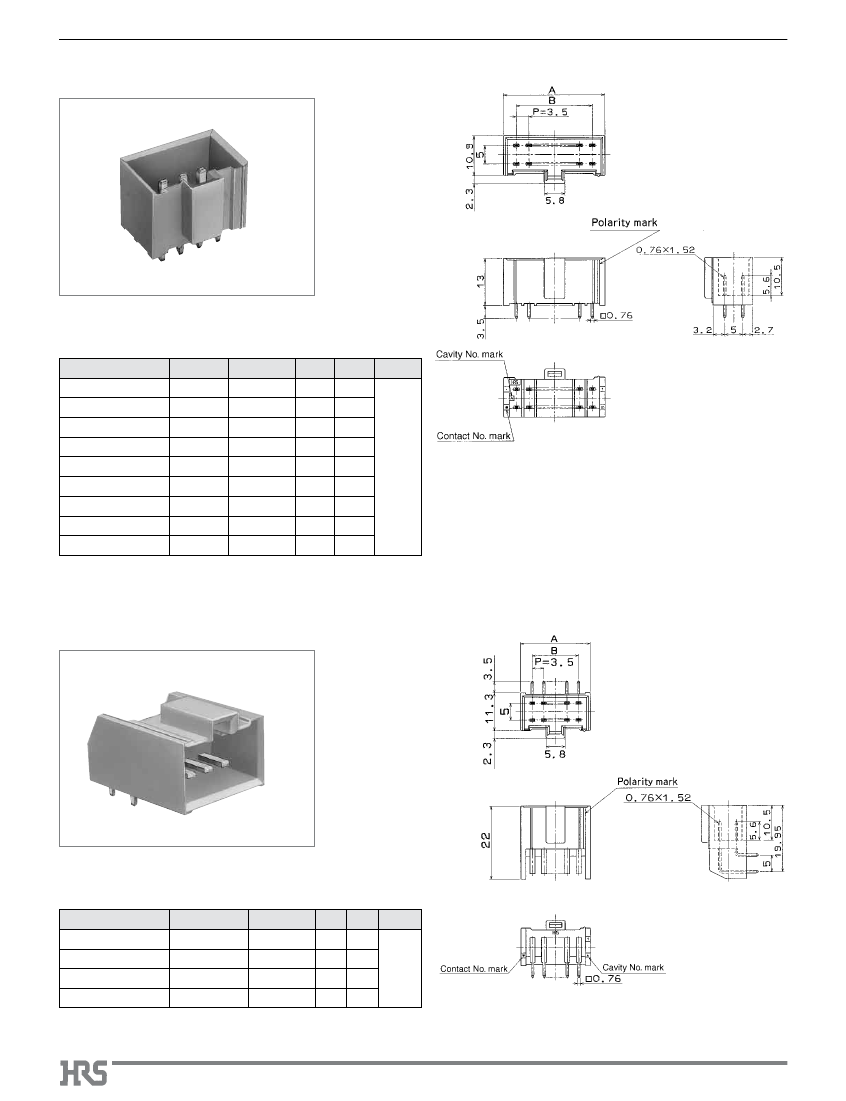

■Double
Row Pin Header: Straight Type
●Board
Hole Diameter :
Ø1.3
+0.1
+0
●
Applicable Board Thickness :
1.6±0.2
Unit: mm
Part Number
CL No.
Number of Contacts
4
6
8
10
12
14
16
18
20
A
10.5
14
17.5
21
24.5
28
31.5
35
38.5
B
3.5
7
10.5
14
17.5
21
24.5
28
31.5
Yes
RoHS
MDF6- 4DP-3.5DSA(05) 547-0083-2-05
MDF6- 6DP-3.5DSA(05) 547-0084-5-05
MDF6- 8DP-3.5DSA(05) 547-0085-8-05
MDF6-10DP-3.5DSA(05) 547-0086-0-05
MDF6-12DP-3.5DSA(05) 547-0087-3-05
MDF6-14DP-3.5DSA(05) 547-0088-6-05
MDF6-16DP-3.5DSA(05) 547-0089-9-05
MDF6-18DP-3.5DSA(05) 547-0090-8-05
MDF6-20DP-3.5DSA(05) 547-0091-0-05
Note1: A packaging quantity is delivered by the bag unit (100 pcs.). If needed,
please order the products per bag.
■Double
Row Pin Header: Right Angle Type
●Board
Hole Diameter :
Ø1.3
+0.1
+0
●
Applicable Board Thickness :
1.6±0.2
Unit: mm
Part Number
CL No.
Number of Contacts
4
6
8
10
A
14
21
7
14
B
RoHS
MDF6- 4DP-3.5DS(05) 547-0270-0-05
MDF6- 6DP-3.5DS(05) 547-0271-2-05
MDF6- 8DP-3.5DS(05) 547-0272-5-05
MDF6-10DP-3.5DS(05) 547-0273-8-05
10.5 3.5
17.5 10.5
Yes
Note1: A packaging quantity is delivered by the bag unit (100 pcs.). If needed,
please order the products per bag.
B136
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
