Power entry modules without line filter
www.schurter.com /PG05
6136

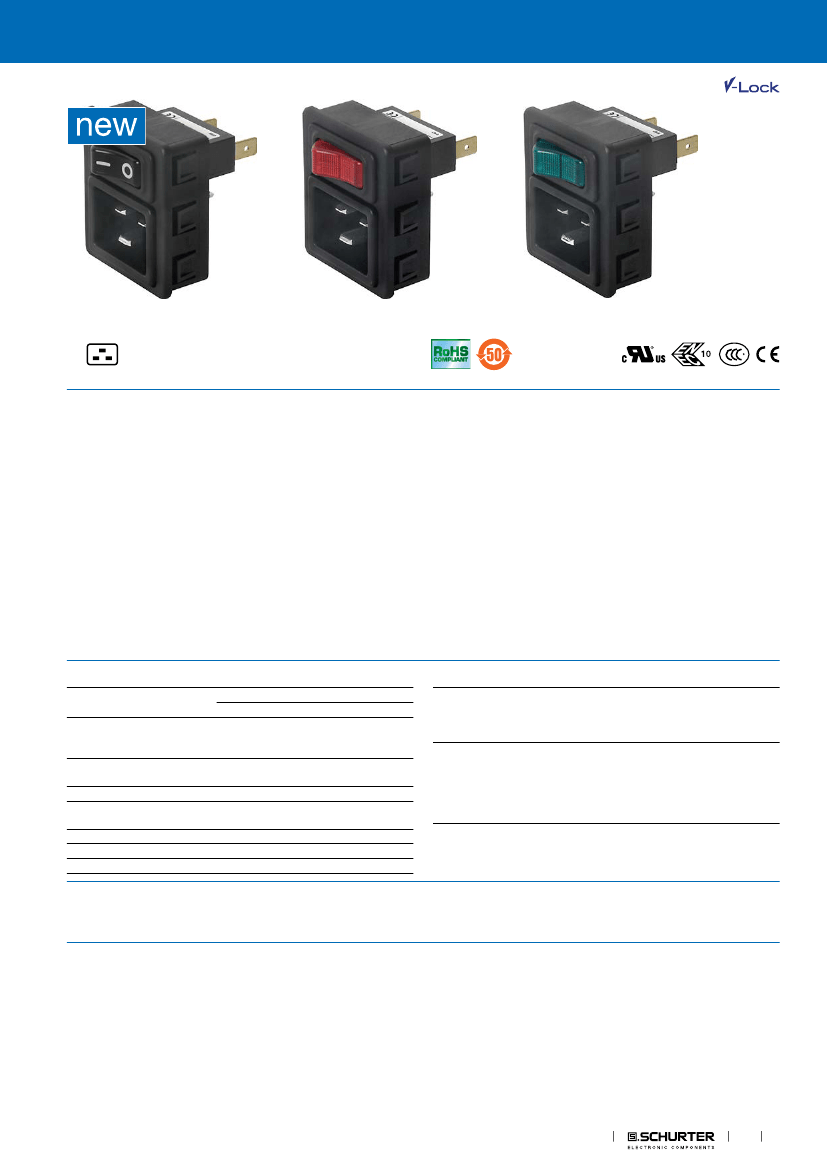

IEC Appliance Inlet C20 with Circuit Breaker TA35 1-pole
C20
70° C
Description
- Panel Mount :
Snap-in version from front side
- 2 Functions :
Appliance Inlet , Protection class I , Circuit breaker type TA35 , 1-pole
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- Unwired
- Switch non-illuminated or illuminated
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
Approvals
-
-
-
-
Approval Reference Type: 6136
VDE Certificate Number: 40025196
UL File Number: E96454
CCC File Number: 2015180204000153
- Pre-wired version
- Quick connect terminals 4.8 x 0.8 mm
- Protection class II, 70°C
References
Weblinks
Alternative: version for 10 A (15 A)
6135
Substitute for type
1624-K
pdf datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
16 A / 250 VAC; 50 Hz
20 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 60 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C20 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 16 A,
Protection Class I
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
1-pole rocker switch, illuminated or non-
illuminated.
Conditional short circuit Inc:
2000 A
Circuit Breakers
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
General Product
Information
Connectors
1
Power entry modules without line filter
www.schurter.com /PG05
6136
Packaging unit
15 Pcs

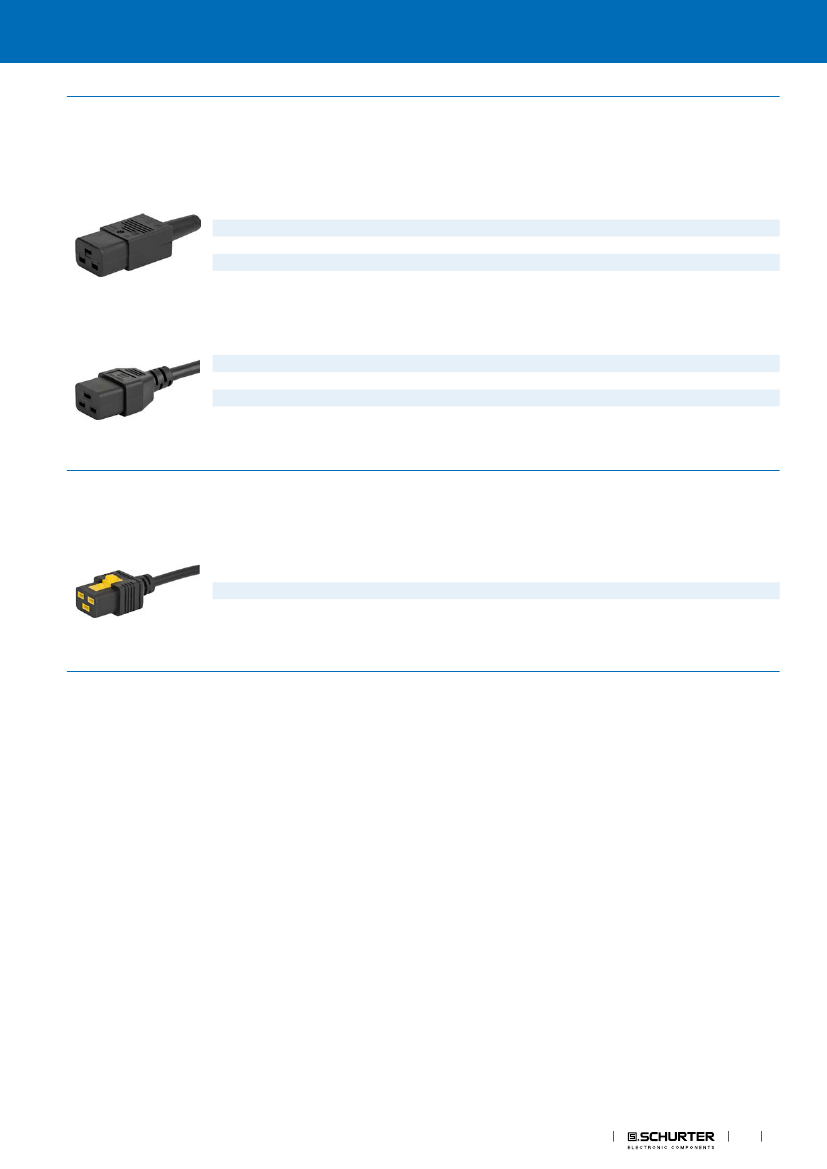

Mating Outlets/Connectors
Category / Description
Connector Overview complete
IEC Connector C19, Rewireable, Straight
IEC Connector C19, Rewireable, Angled
IEC Connector C19, Rewireable, Straight
Connector further types to 6136
4795
4790
0104U
Power Supply Cord Overview complete
Cord Sets 16 A, Europlug, 2.5 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, Interconnection, 1.0 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, Interconnection, 2.0 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, North America, 2.5 m, Connector IEC C19, SJT 3x14 AWG, black
Power Supply Cord further types to 6136
6004.0395
6020.0392
6020.0394
6009.5195
Mating Outlets/Connectors shuttered
Power Cord Overview complete
Overview Power Cord with IEC Appliance Connector C19, V-Lock, straight
Power Cord further types to 6136
VAC19KS
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
5
14.09.2017
