54241031-B: Descriptionautomotive connectors 10w FM hsing gry 1.5mm term SZ; CategoryThe connector; File Size92KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

54241031-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54241031-B	-	-	View	Buy Now

54241031-B Overview

automotive connectors 10w FM hsing gry 1.5mm term SZ

54241031-B Parametric

Parameter Name	Attribute value
Manufacture	Delphi Connection Systems
Product Category	Automotive Connectors
Produc	Connectors
Number of Positions	10
Gende	Female
Mounting Style	Wire
Wire Gauge Range	22
Applicati	Wire to Wire
Associated Terminals	h
Col	Gray
Current Rating	25 A
Description/Functi	10 Female, Connector, APEX 1.5 mm, Grey, Sealed
Drawing	h
Family	APEX
Housing Material	Polyamide (PA)
Index Type	B
Locking Mechanism	CPA
Material	Ultramid A3EG7 Nylon 6/6 GF35
Mating Part Numbe	54241001
Number of Rows	2
Operating Temperature Range	- 40 C to + 125 C
Pitch	3.5 mm
Second Mating Part Numbe	54241005
Three D Model	h
Type	Connec

Preview

Download Datasheet

View All

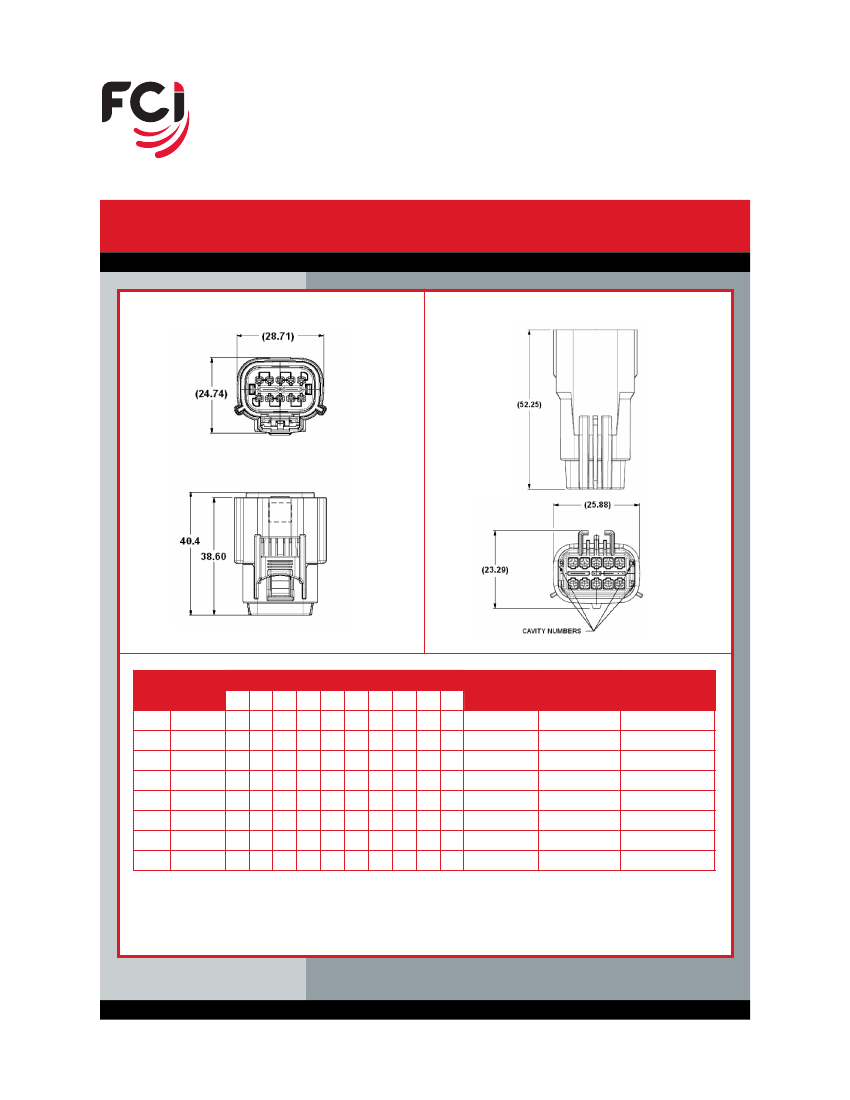

APEX 150

™

Sealed Connection Systems

FCI 10 Way APEX 150 Connection System

FEMALE

MALE

INDEX

TYPE

HOUSING

COLOR

BLACK

GREY

BROWN

GREEN

BLACK

GREY

BLACK

GREY

PLUGGED SEAL POSITIONS (X)

FEMALE

MALE ASSEMBLY MALE ASSEMBLY

ASSEMBLY

PART NUMBER

(SLOT 1)

(SLOT 2)

54241030

54241031

54241032

54241033

54241000

54241001

54241002

54241003

54241008

54241009

54241012

54241013

54241004

54241005

54241006

54241007

54241010

54241011

54241014

54241015

54241034

54241035

54241036

54241037

NOTE 1: Assembly part numbers also available without CPA. See sale drawing for part numbers

NOTE 2: See Page 8 for explanation of clip slot type 1 and clip slot type 2.

Additional plugged cavity configurations are available upon request.

54241031-B Related Products

	54241031-B	54241030N	54241032N	54241030N-B	54241000-B	54241002
Description	automotive connectors 10w FM hsing gry 1.5mm term SZ	automotive connectors 10w FM hsing blk 1.5mm term SZ NO cpa	automotive connectors apex 150 10w female key C	automotive connectors 10w FM hsing blk 1.5mm term SZ NO cpa	automotive connectors 10way male housing black 1.5mm term SZ	automotive connectors 10-W M 150 SL conn
Manufacture	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems	-
Product Category	Automotive Connectors	Automotive Connectors	Automotive Connectors	Automotive Connectors	Automotive Connectors	-
Produc	Connectors	Connectors	Connectors	Connectors	Connectors	-
Number of Positions	10	10	10	10	10	-
Gende	Female	Female	Female	Female	Male	-
Mounting Style	Wire	Wire	-	Wire	Wire	-
Wire Gauge Range	22	22	22	22	22	-
Applicati	Wire to Wire	Wire to Wire	-	Wire to Wire	Wire to Wire	-
Associated Terminals	h	h	h	h	h	-
Col	Gray	Black	Brow	Black	Black	-
Current Rating	25 A	25 A	-	25 A	25 A	-
Description/Functi	10 Female, Connector, APEX 1.5 mm, Grey, Sealed	10 Female, Connector, APEX 1.5 mm, Black, Sealed	-	10 Female, Connector, APEX 1.5 mm, Black, Sealed	10 Male, Connector, APEX 1.5 mm, Black, Sealed	-
Drawing	h	h	h	h	h	-
Family	APEX	APEX	APEX	APEX	APEX	-
Housing Material	Polyamide (PA)	Polyamide (PA)	-	Polyamide (PA)	Polyamide (PA)	-
Index Type	B	A	Index C	A	A	-
Locking Mechanism	CPA	CPA	CPA	CPA	-	-
Material	Ultramid A3EG7 Nylon 6/6 GF35	Ultramid A3EG7 Nylon 6/6 GF35	Polyamide (PA)	Ultramid A3EG7 Nylon 6/6 GF35	Ultramid A3EG7 Nylon 6/6 GF35	-
Mating Part Numbe	54241001	54241000	54241002	54241000	54241030	-
Number of Rows	2	2	2	2	2	-
Operating Temperature Range	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	-
Pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	-
Second Mating Part Numbe	54241005	54241004	54241106	54241004	-	-
Three D Model	h	h	h	h	h	-
Type	Connec	Connec	-	Connec	Connec	-
