54201459

Description
automotive connectors 14wm, NO hole ind A
CategoryThe connector
File Size125KB，1 Pages
ManufacturerDelphi Connection Systems
Download Datasheet Parametric Compare View All

54201459 Online Shopping

Suppliers Part Number Price MOQ In stock
54201459 - - View Buy Now

54201459 Overview

automotive connectors 14wm, NO hole ind A

54201459 Parametric

Parameter NameAttribute value
ManufactureDelphi Connection Systems
Product CategoryAutomotive Connectors
Associated Terminalsh
ProducConnectors
Number of Positions14
GendeFemale
Mounting StyleWire
Termination StyleCrim
ColBlack
Drawingh
FamilyAPEX
Housing MaterialPolyamide (PA)
Index TypeIndex A
MaterialPolyamide (PA)
Mating Part Numbe54201411
Number of Rows2
Operating Temperature Range- 40 C to + 125 C
Pitch5.25 mm
Three D Modelh

Preview

Download Datasheet

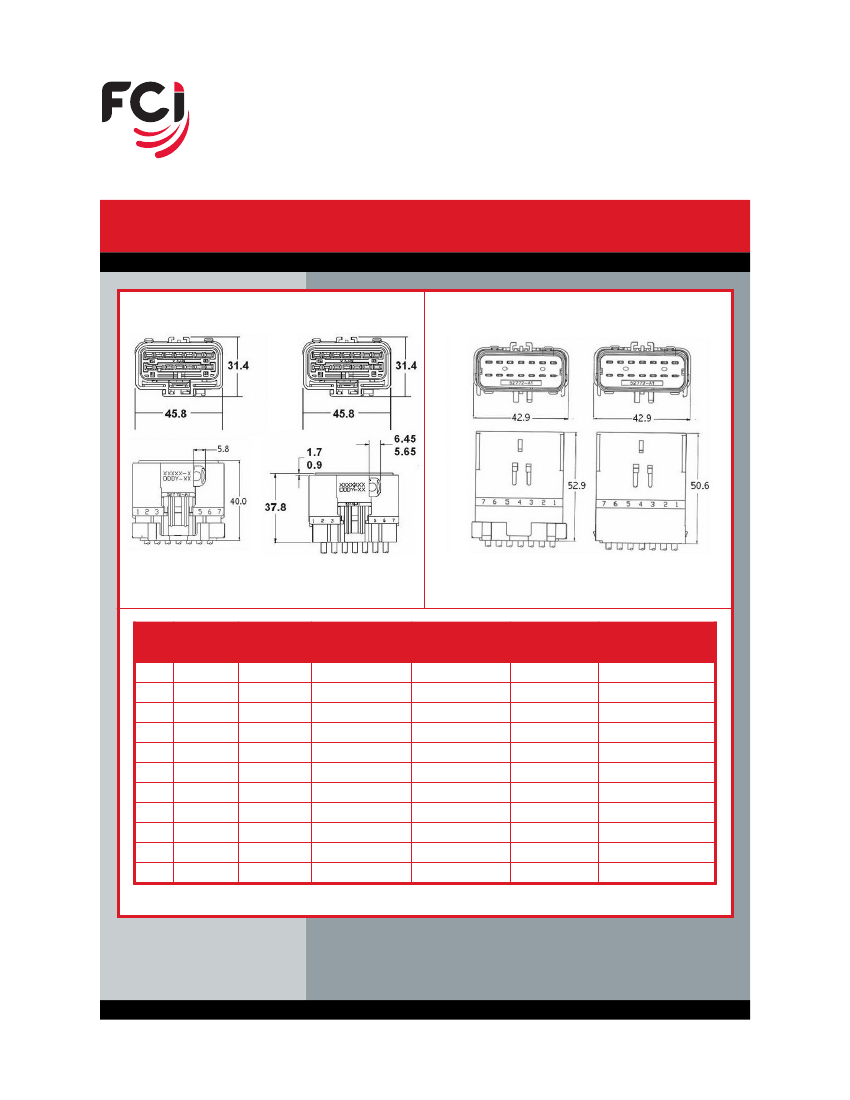

APEX 2.8
™
Connection Systems
FCI 14-Way APEX 2.8 mm Connection System
FEMALE
MALE
Sealed Assembly
Unsealed Assembly
Sealed Assembly
Unsealed Assembly
INDEX
TYPE
A
A
B
B
C
D
A
A
B
B
C
HOUSING
COLOR
BLACK
BLACK
LT GREY
LT GREY
DK GRAY
NATURAL
BLACK
BLACK
LT GREY
DK GREY
NATURAL
SEALED/
UNSEALED
SEALED
UNSEALED
SEALED
UNSEALED
SEALED
SEALED
SEALED
SEALED
SEALED
SEALED
SEALED
FEMALE ASSEMBLY
PART NUMBER
54201411
54201442
54201412
54201453
54201413
54201414
54201445N
—
—
—
—
MALE ASSEMBLY
PART NUMBER
54201415
54201404
54201416
54201405
54201417
54201418
—
54201459
54201462
54201463
54201464
TEMPERATURE
RATING OF
MATERIAL
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
SEAL W/NO HOLES
SEAL W/NO HOLES
SEAL W/NO HOLES
SEAL W/NO HOLES
SEAL W/NO HOLES
WIRE INSULATION
RANGE PER CAVITY
(mm)
1.70 – 3.35
1.50 – 4.09
1.70 – 3.35
1.50 – 4.09
1.70 – 3.35
1.70 – 3.35
USED AS CAP
USED AS CAP
USED AS CAP
USED AS CAP
USED AS CAP
Note: Female part numbers with the N suffix are without CPA latch.
