33012-3002 (Mouser Reel) datasheet, PDF

Datasheet> All Categories > The connector> 33012-3002 (Mouser Reel)

33012-3002 (Mouser Reel): Descriptionautomotive connectors mx150 crmp18-20awg L reel of 1000; CategoryThe connector; File Size45KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

33012-3002 (Mouser Reel) Overview

automotive connectors mx150 crmp18-20awg L reel of 1000

33012-3002 (Mouser Reel) Parametric

Parameter Name	Attribute value
Manufacture	Molex
Product Category	Automotive Connectors
RoHS	Yes
Produc	Terminals
Gende	Female
Termination Style	Crim
Contact Plating	Ti
Wire Gauge Range	20 AWG
Contact Material	High Performance Alloy (HPA)
Packaging	Reel
Factory Pack Quantity	1000
Type	Female

Preview

Download Datasheet

View All

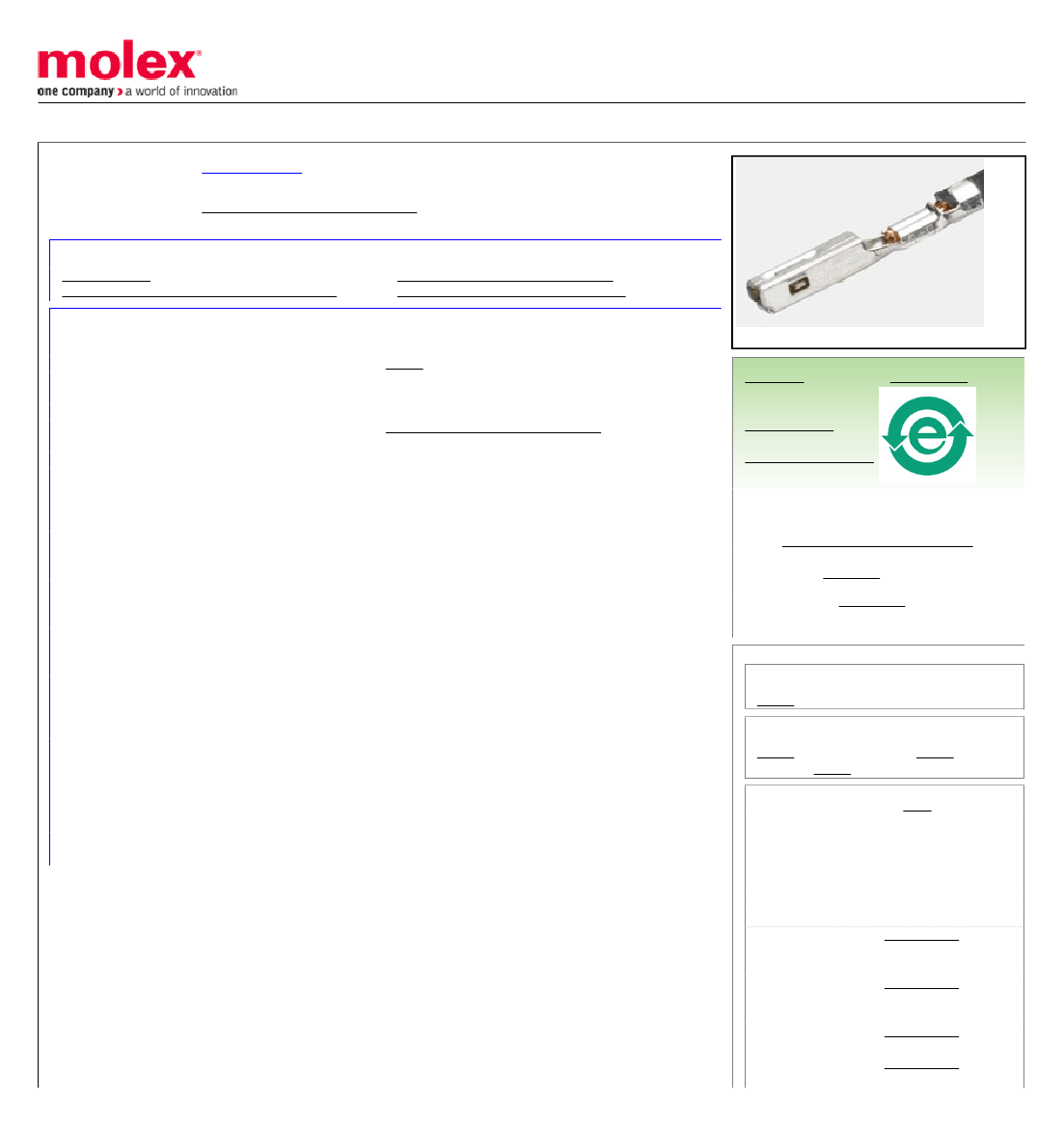

This document was generated on 06/03/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

33012-3002

Active

MX150™ Sealed Connector System

MX150™ Female Terminal Sealed, Tin Plating, 18 and 20 AWG, Left Reel Payoff

Documents:

Drawing (PDF)

Application Specification AS-33012-002 (PDF)

Test Summary TS-33012-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Terminals

33012

Power

Left Reel Payoff, Small Polarization Rib

Yes

MX150™ Sealed Connector System

MX150™

822350084291

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

High Performance Alloy (HPA)

Tin

0.434/g

Reel

0.508µm

Crimp or Compression

2.60mm max.

18, 20

0.75 - 1.00

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Voltage - Maximum

22A

250V

Search Parts in this Series

33012Series

Use With

33472 Dual Row Housing, 33476 Hybrid

Housing, 33471 Single Row Housing

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

FineAdjust™

0639000800

Applicator for MX150

Receptacle

FineAdjust™

0639000900

Applicator for MX150

Receptacle

Hand Crimp Tool,

0638116000

18-22AWG

Hand Crimp Tool,

0638116100

Metric 1.00 and 1.50

Material Info

Reference - Drawing Numbers

Application Specification

Sales Drawing

Test Summary

AS-33012-002

SD-33012-002

TS-33012-002

33012-3002 (Mouser Reel) Related Products

	33012-3002 (Mouser Reel)	33012-3002 (Cut Strip)
Description	automotive connectors mx150 crmp18-20awg L reel of 1000	automotive connectors mx150 crmp18-20awg L cut strip of 100
Manufacture	Molex	Molex
Product Category	Automotive Connectors	Automotive Connectors
RoHS	Yes	Yes
Produc	Terminals	Terminals
Gende	Female	Female
Termination Style	Crim	Crim
Contact Plating	Ti	Ti
Wire Gauge Range	20 AWG	20 AWG
Contact Material	High Performance Alloy (HPA)	High Performance Alloy (HPA)
Factory Pack Quantity	1000	100
Type	Female	Female
