Part Number

Search

54001629

Description
automotive connectors male 1.5mm term 16-18 awg palladium
CategoryThe connector    Connector bracket
File Size101KB,1 Pages
ManufacturerDelphi Connection Systems
Download Datasheet Parametric Compare View All

54001629 Online Shopping

Suppliers Part Number Price MOQ In stock
54001629 - - View Buy Now

54001629 Overview

automotive connectors male 1.5mm term 16-18 awg palladium

54001629 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCONTACT FINISH: GOLD
Assembly nameCONTACT
Maximum number of cable entries0.059 inch
Minimum cable entry0.095 inch
Connector bracket typeCONNECTOR ACCESSORY
Contact point genderMALE
DIN complianceNO
IEC complianceNO
MIL complianceNO
Maximum operating temperature125 °C
Terminal typeCRIMP
Maximum wire diameter16 AWG
Minimum wire diameter22 AWG
Base Number Matches1

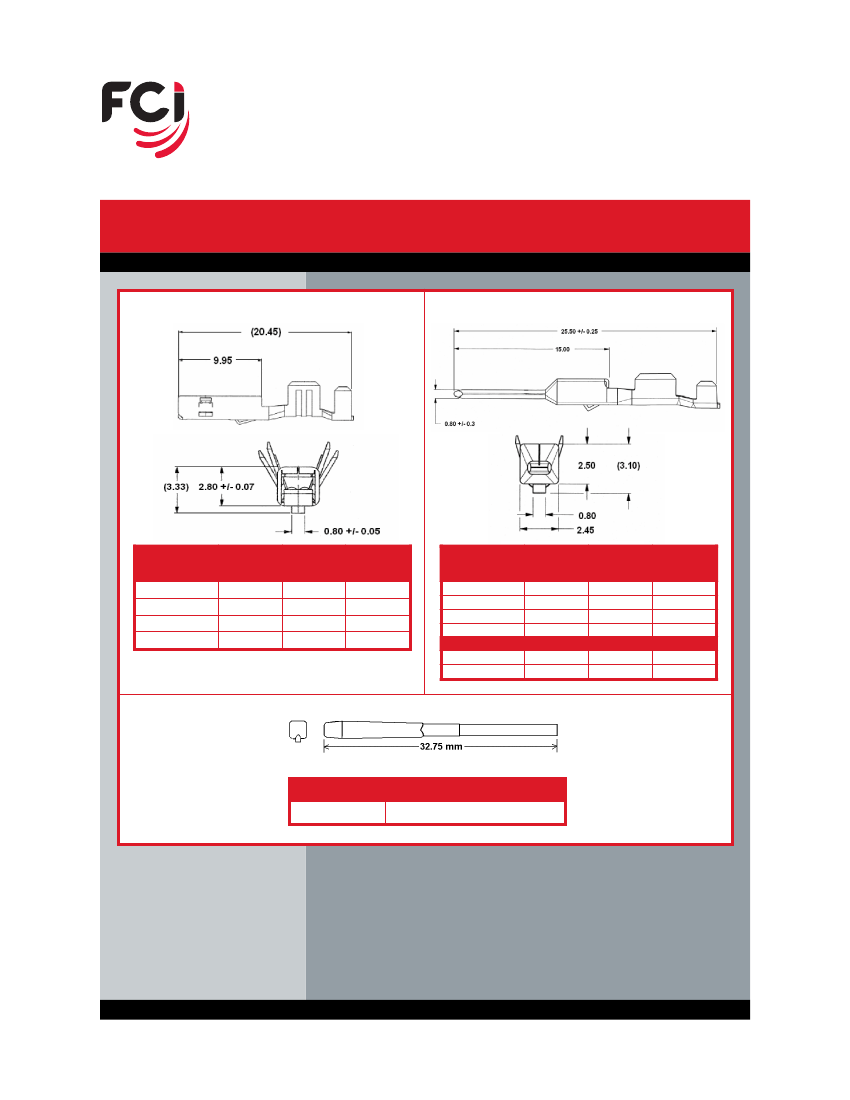

APEX 150
Sealed Connection Systems
APEX 150 Terminals & Cavity Plug
FEMALE
MALE
FEMALE
TERMINAL
PART NUMBER
54002000
54001625
54001627
54002002
WIRE GAGE
20-22
18-20
16-18
20-22
TERMINAL
MATERIAL
CuSn
CuSn
CuTeSn
CuTeSn
TERMINAL
PLATING
Sn
Sn
NiPdAu
NiPdAu
MALE TERMINAL WIRE GAGE
PART NUMBER
TERMINAL
MATERIAL
TERMINAL
PLATING
54002001
20-22
CuSn
Sn
54001626
18-20
CuSn
Sn
54001628
16-18
CuTeSn
NiPdAu
54002003
20-22
CuTeSn
NiPdAu
MALE TERMINAL FOR SHORTING BAR APPLICATIONS
54002004
20-22
CuTeSn
NiPdAu
54001629
16-18
CuTeSn
NiPdAu
PART NUMBER
54241629
DESCRIPTION
APEX 150 Cavity Plug
9

54001629 Related Products

54001629 54002003-L 54002000RWA 54001628RWC 54002004RWC 54002003RWA 54002003RWC 54001628
Description automotive connectors male 1.5mm term 16-18 awg palladium automotive connectors apex 150 M unsl AU 20/22 gage automotive connectors female 1.5mm term 20-22 awg tin automotive connectors male 1.5mm term 16-18 awg gold automotive connectors apex150 male AU SB 22-20awg automotive connectors apex 150 M unsl AU 20/22 gage automotive connectors apex 150 M unsl AU 20/22 gage automotive connectors male 1.5mm term 16-18 awg gold
Manufacture - Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems Delphi Connection Systems -
Product Category - Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors -
Produc - Terminals Terminals Terminals Terminals Terminals Terminals -
Gende - Male Female Male Male Male Male -
Mounting Style - Wire Wire Wire Wire Wire Wire -
Termination Style - Crim Crim Crim - Crim Crim -
Contact Plating - Nickel, Palladium, Gold Ti Nickel, Palladium, Gold Nickel, Palladium, Gold Nickel, Palladium, Gold Nickel, Palladium, Gold -
Contact Type - Terminal Terminal Terminal - Terminal Terminal -
Wire Gauge Range - 22-20 22-20 18-16 - 22-20 22-20 -
Applicati - 1.5 mm Box / Blade 1.5 mm Box / Blade 1.5 mm Box / Blade - 1.5 mm Box / Blade 1.5 mm Box / Blade -
Contact Material - Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy -
Crimp Tool - h h h - h h -
Description/Functi - Male, Terminal, APEX 1.5 mm, Sealed Female, Terminal, APEX 1.5 mm, Sealed Male, Terminal, APEX 1.5 mm, Sealed - Male, Terminal, APEX 1.5 mm, Sealed Male, Terminal, APEX 1.5 mm, Sealed -
Drawing - h h h h h h -
Family - APEX APEX APEX APEX APEX APEX -
Material - CuTeS CuS CuTeS - CuTeS CuTeS -
Mating Part Numbe - 54002002 54002001 54001627 - 54002002 54002002 -
Mounting Angle - Vertical Vertical Vertical - Vertical Vertical -
Mounting Method - Wire Wire Wire - Wire Wire -
Operating Temperature Range - - 40 C to + 150 C - 40 C to + 125 C - 40 C to + 150 C - - 40 C to + 150 C - 40 C to + 150 C -
Spring Material - Beryllium Coppe Beryllium Coppe Beryllium Coppe - Beryllium Coppe Beryllium Coppe -
Terminal Winding Options - h h h - h h -
Type - Terminal Terminal Terminal - Terminal Terminal -
Packaging - - Reel Reel Reel Reel Reel -
