T8652VBCBB059W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T8652VBCBB059W

T8652VBCBB059W: DescriptionRocker Switch, DPST, Momentary, Solder Terminal, Curved Rocker Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size121KB，2 Pages; ManufacturerArcolectric

Download Datasheet Parametric View All

T8652VBCBB059W Overview

Rocker Switch, DPST, Momentary, Solder Terminal, Curved Rocker Actuator, Panel Mount, ROHS COMPLIANT

T8652VBCBB059W Parametric

Parameter Name	Attribute value
Objectid	1584528114
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	CURVED ROCKER
body width	21 mm
body height	12.5 mm
Body length or diameter	24 mm
Contact (AC) maximum rated R load	6A@277VAC
Maximum contact current (AC)	6 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	8600
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

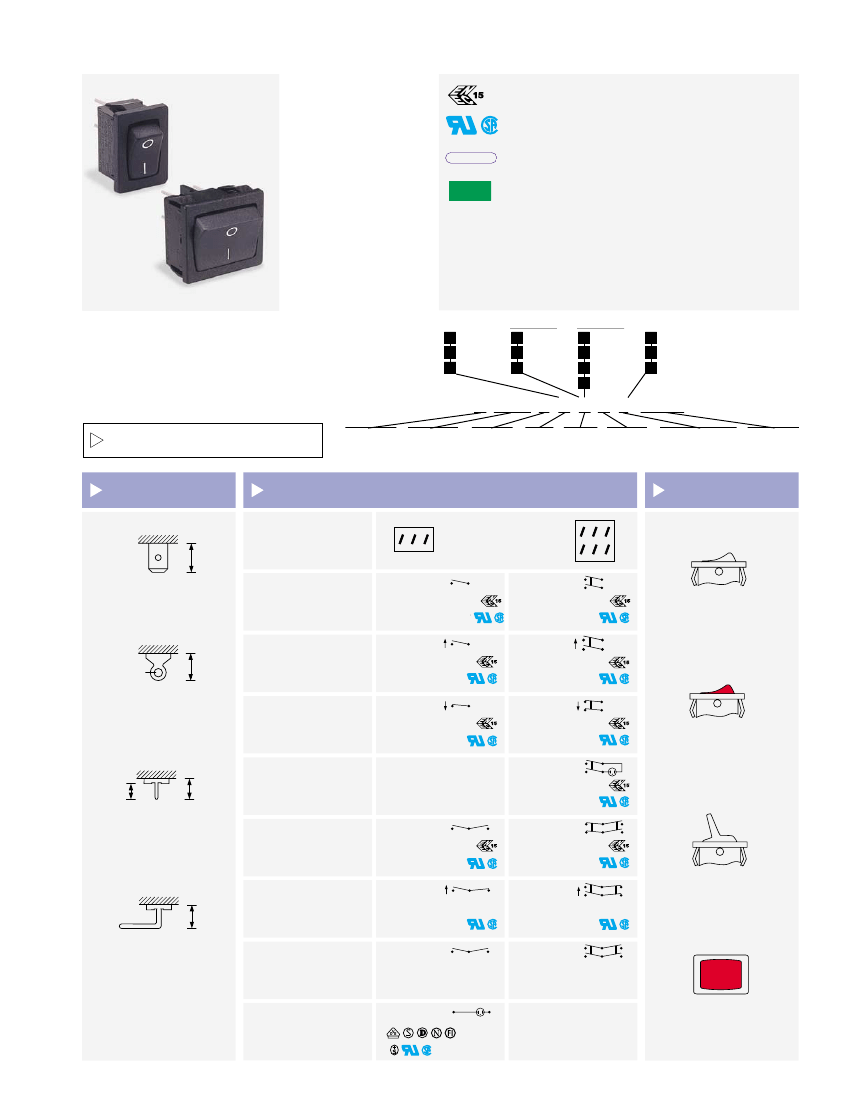

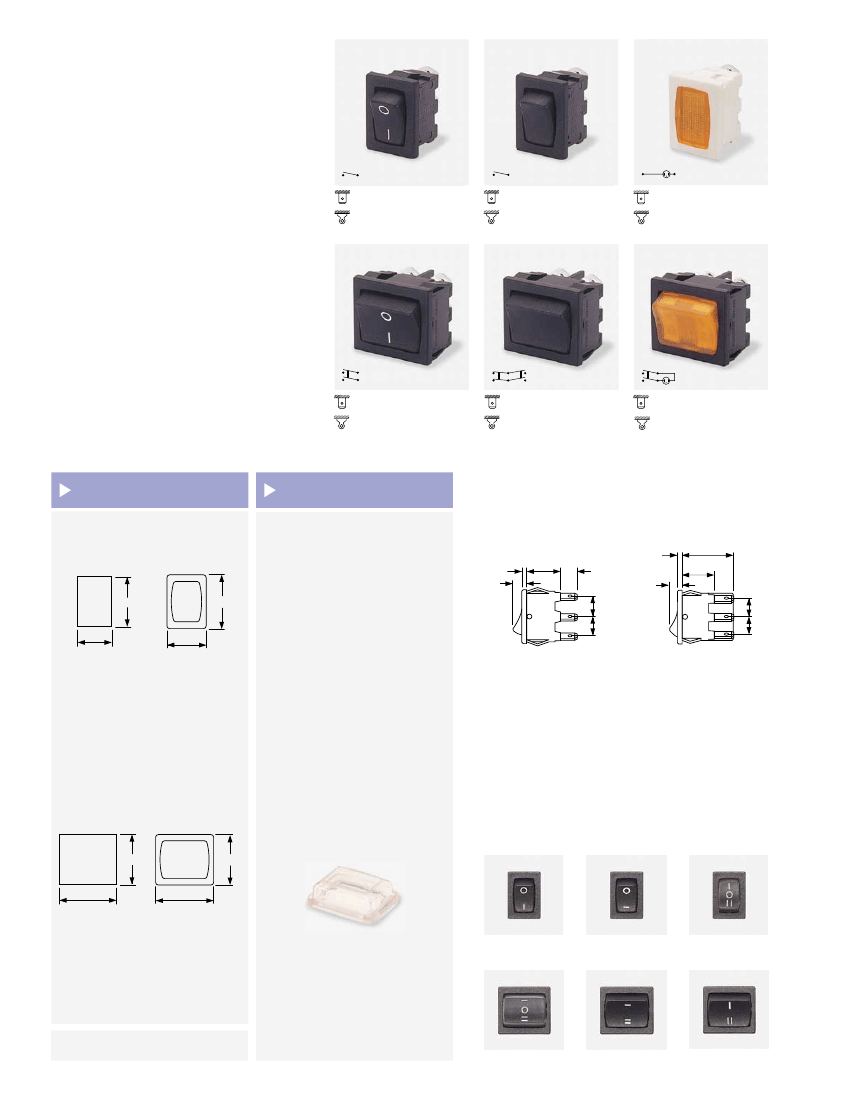

8600 Rocker Switches - Miniature

Miniature rocker switch

Ratings up to 16A,

250Vac

Single & double pole

ON/OFF, C/O, biased and

centre off switching

Push on, solder and PCB

terminals

Illuminated and non-

illuminated

Matching indicators

Bezel size

single: 21 x 15

double: 21 x 24

BLACK

RED

WHITE

In house test

10A 250Vac Single & Double Pole

10(4)A 250Vac T90

(unless noted below)

UL CSA See ratings below

UL 65˚C, file E45221, CSA file LR10990

Inrush 50A to EN61058-1 & 10A 24Vdc

RoHS compliant

RoHS

3mm contact gap except where marked µ.

Technical data on pages 4 & 5 (switches), 66 (indicators).

NON-LIT

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

125V NEON

250V NEON

12V INCANDESCENT

H 8653 V B B R 2 551W

ORDER FORMAT

TERMINAL

7.4

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

(if required)

ROCKER

Curved

LEGEND &

OPTIONS

Approvals &

ratings vary

with function

1 2 3

ON OFF Switches

are ON when pressed

over terminal 3

1 2 3

4 5 6

4.8 x 0.8

ON - OFF

8600

10(4)A

16A 250V, 10A 277V

HP 277V,

HP 125V

8650

10(4)A

10A 277V

HP 277V,

HP 125V

8601

O2.2

6.4

8651

6(1)A

6A 277V

ON - OFF

(momentary ON)

Curved (lit)

6(1)A

16A 250V, 6A 277V

3.5 x 0.8

Solder

ON - OFF

(momentary OFF)

8602

10A

16A 250V, 10A 277V

8652

10(4)A

6A 277V

3.7

5.3

ON - OFF

Lit

N/A

8653

10(4)A

6A 277V

Paddle lever

(Single pole non-lit only)

PCB

0.8 Sq

ON - ON

8610

6(1)A

10A 277V

HP 277V,

HP 125V

8660

6(1)A

10A 277V, 1/2HP 277V

HP 277V,

HP 125V

ON - OFF

(momentary 1 side)

8611

6A 277V

8661

6A 277V

6.0

Flat

Indicator only (Single pole)

Right angle PCB

1.3 x 0.8

Contact the factory for details

8620 µ

ON - OFF - ON

See page 14

8670 µ

See page 14

Double Pole switches with “X”

terminals are supplied without

terminal barriers

8630

Indicator

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
