CE2S211C02: Descriptionautomotive connectors 2P coax,1P power board conn, top tab; CategoryThe connector; File Size279KB，10 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

CE2S211C02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CE2S211C02	-	-	View	Buy Now

CE2S211C02 Overview

automotive connectors 2P coax,1P power board conn, top tab

CE2S211C02 Parametric

Parameter Name	Attribute value
Manufacture	JAE Electronics
Product Category	Automotive Connectors
RoHS	Yes
Produc	Connectors
Number of Positions	2
Gende	Female
Mounting Style	Wire
Termination Style	Crim
Contact Plating	Gold
Col	Light Gray
Contact Material	Copper Alloy
Mounting Method	Cable
Packaging	Tray
Factory Pack Quantity	1
Type	Board Connec

Preview

Download Datasheet

View All

COMPONENTS PRODUCT INFORMATION

NEW

Small Coaxial Connectors for Automotive Antenna

CONNECTOR

MB-0196-3

December 2008

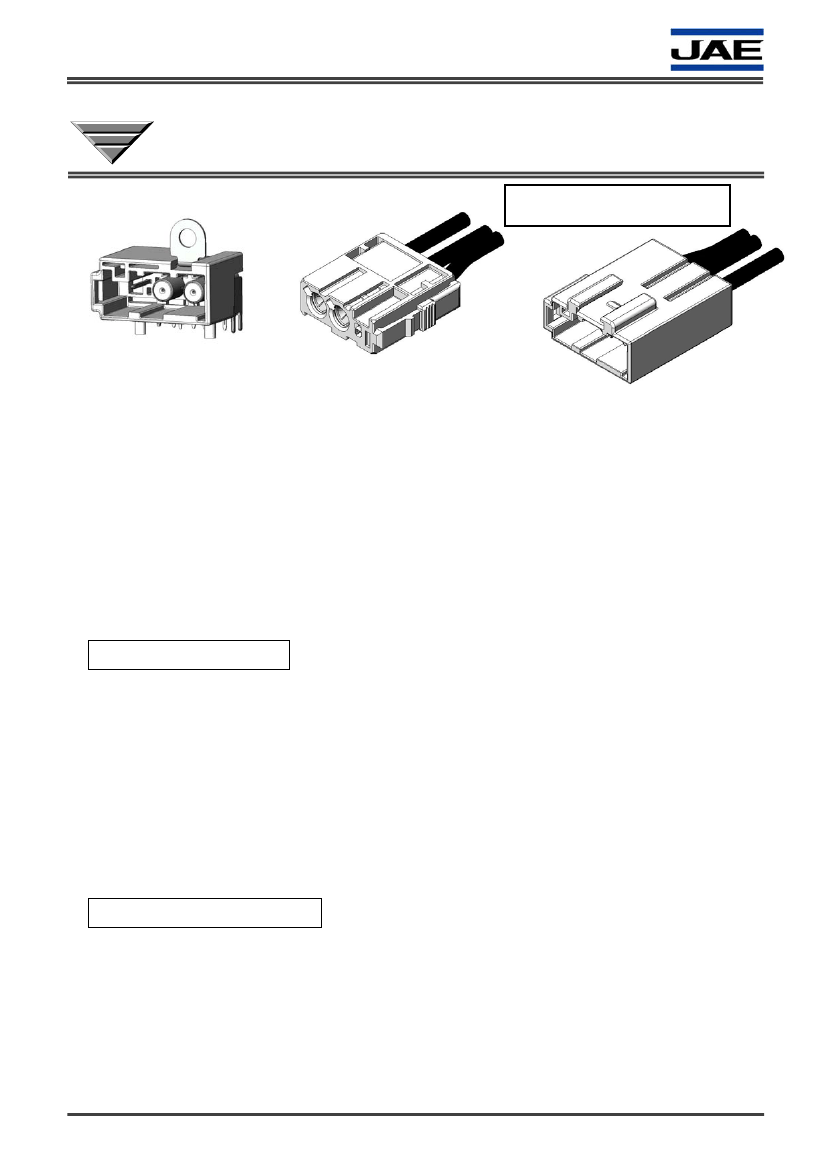

CE2 Series

RoHS Compliant

Board Connector

Cable Connector

Relay Connector

JAE has developed the CE2 Series small coaxial connector for automotive antenna

applications.

It is designed for an antenna with frequency up to 1GHz for terrestrial digital media

broadcasting, car audio, and car navigation.

The CE2 is available with one or two contact positions and a terminal for power.

Two types of metal bracket shapes are available for the board connector.

It is a rugged product with reinforced terminal pulling endurance and improved noise

resistance.

Features

Applicable frequency range up to 1GHz.

Compact type available in several combinations of position and variations,

including two types of bracket shapes (board connector) for screw fixing to panel.

Reinforced-type coaxial connector that endures pulling strength over 100N.

Noise resistance characteristic improved by outer terminal that covers entire cable

core area.

Meets the performance required for an automotive connector.

General Specifications

No. of Contacts: 1, 2 pos.

(each available with terminal for power)

Applicable Frequency: DC to 1GHz

Characteristic Impedance: 75 ohm

VSWR: 1.5 max.

Insertion Loss: 0.3 dB max.

Dielectric Withstanding Voltage:

AC1000Vr.m.s. (per minute)

Insulation Resistance: 100M ohm min.

Applicable Cable: EM-1.5CS-QFBE

or 1.5C-2V equivalent coaxial connector

1/9
