IC191-0562-003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> IC191-0562-003

IC191-0562-003: DescriptionIC & component sockets 56pin tsop burn-in skt 0.50 pitch; CategoryThe connector; File Size114KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

IC191-0562-003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IC191-0562-003	-	-	View	Buy Now

IC191-0562-003 Overview

IC & component sockets 56pin tsop burn-in skt 0.50 pitch

IC191-0562-003 Parametric

Parameter Name	Attribute value
Manufacture	Yamaichi Electronics
Product Category	IC & Component Sockets
RoHS	Yes
Pitch	0.5 mm
Number of Positions	56
Contact Plating	Gold
Mounting Style	-
Termination Style	SMD
Operating Temperature Range	- 40 C to + 170 C

Preview

Download Datasheet

View All

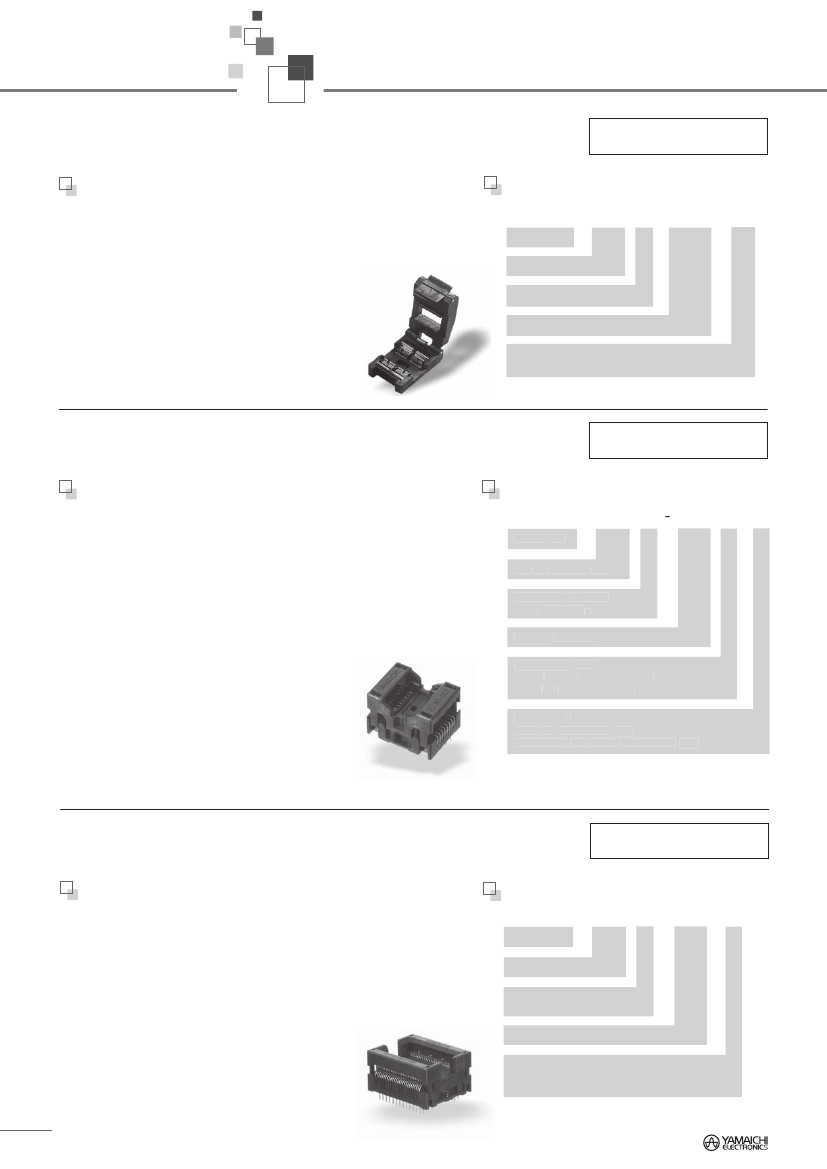

SMT Devices

Series IC51 (Clamshell)

SOP, TSOP Type I & II

Specifications

Series Overview

*SOP (Small Outline Packages, Gullwing Leads)

*SOP variations e.g. TSSOP...

0.4 to 1.27mm Pitch

Part Number (Details)

Insulation Resistance:

1,000MΩ min. at 500V DC

Dielectric Withstanding Voltage: 700V AC for 1 minute

Contact Resistance:

30mΩ max. at 10mA/20mV max.

Operating Temperature Range:

–40°C to +150°C (for type PSF)

–55°C to +170°C (for type PES & PEI)

Mating Cycles:

10,000 insertions min.

IC51

Series No.

028

334-1

No. of Contact Pins

No. of Sides with Contacts

Design Number

MF= Flanged

Unmarked = Not Flanged

Materials and Finish

Housing: Polyetherimide (PEI), glass-filled

Contacts: Beryllium Copper (BeCu)

Plating: Gold over Nickel

Series IC189 (Open Top)

SOP, TSOP Type I & II

Specifications

1,000MΩ min. at 100V DC, pitch 0.4, 0.5

1,000MΩ min. at 500V DC, pitch 0.65, 0.8,1.27

Dielectric Withstanding Voltage: 100V AC for 1 minute, pitch 0.4, 0.5

500V AC for 1 minute, pitch 0.65

700V AC for 1 minute, pitch 0.8, 1.27

Contact Resistance:

30mΩ max. at 10mA/20mV max.

Operating Temperature Range: –40°C to +150°C

Mating Cycles:

10,000 insertions

Contact Force:

20g to 80g per pin

Insulation Resistance:

0.4 to 1.27mm Pitch

Part Number (Details)

IC189

Series No.

016

019

0 9 *

No. of Contact Pins

Number of Sides

with Contacts

Design Number

Positioning Pin:

N = Without Positioning Pin

P = With Positioning Pin

Protection Key**

K = With Protection Key

Unmarked = Without Protection Key

**Protection Key: Prevents IC from releasing during transportation

Materials and Finish

Housing: Polysulphone (PSF), glass-filled

Polyethersulphone (PES), glass-filled

Polyetherimide (PEI), glass-filled

Contacts: Beryllium Copper (BeCu)

Plating: Gold over Nickel

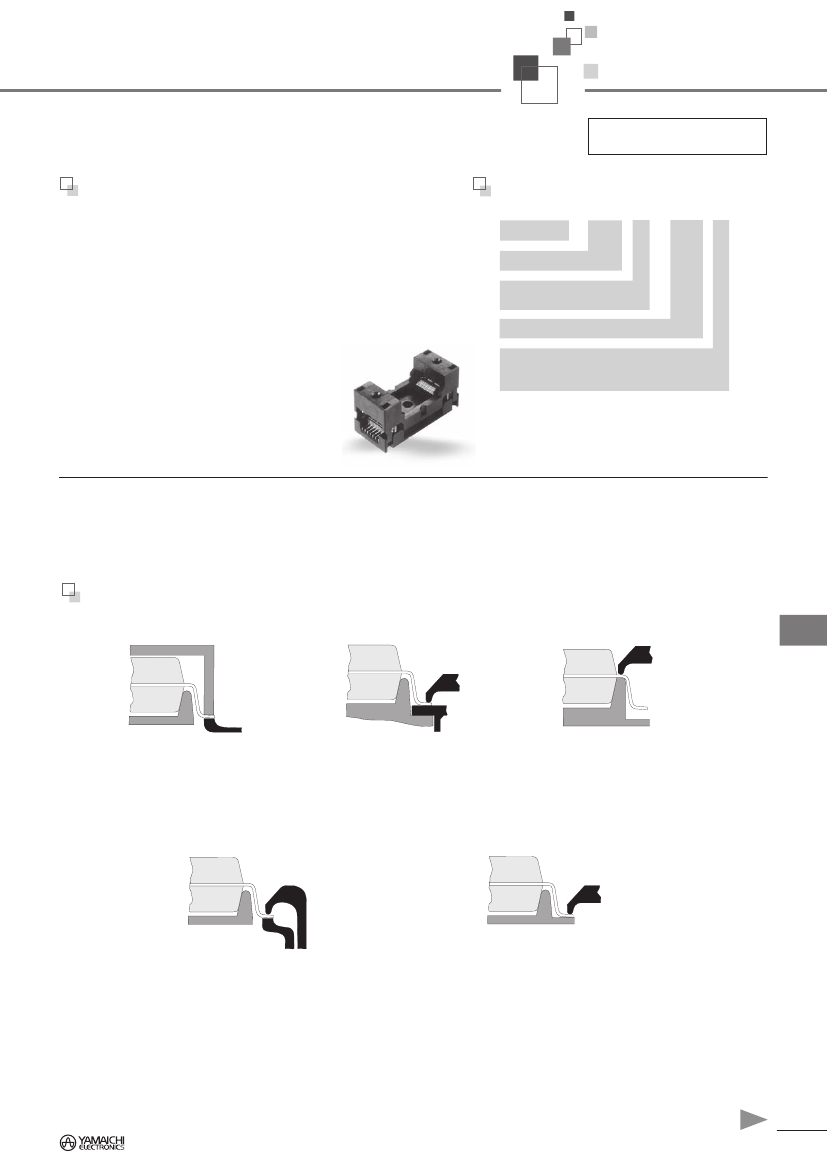

Series IC235 (Open Top)

SOP, TSOP Type II

Specifications

Insulation Resistance:

Dielectric Withstanding Voltage:

Contact Resistance:

Operating Temperature Range:

Mating Cycles:

Contact Force:

1,000MΩ min. at 500V DC

700V AC for 1 minute

30mΩ max. at 10mA/20mV max.

–40°C to +150°C

10,000 insertions min.

20g to 80g per pin

0.8 and 1.27mm Pitch

Part Number (Details)

IC235

Series No.

020

201

No. of Contact Pins

Number of Sides

with Contacts

Design Number

Positioning Pin:

N = Without Positioning Pin

P = With Positioning Pin

Materials and Finish

Housing: Polyetherimide (PEI), glass-filled

Contacts: Beryllium Copper (BeCu)

Plating: Gold over Nickel

Test Solutions

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

IC191-0562-003 Related Products

	IC191-0562-003	IC191-0482-004	IC201-0804-014	IC189-0162-019	IC51-0162-1035	IC51-0162-1042	IC51-0162-778	IC51-0202-779	IC189-0282-042
Description	IC & component sockets 56pin tsop burn-in skt 0.50 pitch	IC & component sockets 48pin tsop burn-in skt 0.50 pitch	IC & component sockets 80 pin qfp 0.50mm pitch	IC & component sockets 16pin sop burn-in skt 1.27 pitch	IC & component sockets 16pin sop burn-in skt 1.27 pitch	IC & component sockets 16 pin sop 1.27 MM pitch	IC & component sockets 16 pin tsop 0.65 MM pitch	IC & component sockets 20 pin sop 0.65 MM pitch	IC & component sockets 28 pin sop 1.27mm pitch
Manufacture	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics
Product Category	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pitch	0.5 mm	0.5 mm	0.5 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm
Number of Positions	56	48	80	16	16	16	16	20	28
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Termination Style	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Operating Temperature Range	- 40 C to + 170 C	- 40 C to + 170 C	- 40 C to + 170 C	- 40 C to + 150 C	- 55 C to + 170 C	- 55 C to + 170 C	- 55 C to + 170 C	- 55 C to + 170 C	- 40 C to + 150 C
Contact Material	-	-	Beryllium Coppe	-	-	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
