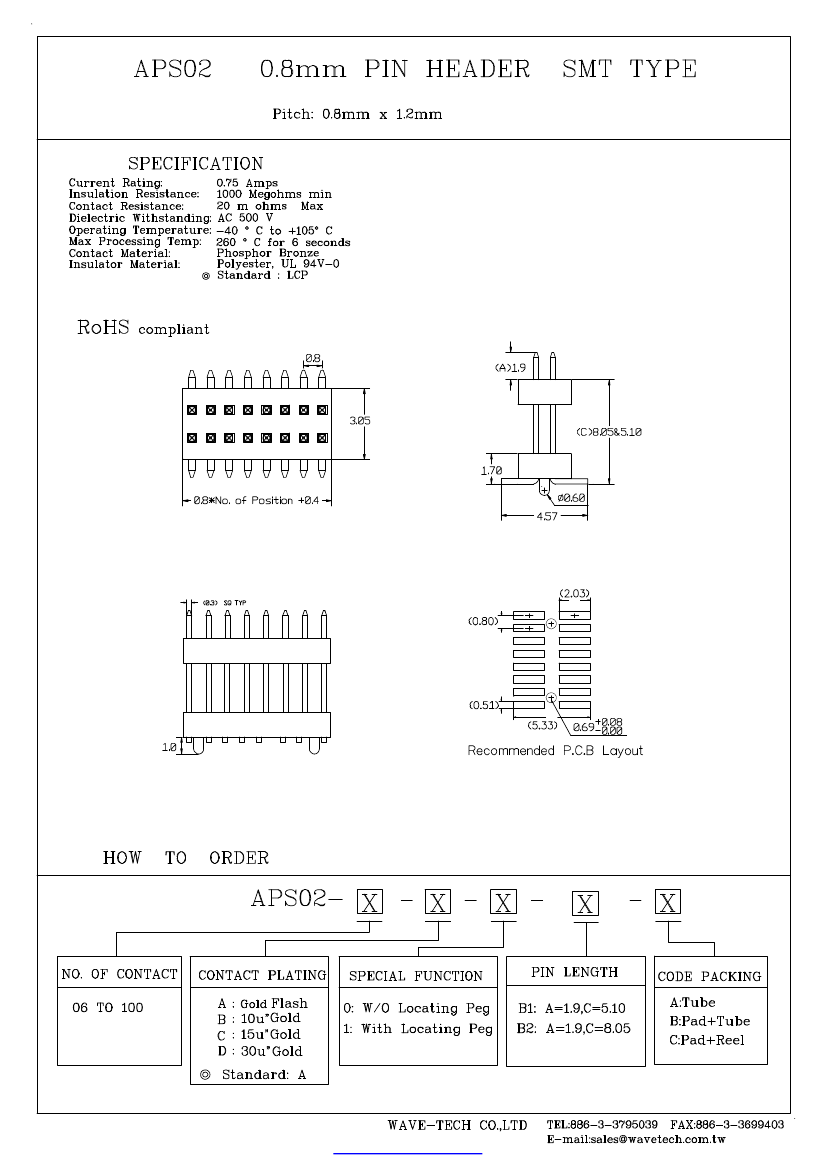

APS02-92-A-0-B2-C datasheet, PDF

APS02-92-A-0-B2-C: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerWave Tech Co., Ltd.

Download Datasheet Parametric View All

APS02-92-A-0-B2-C Overview

Board Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle

Parameter Name	Attribute value
Objectid	1166475494
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT,PAD+REEL PKG
body width	0.12 inch
subject depth	0.317 inch
body length	1.465 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	APS02
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	FLASH inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	92
