EB15E2K2H-2.822375MTR

Description
CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT
CategoryPassive components    oscillator
File Size802KB,11 Pages
ManufacturerECLIPTEK
Websitehttp://www.ecliptek.com
Environmental Compliance
Download Datasheet Parametric View All

EB15E2K2H-2.822375MTR Overview

CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT

EB15E2K2H-2.822375MTR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7039711229
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time5 ns
Frequency Adjustment - MechanicalNO
frequency stability20%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency2.822375 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load15 pF

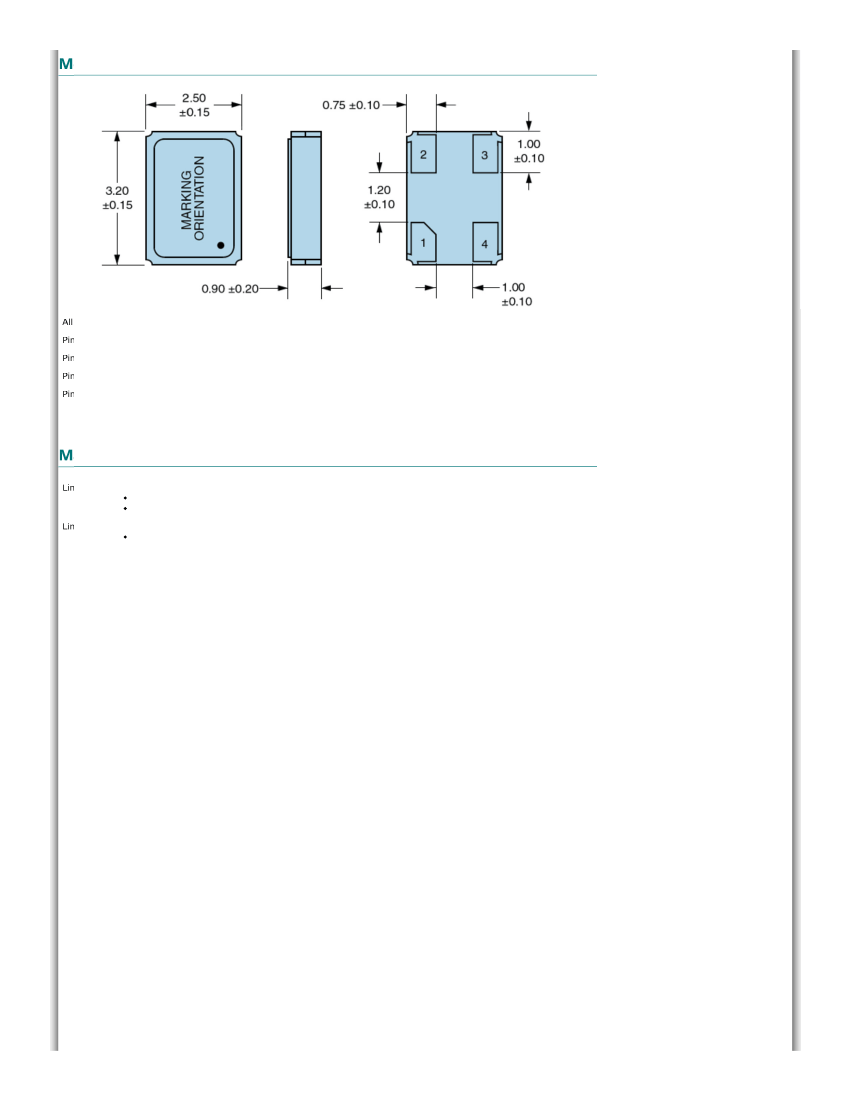

physical size3.2mm x 2.5mm x 0.9mm
longest rise time5 ns
Maximum supply voltage2.625 V
Minimum supply voltage2.375 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceNICKEL GOLD
Ecliptek | EB15E2 Series Oscillator
http://www.ecliptek.com/oscillators/EB15E2/
Log On
| 714-433-1200 |
Email Customer Support
Home
Products
Quick Quote
My Parts List
Site Map
Contact Us
EB15E2 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision O 12/05/2014
Electrical Specifications
Nominal Frequency
1.024MHz to 66.6666MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, Shock, and
Vibration)
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
-20°C to +70°C
-40°C to +85°C
2.5V
DC
±5%
Click to Open Input Current Table
I
OH
= -4mA
90% of V
DD
Minimum
I
OL
= +4mA
10% of V
DD
Maximum
Measured at 50% of waveform
50 ±5(%)
Click to Open Rise/Fall Time Table
15pF Maximum
CMOS
-55°C to +125°C
Tri-State (High Impedance)
80% of V
DD
Minimum or No Connect to Enable Output, 20% of V
DD
Maximum to Disable Output (High Impedance)
Fj = 12kHz to 20MHz
1pSec Maximum
10mSec Maximum
Disabled Output: High Impedance
10 A Maximum
Operating Temperature Range
Supply Voltage (V
DD
)
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Storage Temperature Range
Pin 1 Connection
Tri-State Input Voltage (V
IH
and V
IL
)
RMS Phase Jitter
Start Up Time
Standby Current
1 of 11
28-Jan-2016 12:57 PM
